FN-LBAS-IA1

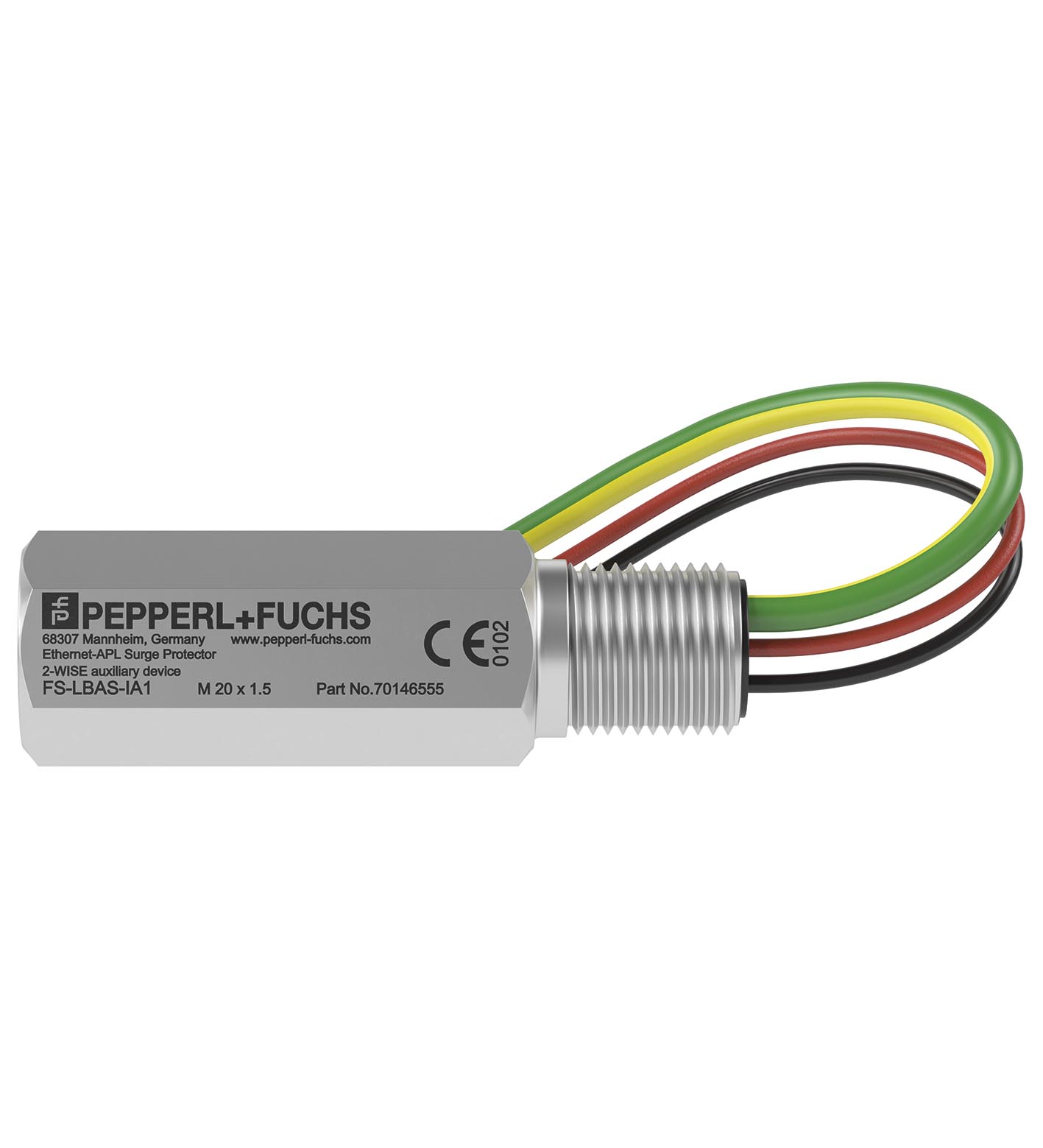

FN-LBAS-IA1 Surge ProtectorFieldConnex®

订货号: 70146514
产品分类: 附件

Surge protector, Ethernet-APL, field mounting, Ex ia, Ex d, Ex e, 1/2" NPT thread

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Design / Mounting	Outside installation
Installation in hazardous area	Zone 1
Interface type	Ethernet-APL auxiliary device
Rated voltage	30 V
Rated current	500 mA
Impulse rating	2 kV/1 kA (category C1) per line 5 kV/2,5 kA (category C2) per line 0,5 kA (category D1) per line
Impulse discharge current (10/350 µs)	0.5 kA per line
Nominal discharge current (8/20 µs)	In
per line2.5 kAtotal5 kA	per line2.5 kAtotal5 kA
Max. surge current (8/20 µs)	5 kA overstressed fault mode 1 acc. to IEC 61643-21
Voltage protection level	Up
Line/Earthmax. 1800 V C1 , 1 kA per linemax. 2100 V C2 , 2.5 kA per linemax. 50 V C3 , 50 A per linemax. 1400 V B2 , 50 A per line	Line/Earthmax. 1800 V C1 , 1 kA per linemax. 2100 V C2 , 2.5 kA per linemax. 50 V C3 , 50 A per linemax. 1400 V B2 , 50 A per line
per line	2.5 kA
total	5 kA
Line/Earth	max. 1800 V C1 , 1 kA per linemax. 2100 V C2 , 2.5 kA per linemax. 50 V C3 , 50 A per linemax. 1400 V B2 , 50 A per line
Degree of protection	IEC/EN 60529
Climatic conditions	IEC 60721
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Surge protection	IEC 61643-21
Ethernet	Ethernet-APL ,IEEE 802.3 for 10BASE-T1L
Ambient temperature	-50 ... 80 °C (-58 ... 176 °F)
Storage temperature	-50 ... 90 °C (-58 ... 194 °F)
Shock resistance	15 g 11 ms
Vibration resistance	1 g , 10 ... 150 Hz
Connection type	wire ends APL + red , APL - black , protective conductor (PE) green/yellow
Core cross section	APL +, APL - 0.8 mm2 , PE 1.3 mm2
Housing material	Stainless steel 1.4401/316
Degree of protection	IP67
Mass	200 g

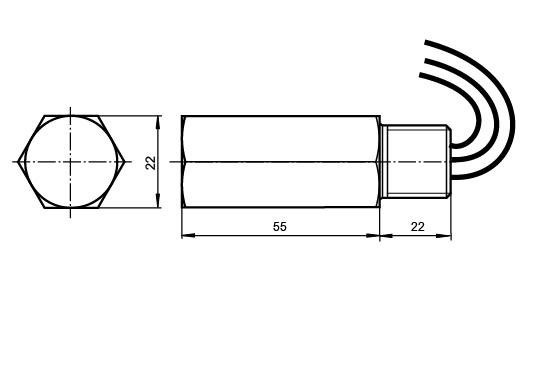

Mounting	NPT1/2 thread
EU-type examination certificate	TÜV 22 ATEX 8786 X
Marking2-WISE auxiliary deviceMarking ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l Mb ,[exsign] ll 2 G Ex db eb mb IIC T6 Gb ,[exsign] l M2 Ex eb mb I Mb ,[exsign] lI 2 (1) G Ex db [ia Ga] IIC T6 GbVoltageUi30 VCurrentIi500 mAInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH	Marking2-WISE auxiliary deviceMarking ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l Mb ,[exsign] ll 2 G Ex db eb mb IIC T6 Gb ,[exsign] l M2 Ex eb mb I Mb ,[exsign] lI 2 (1) G Ex db [ia Ga] IIC T6 GbVoltageUi30 VCurrentIi500 mAInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2018 ,EN 60079-7:2015+A1:2018 ,EN 60079-11:2012 ,EN 60079-18:2015 ,EN 60079-1:2014 ,IEC TS 60079-47:2021	Directive 2014/34/EUEN 60079-0:2018 ,EN 60079-7:2015+A1:2018 ,EN 60079-11:2012 ,EN 60079-18:2015 ,EN 60079-1:2014 ,IEC TS 60079-47:2021
Marking	2-WISE auxiliary device
Marking	ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l Mb ,[exsign] ll 2 G Ex db eb mb IIC T6 Gb ,[exsign] l M2 Ex eb mb I Mb ,[exsign] lI 2 (1) G Ex db [ia Ga] IIC T6 Gb
Voltage	30 V
Current	500 mA
Internal capacitance	negligible 0 nF
Internal inductance	negligible 0 µH
Directive 2014/34/EU	EN 60079-0:2018 ,EN 60079-7:2015+A1:2018 ,EN 60079-11:2012 ,EN 60079-18:2015 ,EN 60079-1:2014 ,IEC TS 60079-47:2021
IECEx approval	IECEx TUR 22.0017X
Approved forEx ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb ,Ex db eb mb IIC T6 Gb ,Ex db eb mb I Mb ,Ex db [ia Ga] IIC T6 Gb	Approved forEx ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb ,Ex db eb mb IIC T6 Gb ,Ex db eb mb I Mb ,Ex db [ia Ga] IIC T6 Gb
Approved for	Ex ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb ,Ex db eb mb IIC T6 Gb ,Ex db eb mb I Mb ,Ex db [ia Ga] IIC T6 Gb
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
