TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 1500 V DC / 1000 V AC max. |
|---|---|
| Operating current | 1600 A max. |
| Enclosure range | details of Ex e enclosure see datasheet Control Stations FXLS* |
| Enclosure cover | see data table |
| Cover fixing | Cover fixing |
| Screwssee data table | Screwssee data table |
| Cover seal | none, O-ring for IP66/67 |
| Flamepath grease | Greasil MS4 or NEVER SEEZ Marine Grade , GUB petroleum jelly |
| Degree of protection | IP66 (IP66/IP67 with O-ring) |
| Material | Material |
| Enclosurealuminum alloy AISI 316L, (1.4404) stainless steelGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey) or shot peenedO-Ringsilicone | Enclosurealuminum alloy AISI 316L, (1.4404) stainless steelGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey) or shot peenedO-Ringsilicone |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |

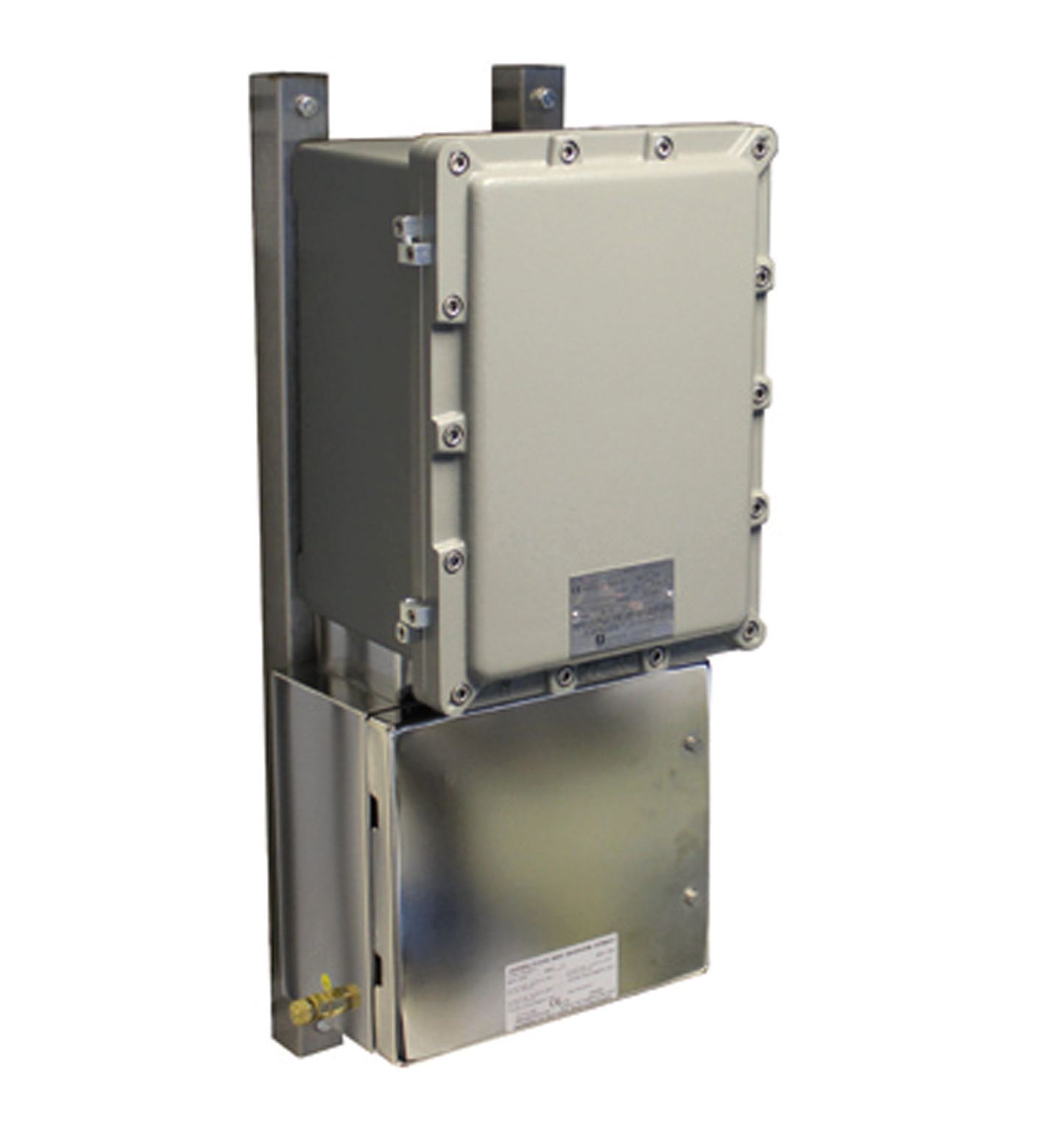

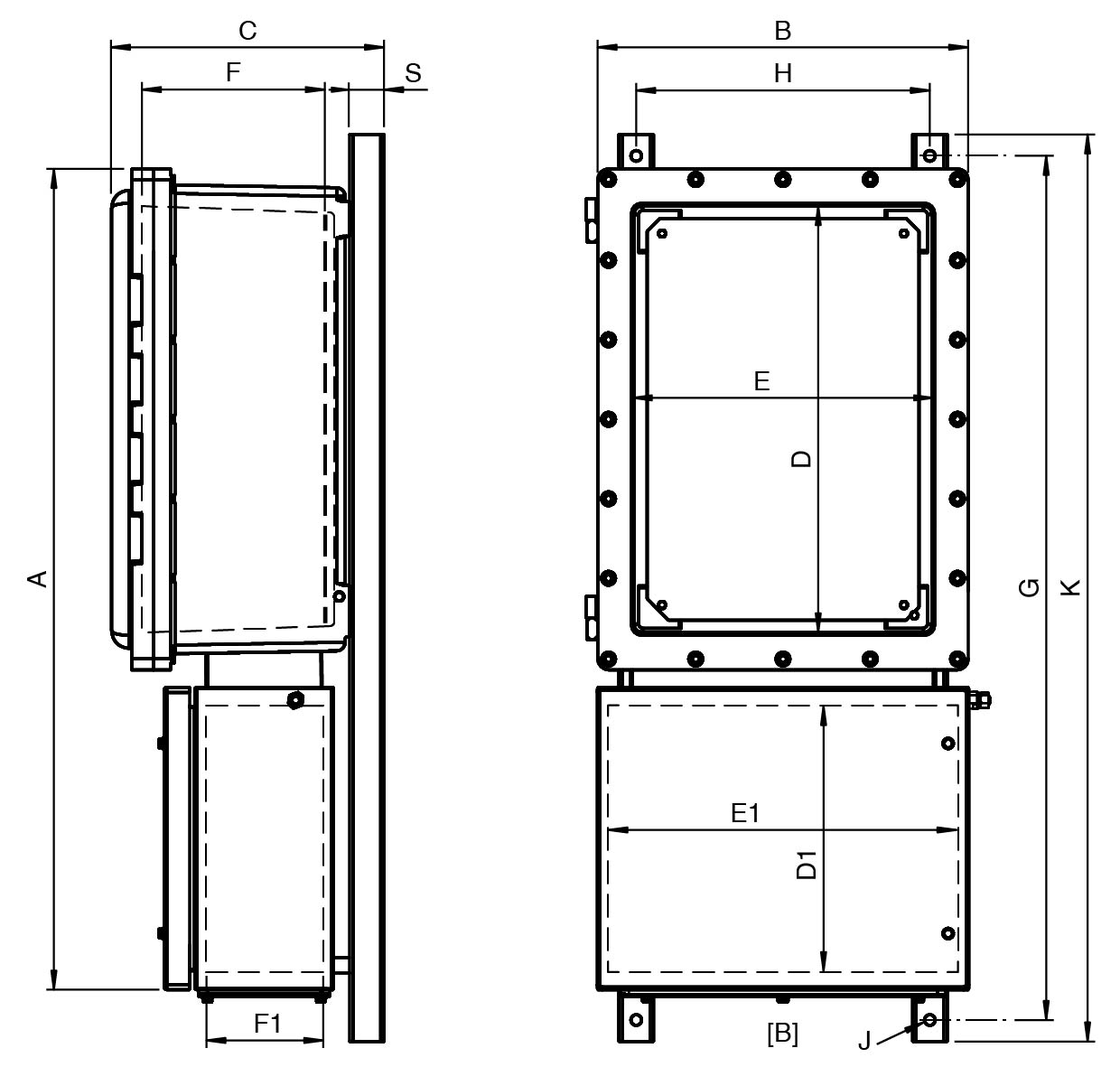

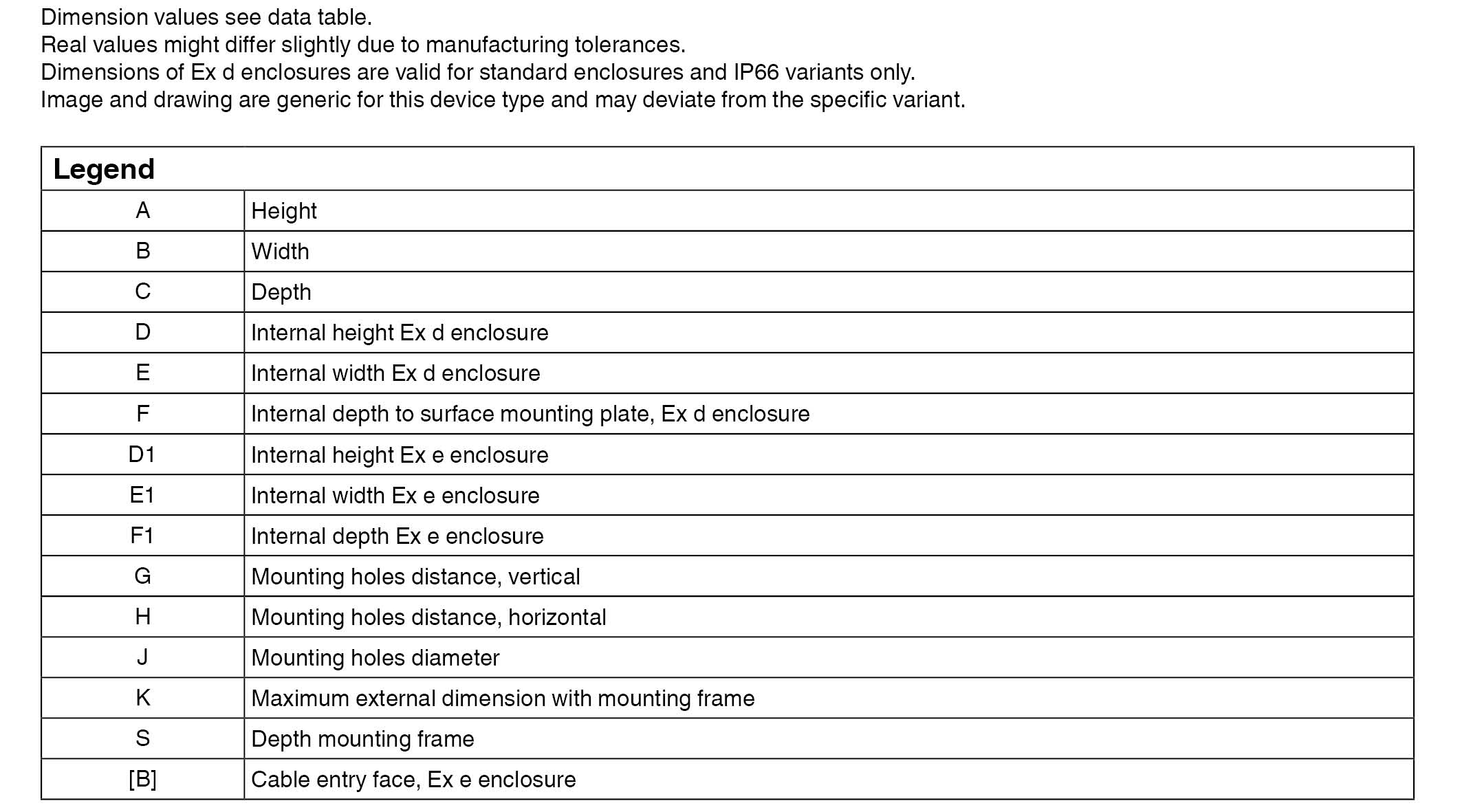

| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances |
| Mounting | see data table |
| Grounding | M10 internal/external brass grounding bolt through enclosure body |
| Screws | see data table |
| Enclosure | aluminum alloy AISI 316L, (1.4404) stainless steel |
| Glass | thermo-resistant tempered glass |
| Finish | epoxy coated RAL 7005 (grey) or shot peened |
| O-Ring | silicone |
| Ambient temperature | -50 ... 60 °C (-58 ... 140 °F) depending on integrated components |
| EU-type examination certificate | see data table |
| Marking II 2 GDEJB enclosures: Ex db IIB+H2 Gb, Ex tb IIIC DbGUB enclosures: Ex db IIC Gb, Ex tb IIIC DbFS* Termination and Control Stations:Ex de IIC T6, T5, T4 GbEx ib IIC T6, T5, T4 GbEx de ib IIC T6, T5, T4 GbEx tb IIIC T80 °C, T95 °C, T130 °C Db Maximum power dissipationsee data table maximum power dissipation at T4/+40 °C enclosure without window | Marking II 2 GDEJB enclosures: Ex db IIB+H2 Gb, Ex tb IIIC DbGUB enclosures: Ex db IIC Gb, Ex tb IIIC DbFS* Termination and Control Stations:Ex de IIC T6, T5, T4 GbEx ib IIC T6, T5, T4 GbEx de ib IIC T6, T5, T4 GbEx tb IIIC T80 °C, T95 °C, T130 °C Db Maximum power dissipationsee data table maximum power dissipation at T4/+40 °C enclosure without window |
| Marking | II 2 GDEJB enclosures: Ex db IIB+H2 Gb, Ex tb IIIC DbGUB enclosures: Ex db IIC Gb, Ex tb IIIC DbFS* Termination and Control Stations:Ex de IIC T6, T5, T4 GbEx ib IIC T6, T5, T4 GbEx de ib IIC T6, T5, T4 GbEx tb IIIC T80 °C, T95 °C, T130 °C Db |
| Maximum power dissipation | see data table maximum power dissipation at T4/+40 °C enclosure without window |
| IECEx approval | see data table |
| Further approvals | available on request |
| Degree of protection | EN60529 |
| CE marking | 0080 or 0102, see type label |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
