TECHNICAL DATA
规格参数
General specifications

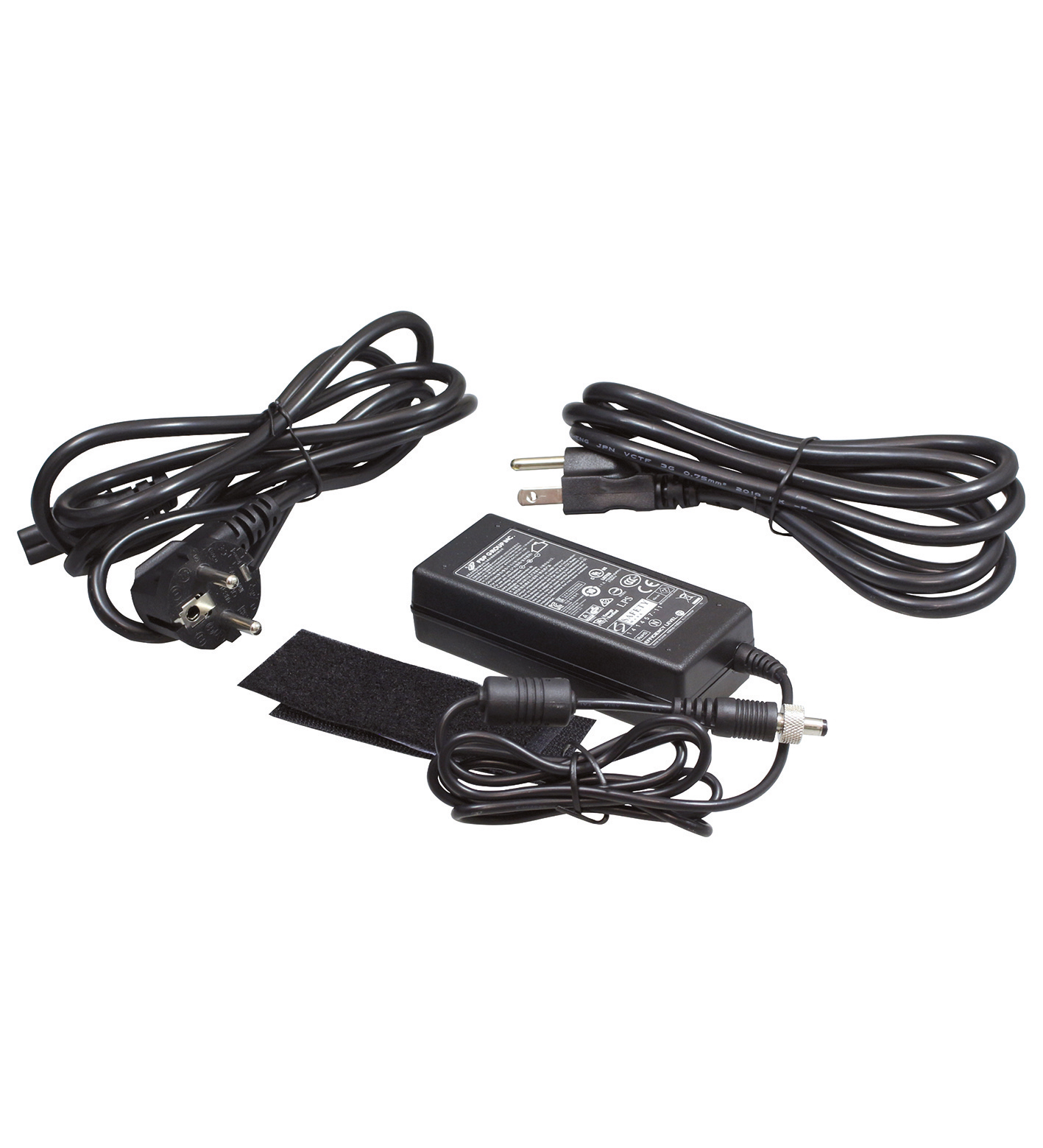

| Type | Switching power supply, class I |
|---|---|
| Corresponds to | FSP065-RBBN3 from manufacturer FSP Group Inc. |
| MTBF | 100000 h confidence level 90% at 25 °C |
| Input voltage | 100 ... 240 V AC |
| Input current | 1.5 A |
| Input frequency | 50 ... 60 Hz |
| Output current | 3.42 A (at typical voltage, 0 ... 40 °C) |
| Output voltage | 19 V (18.05 ... 19.95 V DC) |
| Power | 65 W (at typical voltage, 0 ... 40 °C) |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 55032:2012+AC:2013 EN 55024:2010 IEC 61000-3-2:2014 IEC 61000-3-3:2013 | Directive 2014/30/EUEN 55032:2012+AC:2013 EN 55024:2010 IEC 61000-3-2:2014 IEC 61000-3-3:2013 |
| Low voltage | Low voltage |
| Directive 2014/35/EUIEC 60950-1:2006+A11+A1+A12+A2 IEC 62368-1:2014 | Directive 2014/35/EUIEC 60950-1:2006+A11+A1+A12+A2 IEC 62368-1:2014 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN 50581:2012 | Directive 2011/65/EU (RoHS)EN 50581:2012 |
| Directive 2014/30/EU | EN 55032:2012+AC:2013 EN 55024:2010 IEC 61000-3-2:2014 IEC 61000-3-3:2013 |
| Directive 2014/35/EU | IEC 60950-1:2006+A11+A1+A12+A2 IEC 62368-1:2014 |
| Directive 2011/65/EU (RoHS) | EN 50581:2012 |
| Operating temperature | -20 ... 60 °C (-4 ... 140 °F) 0 ... 40 °C, 100 % load50 °C, 70 % load60 °C, 60 % load |
| Storage temperature | -20 ... 80 °C (-4 ... 176 °F) |
| Relative humidity | operating: 20 ... 80 % storage: 10 ... 90 % |
| Altitude | 5000 m above MSL |
| Connection | Input: Connection AC: C6, Class 1 Output: Connection DC: 5.5 / 2.5 DC jack, lockable |
| Dimensions | 108.3 mm x 46.3 mm x 30 mm (l x w x h) |
| Approved for | CE, FCC, UL/cUL listed, CCC, TÜV/GS , Australian GEMS regulation, IC, KCC, AS/NZS CISPR 32:2013, CISPR 32:2012, AS/NZS 60950.1:2015 (UL AUS and NZ), UL 62368-1, and CSA C22.2 No. 62368-1-14 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
