TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 1000 V AC max. |
|---|---|
| Operating current | application-specific |

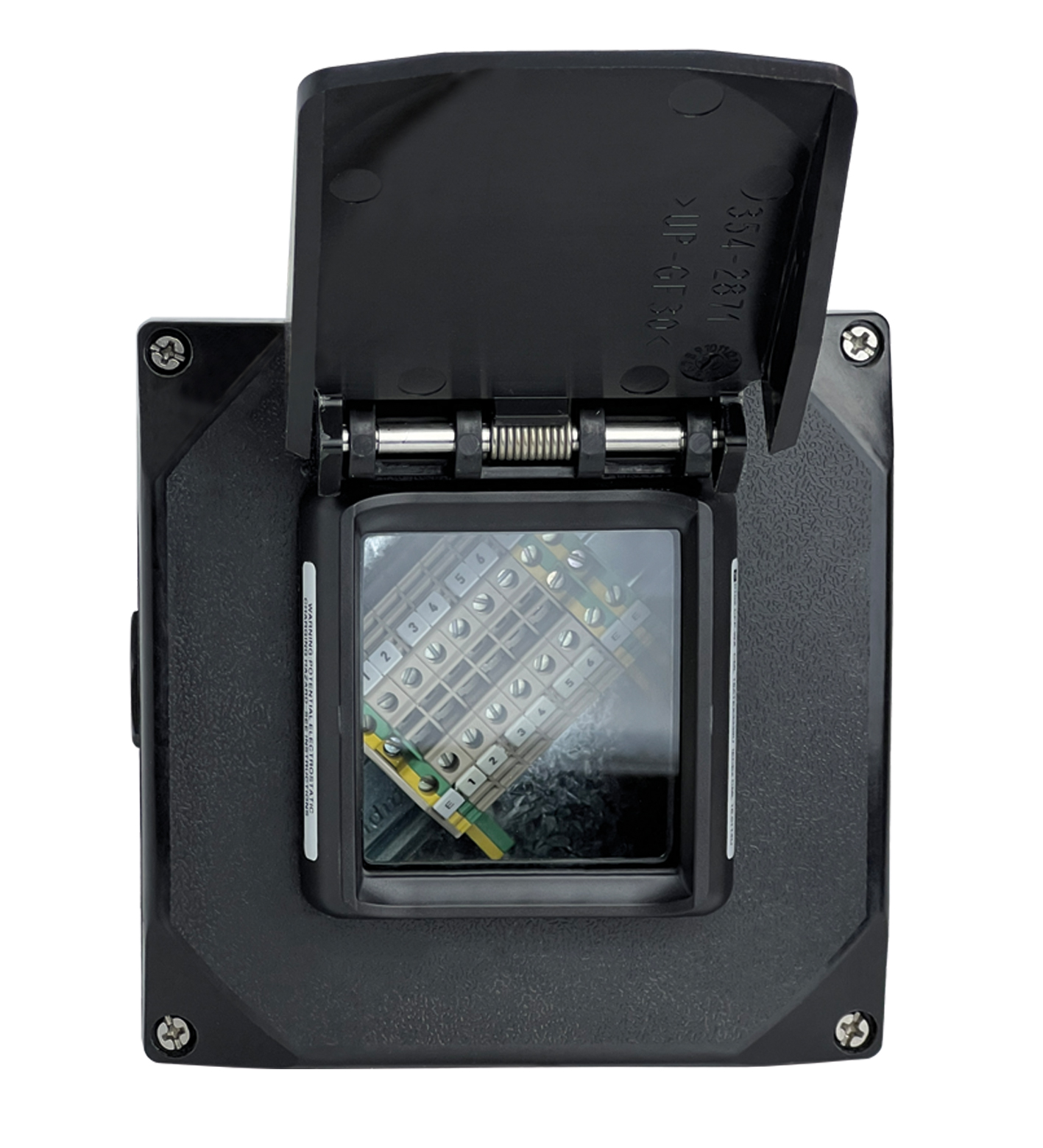

| Enclosure cover | fully detachable , window with flap , optional hinges |
| Cover fixing | see data table |
| Screwsstainless steel combination Phillips and slotted screw | Screwsstainless steel combination Phillips and slotted screw |
| Cover seal | foamed silicone |
| Degree of protection | IP66 |
| Cable entry | see data table |
| Number of cable entriessee data table | Number of cable entriessee data table |
| Terminal assembly | Terminal assembly |
| Number of railssee data tableTerminal typeStandard see PDF datasheet, other terminal types optionalNumber of terminals per railsee data table | Number of railssee data tableTerminal typeStandard see PDF datasheet, other terminal types optionalNumber of terminals per railsee data table |
| Material | Material |
| Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm or 5 mm brass optional | Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm or 5 mm brass optional |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Dimensions | see data table |
| Mounting | see data table |
| Grounding | none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt |
| Screws | stainless steel combination Phillips and slotted screw |
| Number of cable entries | see data table |
| Number of rails | see data table |
| Terminal type | Standard see PDF datasheet, other terminal types optional |
| Number of terminals per rail | see data table |
| Enclosure | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) |
| Finish | inherent color black |
| Grounding plate | 2 mm or 5 mm brass optional |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking II 2 GD Ex eb IIC T* Gb Ex ib IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +50 °C T4/T130 °C @ Ta +55 °C | Marking II 2 GD Ex eb IIC T* Gb Ex ib IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +50 °C T4/T130 °C @ Ta +55 °C |
| Marking | II 2 GD Ex eb IIC T* Gb Ex ib IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +50 °C T4/T130 °C @ Ta +55 °C |
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| Degree of protection | EN 60529 |
| CE marking | 0102 |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts grounding plate, brass mounting plate, stainless steel hinges, polyamide mounting block for DIN mounting rail, polyamide engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label |
