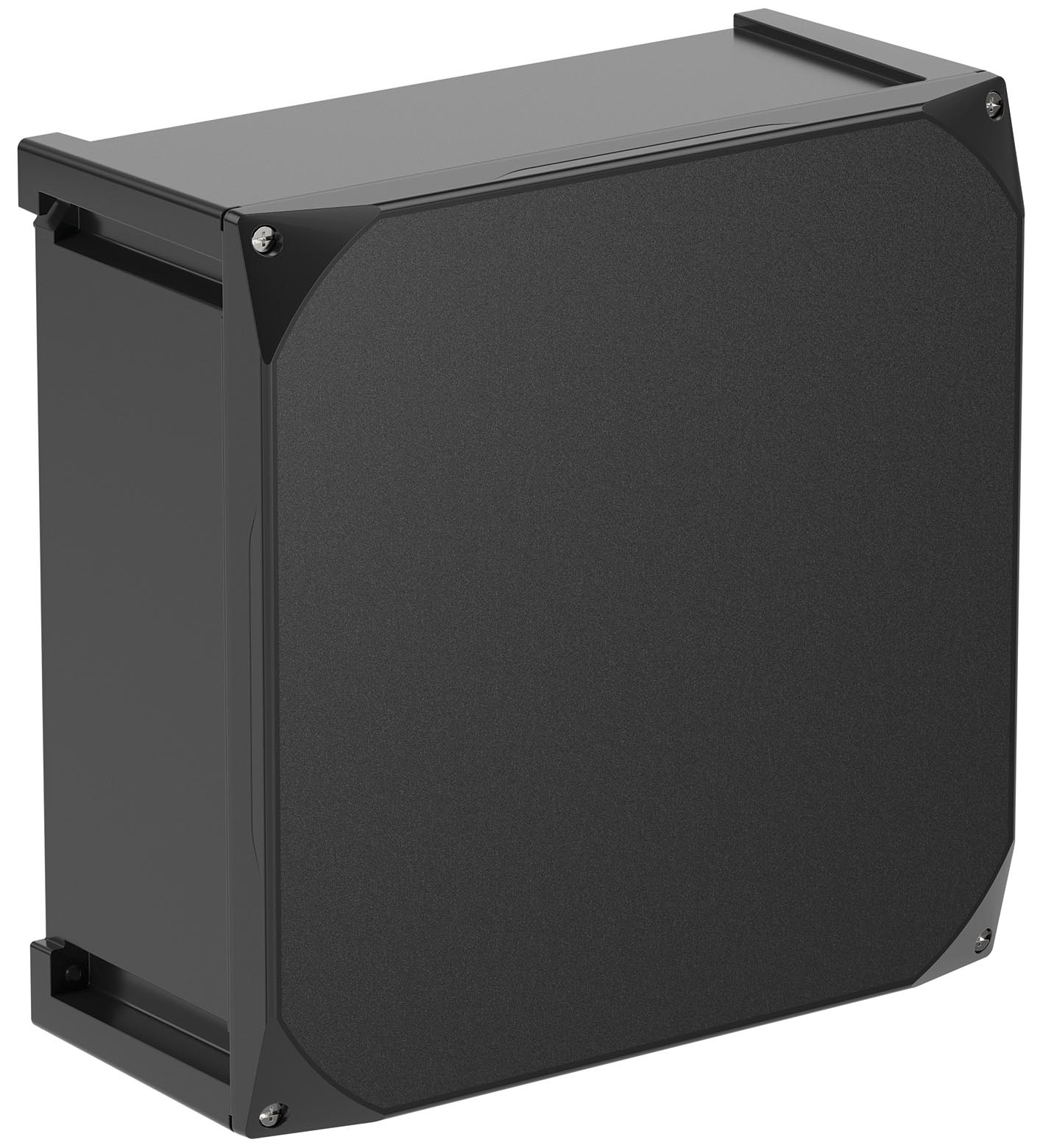

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 690 V AC / DC max. , depending on size for ATEX / IECEx |
|---|---|
| Operating current | 350 A max. , depending on size and certification |
| Enclosure cover | fully detachable , optional hinges |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw |
| Cover seal | foamed silicone |
| Degree of protection | IP66 , Type 4X |
| Cable entry | see data table |
| Number of cable entriessee data table | Number of cable entriessee data table |
| Terminal assembly | Terminal assembly |
| Number of railssee data tableTerminal typeStandard see PDF datasheet, other terminal types optionalNumber of terminals per railsee data table | Number of railssee data tableTerminal typeStandard see PDF datasheet, other terminal types optionalNumber of terminals per railsee data table |
| Material | Material |
| Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm brass optional | Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm brass optional |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Shock resistance | IK09 (from GR.18.18.10 and larger, IK09, IK10 apply) |

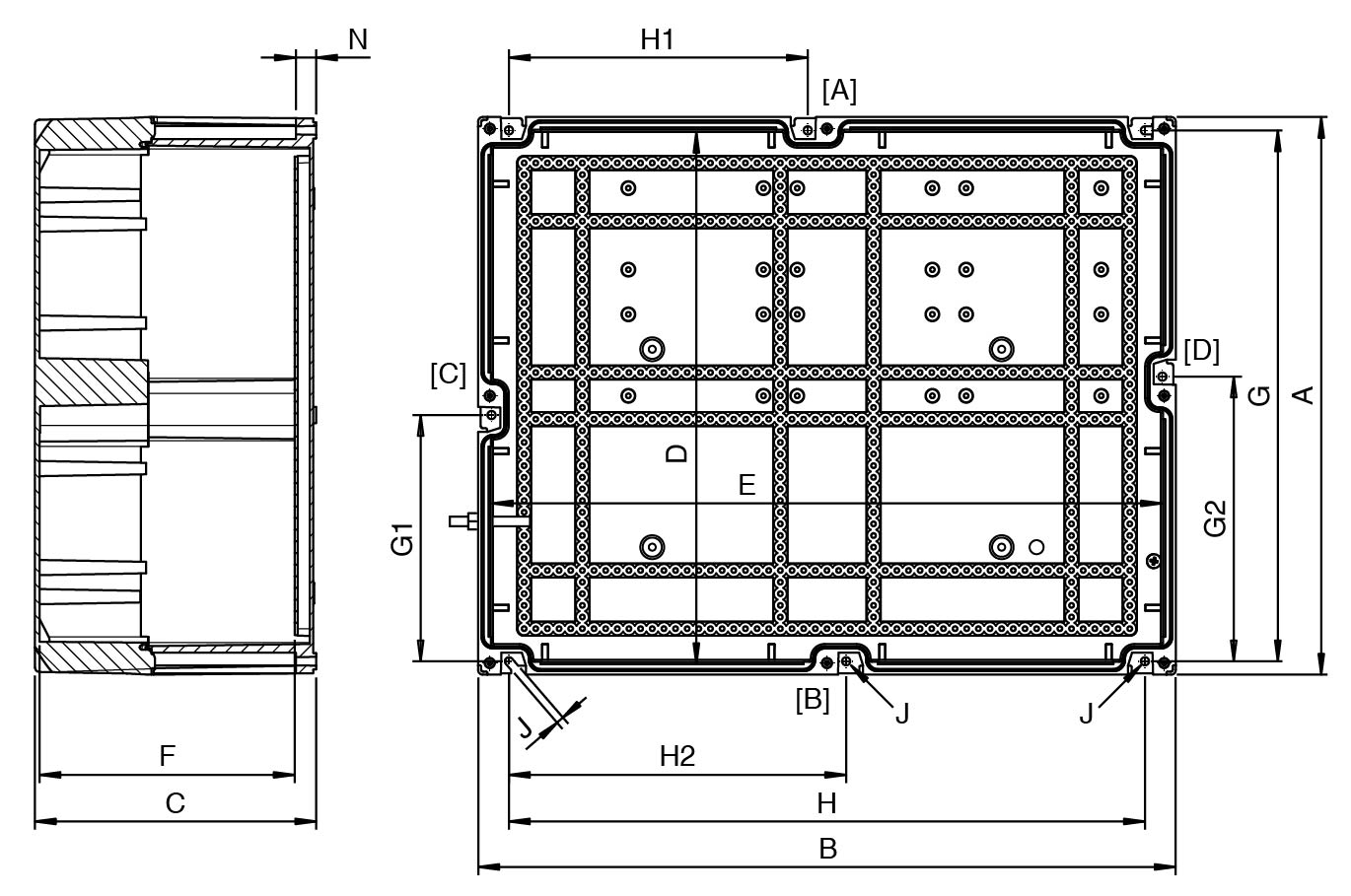

| Dimensions | see data table |
| Mounting | screws , see data table |
| Grounding | none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt |
| Number of cable entries | see data table |
| Number of rails | see data table |
| Terminal type | Standard see PDF datasheet, other terminal types optional |
| Number of terminals per rail | see data table |
| Enclosure | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) |
| Finish | inherent color black |
| Grounding plate | 2 mm brass optional |
| Ambient temperature | -60 ... 85 °C (-76 ... 185 °F) |
| EU-type examination certificate | CML 17 ATEX 3084U |
| Marking II 2 GD Ex eb IIC Gb Ex tb IIIC Db | Marking II 2 GD Ex eb IIC Gb Ex tb IIIC Db |
| Marking | II 2 GD Ex eb IIC Gb Ex tb IIIC Db |
| UL approval | UL approval |
| Approved forClass I and II, Division 2 Class I, Zone 2, Class II, Zone 22cULusE499269Ambient temperature-25 ... 40 °C (-13 ... 104 °F) | Approved forClass I and II, Division 2 Class I, Zone 2, Class II, Zone 22cULusE499269Ambient temperature-25 ... 40 °C (-13 ... 104 °F) |
| IECEx approval | IECEx CML 17.0039U |
| UKCA approval | CML 21 UKEX 3895U |
| INMETRO approval | DNV 24.0101U TÜV 19.1741U |
| IA approval | MASC S/18-1359U |
| Approved for | Class I and II, Division 2 Class I, Zone 2, Class II, Zone 22 |
| cULus | E499269 |
| Ambient temperature | -25 ... 40 °C (-13 ... 104 °F) |
| Degree of protection | EN60529 and UL 50 / UL 50E |
| Shock resistance | EN IEC 62262 |
| Order information | For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts grounding plate, brass mounting plate, stainless steel hinges, polyamide mounting block for DIN mounting rail, polyamide engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label |
