TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 1500 V DC / 1000 V AC max. |
|---|---|
| Operating current | recommended: 1600 A max. |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |

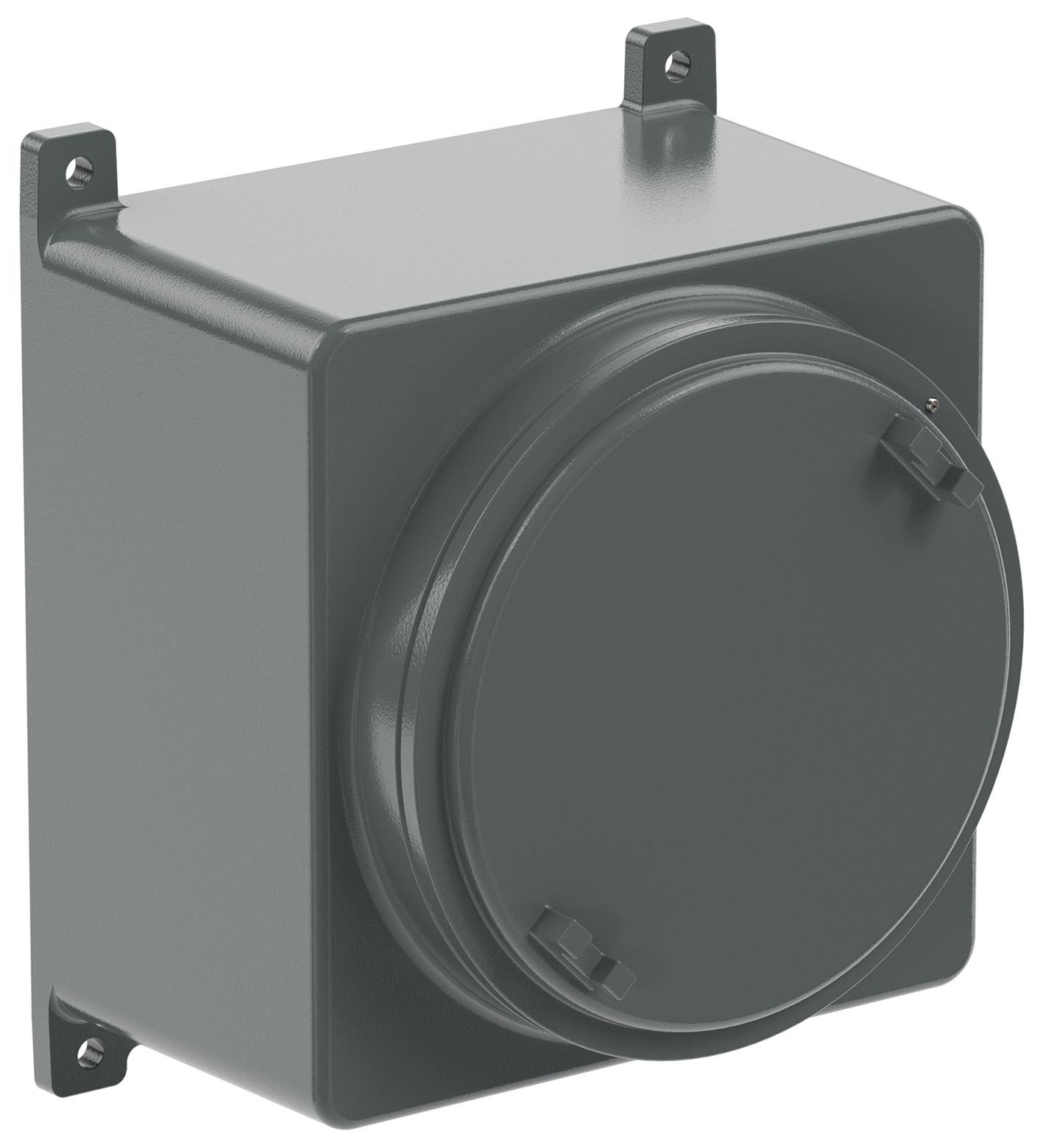

| Enclosure cover | threaded round cover |
| Cover fixing | flamepath thread |
| Cover seal | none, O-ring for IP66/67 |
| Degree of protection | IP66 (IP66/IP67 with O-ring) |
| Cable entry | see data table |
| Material | Material |
| Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey)O-Ringsilicone | Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey)O-Ringsilicone |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |

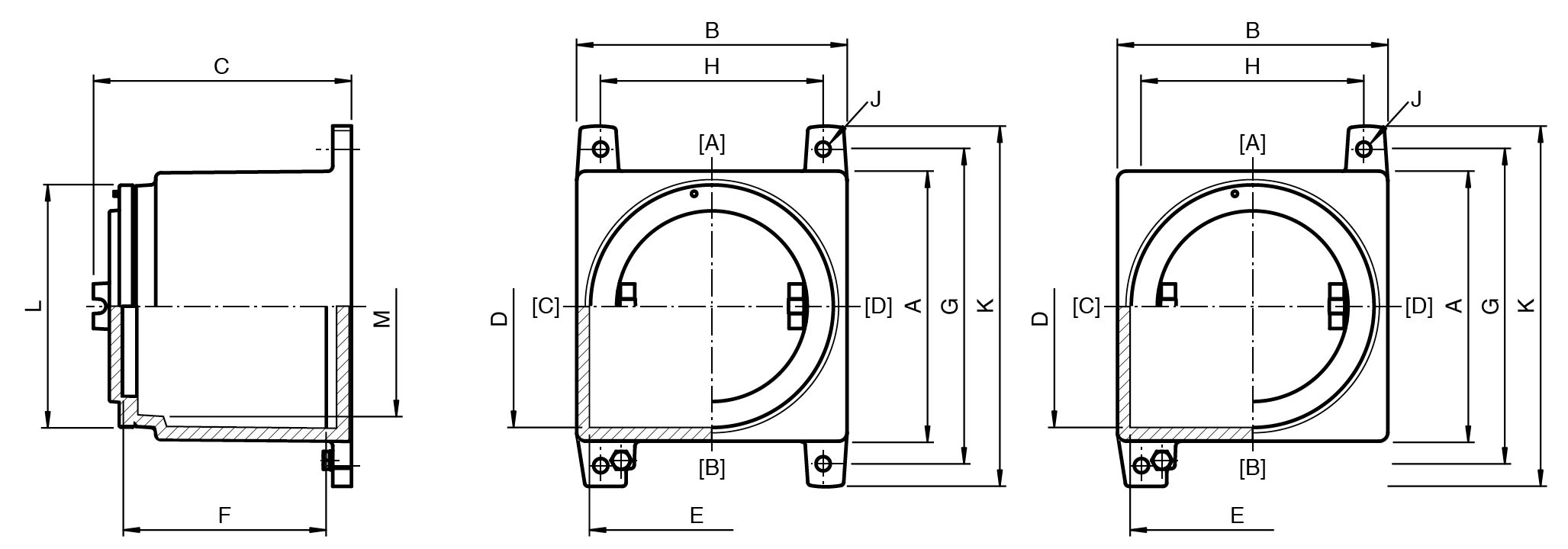

| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances |
| Mounting | see data table |
| Grounding | M6 external grounding points |
| Enclosure | aluminum alloy |
| Glass | thermo-resistant tempered glass |
| Finish | epoxy coated RAL 7005 (grey) |
| O-Ring | silicone |
| Ambient temperature | -60 ... 180 °C (-76 ... 356 °F) depending on integrated components |
| EU-type examination certificate | INERIS 14 ATEX 0035X INERIS 16 ATEX 9005U |
| Marking II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power lossMaximum power dissipationsee data table maximum power dissipation at T4/+40 °C | Marking II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power lossMaximum power dissipationsee data table maximum power dissipation at T4/+40 °C |
| Marking | II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss |
| Maximum power dissipation | see data table maximum power dissipation at T4/+40 °C |
| UL approval | UL approval |
| Approved forClass I, Division 1, Groups A, B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9cULusEmpty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30cETLusControl panels E5003368Ambient temperature-50 ... 60 °C (-58 ... 140 °F) | Approved forClass I, Division 1, Groups A, B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9cULusEmpty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30cETLusControl panels E5003368Ambient temperature-50 ... 60 °C (-58 ... 140 °F) |
| IECEx approval | IECEx INE 14.0042X IECEx INE 16.0051U |
| UKCA approval | CML 21 UKEX 21304X CML 21 UKEX 2976U |
| ECAS approval | 22-09-51658/E22-09-051730/NB0002 |
| CCoE approval | PESO A/P/HQ/KA/104/6018 (P558877) |
| CCC approval | 2023122303116246 |
| Further approvals | available on request |
| Approved for | Class I, Division 1, Groups A, B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9 |
| cULus | Empty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30 |
| cETLus | Control panels E5003368 |
| Ambient temperature | -50 ... 60 °C (-58 ... 140 °F) |
| Degree of protection | EN 60529 |
| CE marking | 2829 |
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
