TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 1500 V DC / 1000 V AC max. |
|---|---|
| Operating current | recommended: 1600 A max. |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | threaded round cover |
| Cover fixing | flamepath thread |
| Cover seal | none, O-ring for IP66/67 |
| Degree of protection | IP66 (IP66/IP67 with O-ring) |
| Material | Material |
| Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey)O-Ringsilicone | Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey)O-Ringsilicone |
| Mass | 21 kg |

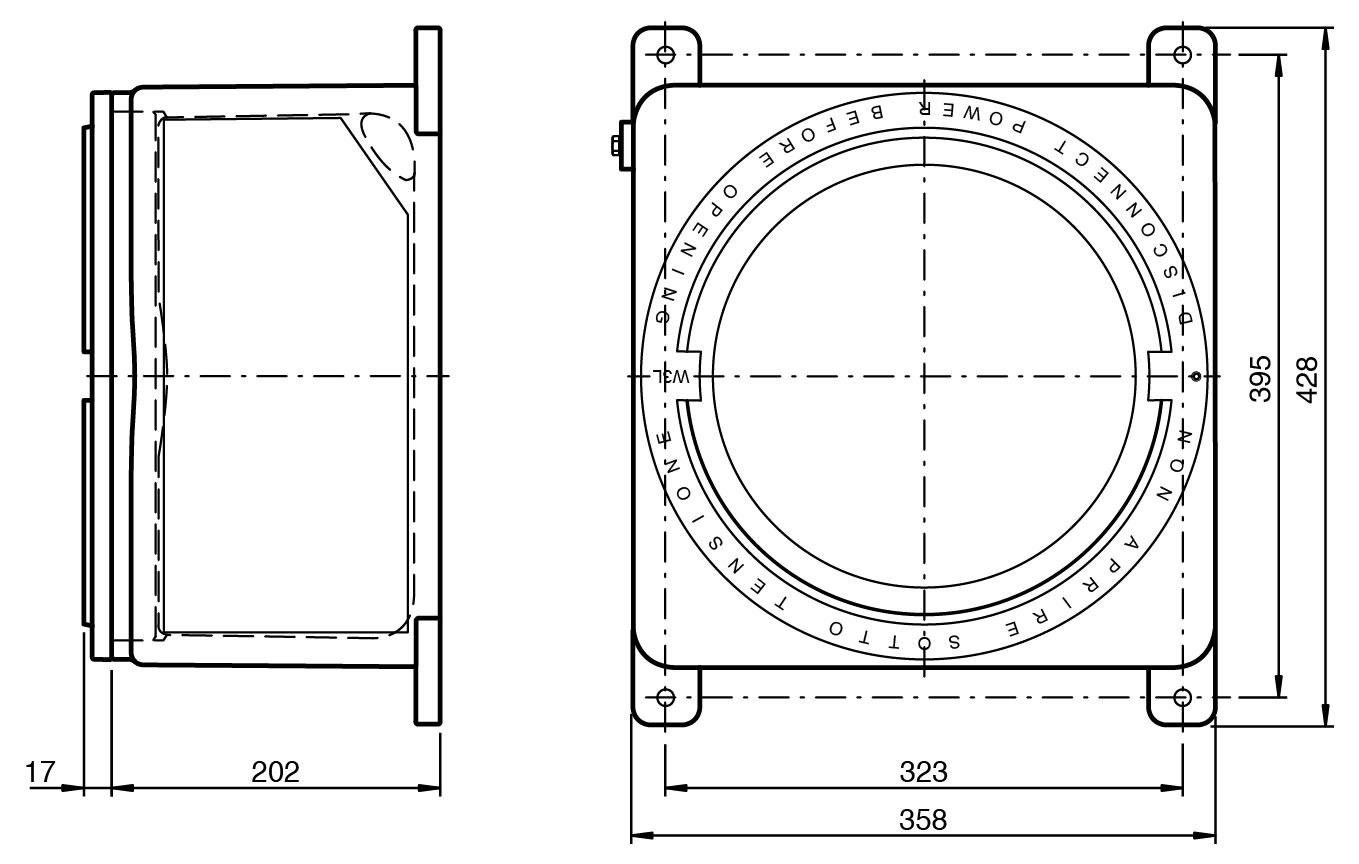

| Dimensions | 360 mm x 360 mm x 219 mm values might differ slightly due to casting and manufacturing tolerances |
| Mounting | see datasheets of relevant enclosures |
| Grounding | M6 external grounding points |
| Enclosure | aluminum alloy |
| Finish | epoxy coated RAL 7005 (grey) |
| O-Ring | silicone |
| Ambient temperature | -40 ... 50 °C (-40 ... 122 °F) depending on integrated components |
| EU-type examination certificate | INERIS 14 ATEX 0035X |
| Marking II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss | Marking II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss |
| Marking | II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss |
| IECEx approval | IECEx INE 14.0042X |
| Further approvals | available on request |
| Degree of protection | EN 60529 |
| CE marking | 0080 or 0102, see type label |

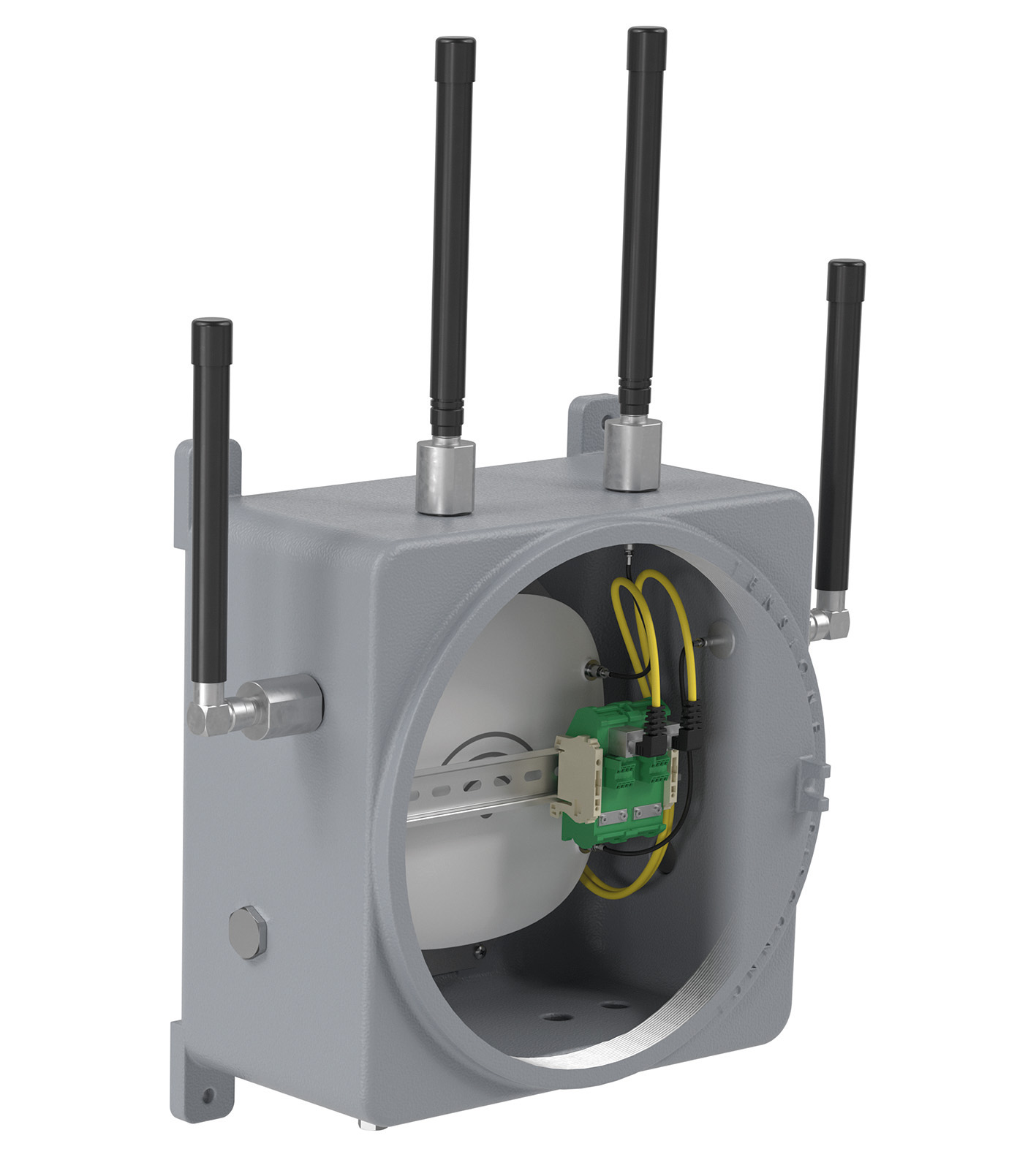

| Order information | This Wireless Access Point solution will be delivered completely configured and assembled ready for use. For configuration details please contact customer service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Installed components | All major WI-FI Access Point vendors such as Aruba, Cisco, ect. |
