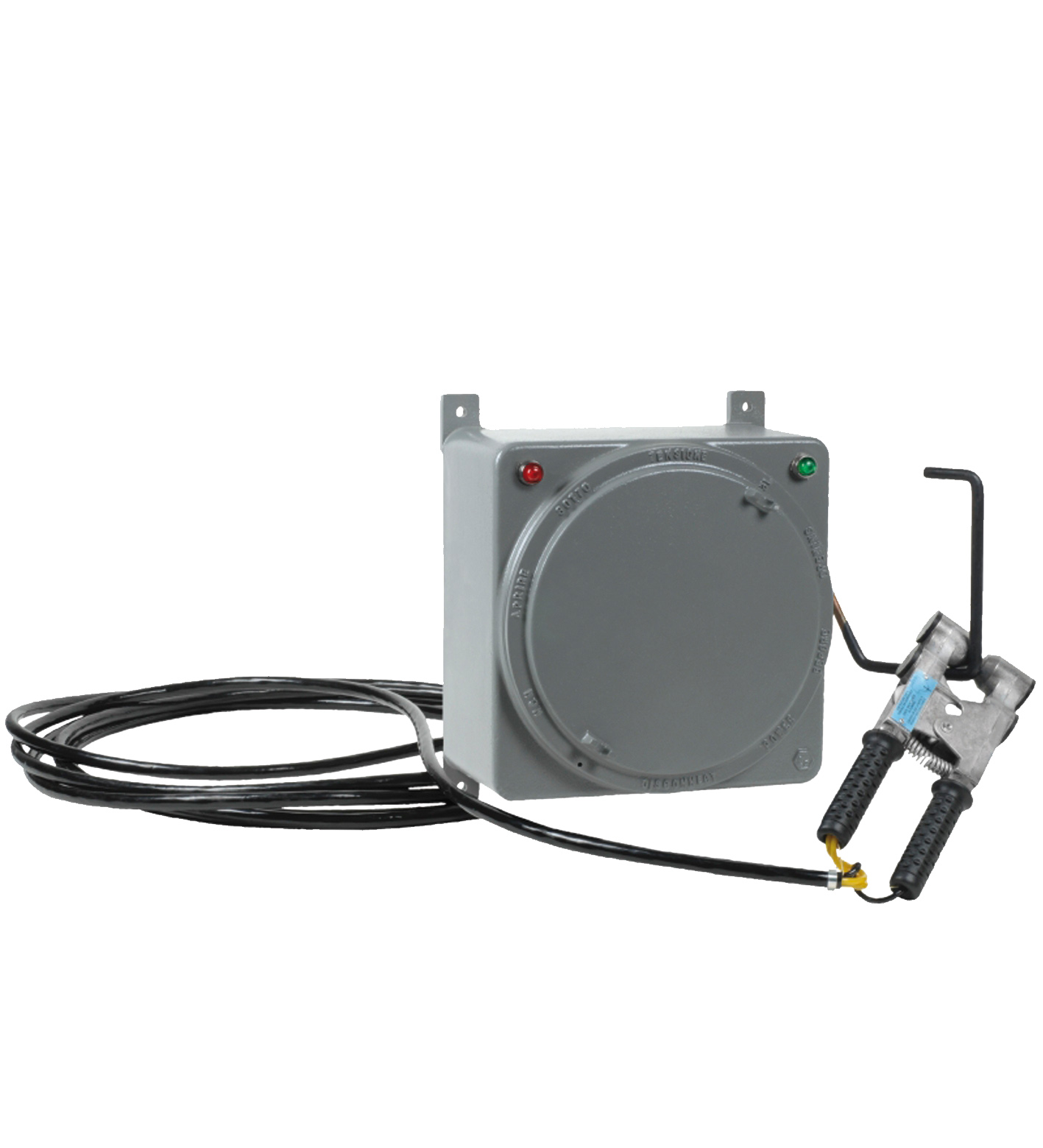

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 230 V AC , optional 110 V AC |
|---|---|
| Function | elimination of electrostatic charges |
| Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles | Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles |
| Lens color | red and green |
| Operator action | Cable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | threaded round cover |
| Cover fixing | flamepath thread |
| Cover seal | none, O-ring for IP66/67 |
| Flamepath grease | petroleum jelly |
| Degree of protection | IP65 , Enclosure IP66 (IP66/IP67 with O-ring) |
| Cable entry | face B |
| Cable entry face B | Cable entry face B |
| M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request | M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request |
| Material | Material |
| EnclosureAISI 316L stainless steelFinishshot peenedO-Ringsilicone | EnclosureAISI 316L stainless steelFinishshot peenedO-Ringsilicone |
| Mass | approx. 96 kg |

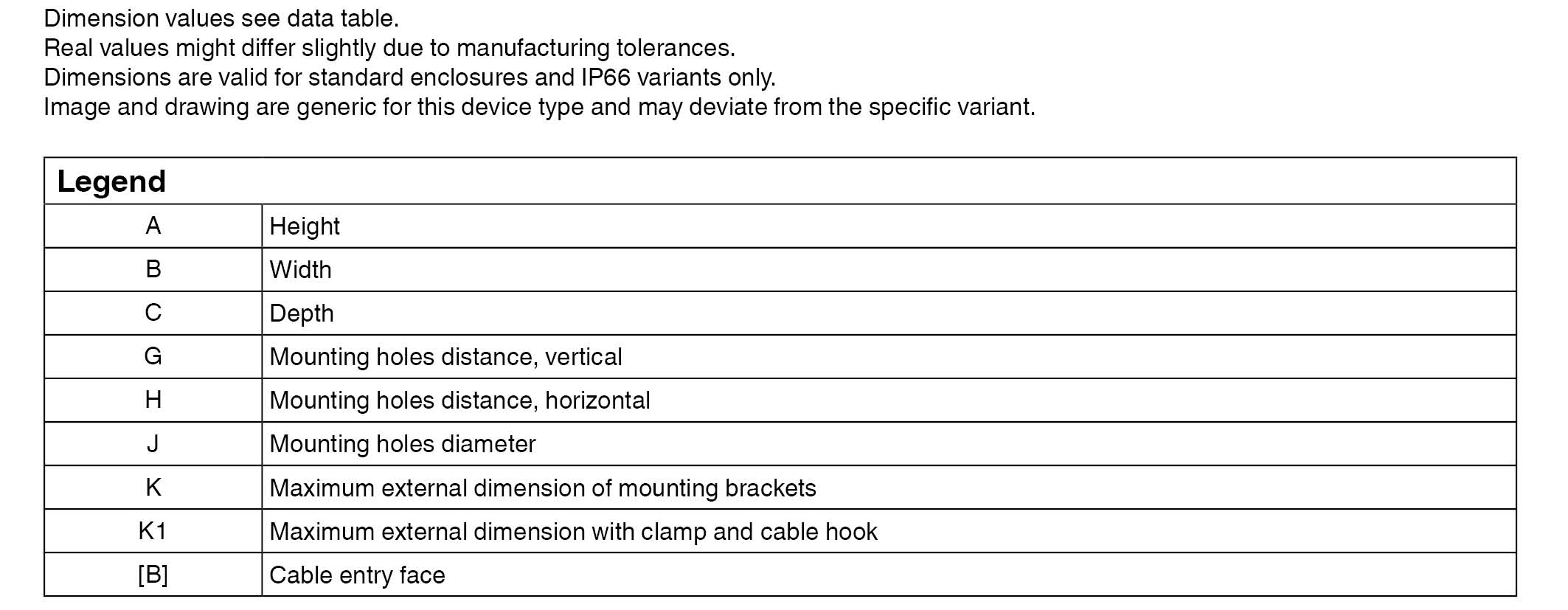

| Dimensions | values might differ slightly due to manufacturing tolerances |

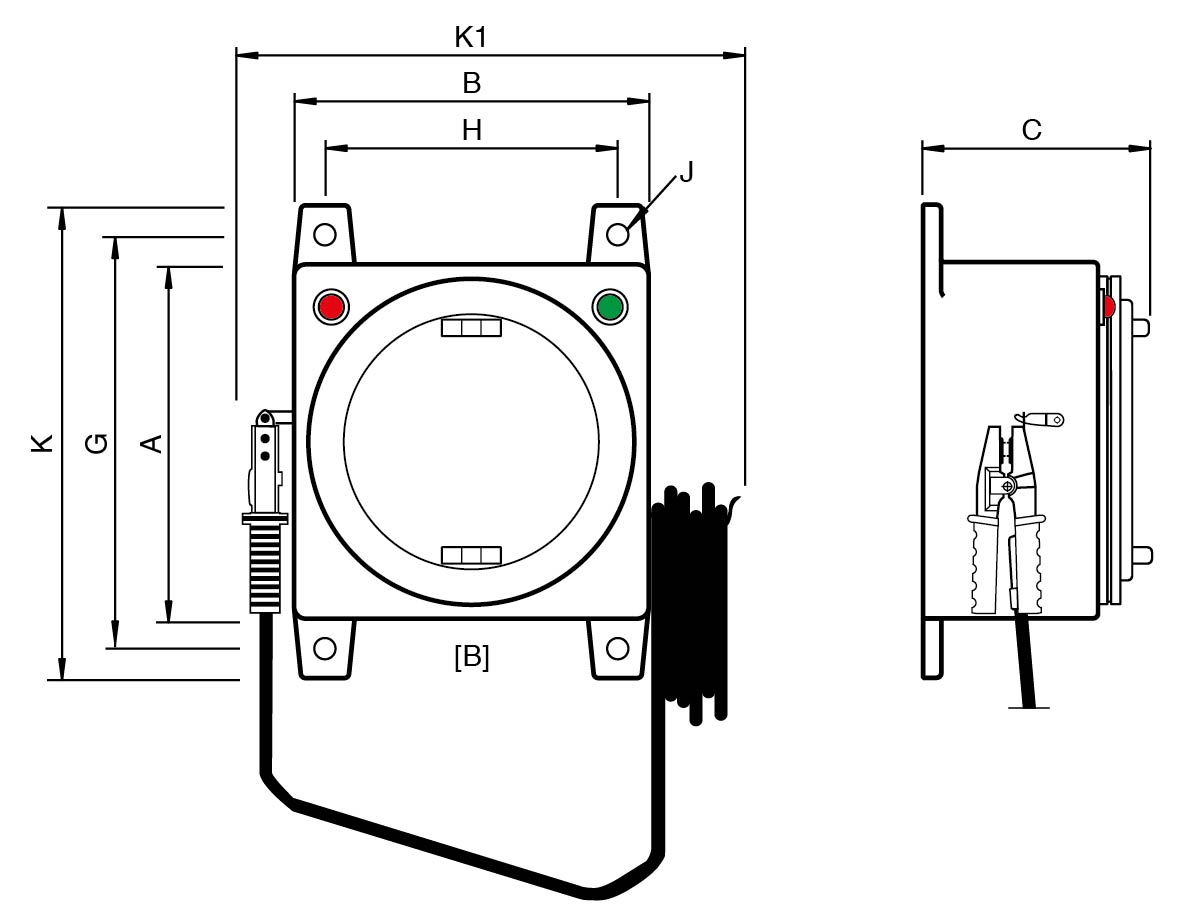

| External dimension (A)360 mmExternal dimension (B)360 mmExternal dimension (C)225 mmMounting holes distance (G)395 mmMounting holes distance (H)318 mmMounting holes diameter (J)10 mmNumber of mounting brackets4Maximum external dimension (K)430 mmMaximum external dimension (K1)510 mm | External dimension (A)360 mmExternal dimension (B)360 mmExternal dimension (C)225 mmMounting holes distance (G)395 mmMounting holes distance (H)318 mmMounting holes diameter (J)10 mmNumber of mounting brackets4Maximum external dimension (K)430 mmMaximum external dimension (K1)510 mm |
| Grounding | M6 external grounding points |
| M25 quantity | 2 |
| M25 type | NPT 3/4'' |
| M25 info | as standard, other on request |
| Enclosure | AISI 316L stainless steel |
| Finish | shot peened |
| O-Ring | silicone |
| External dimension (A) | 360 mm |
| External dimension (B) | 360 mm |
| External dimension (C) | 225 mm |
| Mounting holes distance (G) | 395 mm |
| Mounting holes distance (H) | 318 mm |
| Mounting holes diameter (J) | 10 mm |
| Number of mounting brackets | 4 |
| Maximum external dimension (K) | 430 mm |
| Maximum external dimension (K1) | 510 mm |
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) |
| EU-type examination certificate | INERIS 14 ATEX 0035X |
| Marking II 2 GD Ex db [ia Ga] IIC T6 Gb, II 2 GD Ex tb [iaD] IIIC T85°C Db | Marking II 2 GD Ex db [ia Ga] IIC T6 Gb, II 2 GD Ex tb [iaD] IIIC T85°C Db |
| Marking | II 2 GD Ex db [ia Ga] IIC T6 Gb, II 2 GD Ex tb [iaD] IIIC T85°C Db |
| Degree of protection | EN 60529 |
| CE marking | 0080 or 0102, see type label |
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
