HCD2-FBPS-1.500

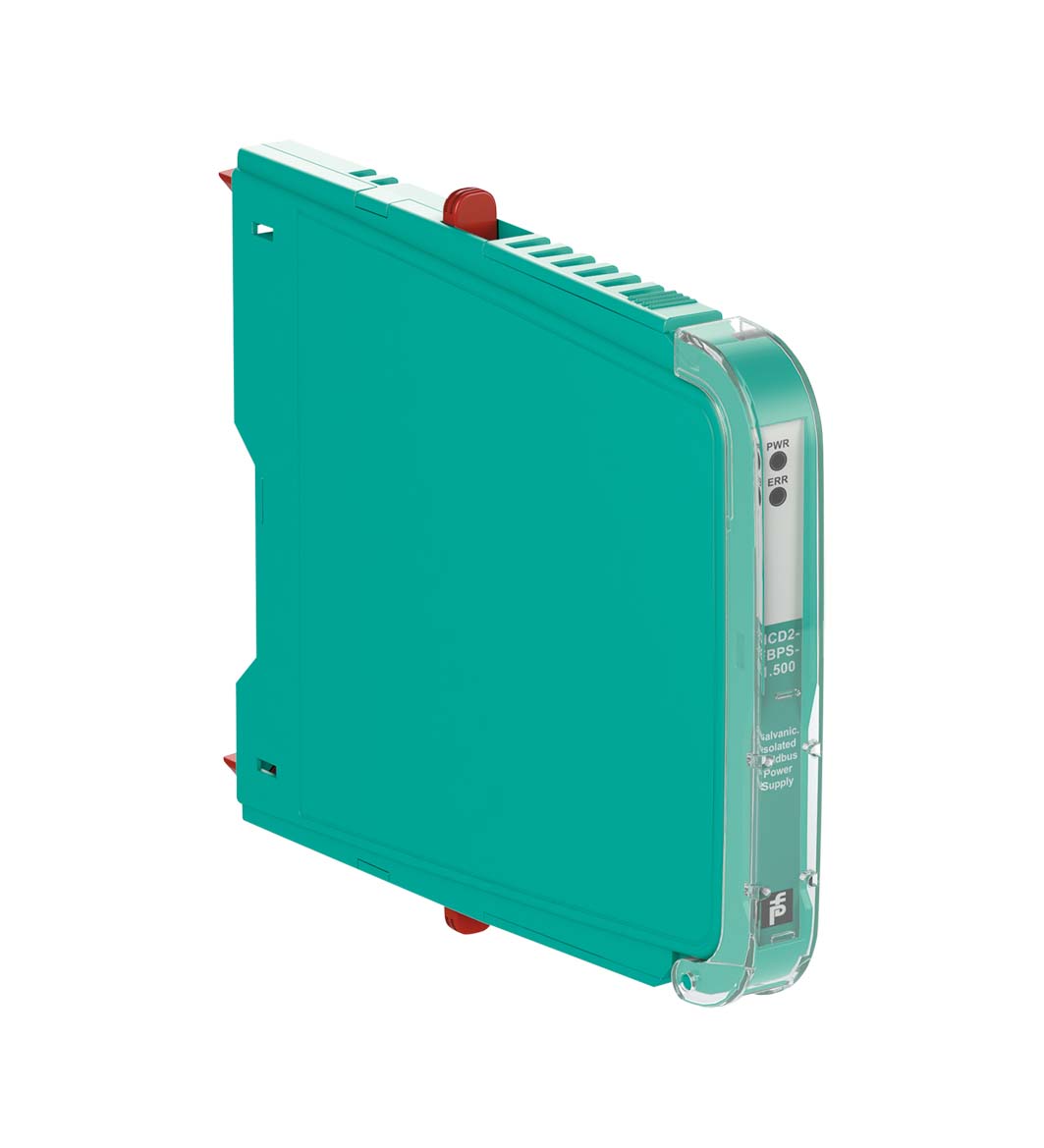

HCD2-FBPS-1.500 Fieldbus Power SupplyFieldConnex® Fieldbus

订货号: 275280
产品分类: 用于 PROFIBUS PA 的网关

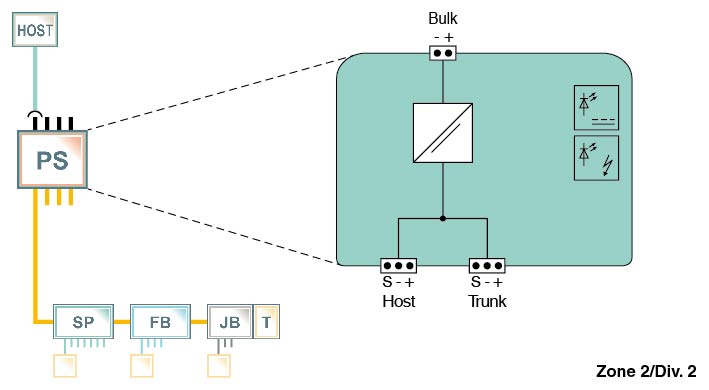

Fieldbus power supply, module for fieldbus power hub

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Design / Mounting	Motherboard based
Installation in hazardous area	Zone 2 / Div. 2
Rated voltage	19.2 ... 35 V DC
Power dissipation	typ. 1.6 W
Rated voltage	28 ... 29.5 V
Rated current	500 ... 10 mA
Short-circuit current	550 mA
Terminating resistor	motherboard specific
LED ERR	red flashing: short-circuit or undervoltage at output
LED PWR	green if Uout > 28 V
Fieldbus segment/Supply	functional insulation acc. to IEC 62103, rated insulation voltage 250 V AC
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21:2011
Degree of protection	IEC 60529
Fieldbus standard	IEC 61158-2
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	< 95 % non-condensing
Shock resistance	15 g 11 ms
Vibration resistance	1 g , 10 ... 150 Hz
Pollution degree	max. 2, according to IEC 60664
Corrosion resistance	acc. to ISA-S71.04-1985, severity level G3
Core cross section	motherboard specific
Housing material	Polycarbonate
Degree of protection	IP20
Mass	approx. 150 g
Dimensions	Dimensions
Height106 mmWidth12.5 mmDepth128 mm	Height106 mmWidth12.5 mmDepth128 mm
Mounting	motherboard mounting
Height	106 mm
Width	12.5 mm
Depth	128 mm
Outputs	Outputs
VoltageUo30 V	VoltageUo30 V
Certificate	TÜV 10 ATEX 555761X
Marking II 3G Ex ec IIC T4 Gc	Marking II 3G Ex ec IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012
Voltage	30 V
Marking	II 3G Ex ec IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012
FM approval	FM approval
FM certificateFM 19 US 0015 X and FM 19 CA 0011 XApproved forClass I, Division 2, Groups A, B, C, D, T4 / Class I, Zone 2, AEx/Ex ec IIC T4	FM certificateFM 19 US 0015 X and FM 19 CA 0011 XApproved forClass I, Division 2, Groups A, B, C, D, T4 / Class I, Zone 2, AEx/Ex ec IIC T4
IECEx approval	IECEx approval
IECEx certificateIECEx TUN 13.0037XIECEx markingEx ec IIC T4 Gc	IECEx certificateIECEx TUN 13.0037XIECEx markingEx ec IIC T4 Gc
FM certificate	FM 19 US 0015 X and FM 19 CA 0011 X
Approved for	Class I, Division 2, Groups A, B, C, D, T4 / Class I, Zone 2, AEx/Ex ec IIC T4
IECEx certificate	IECEx TUN 13.0037X
IECEx marking	Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
