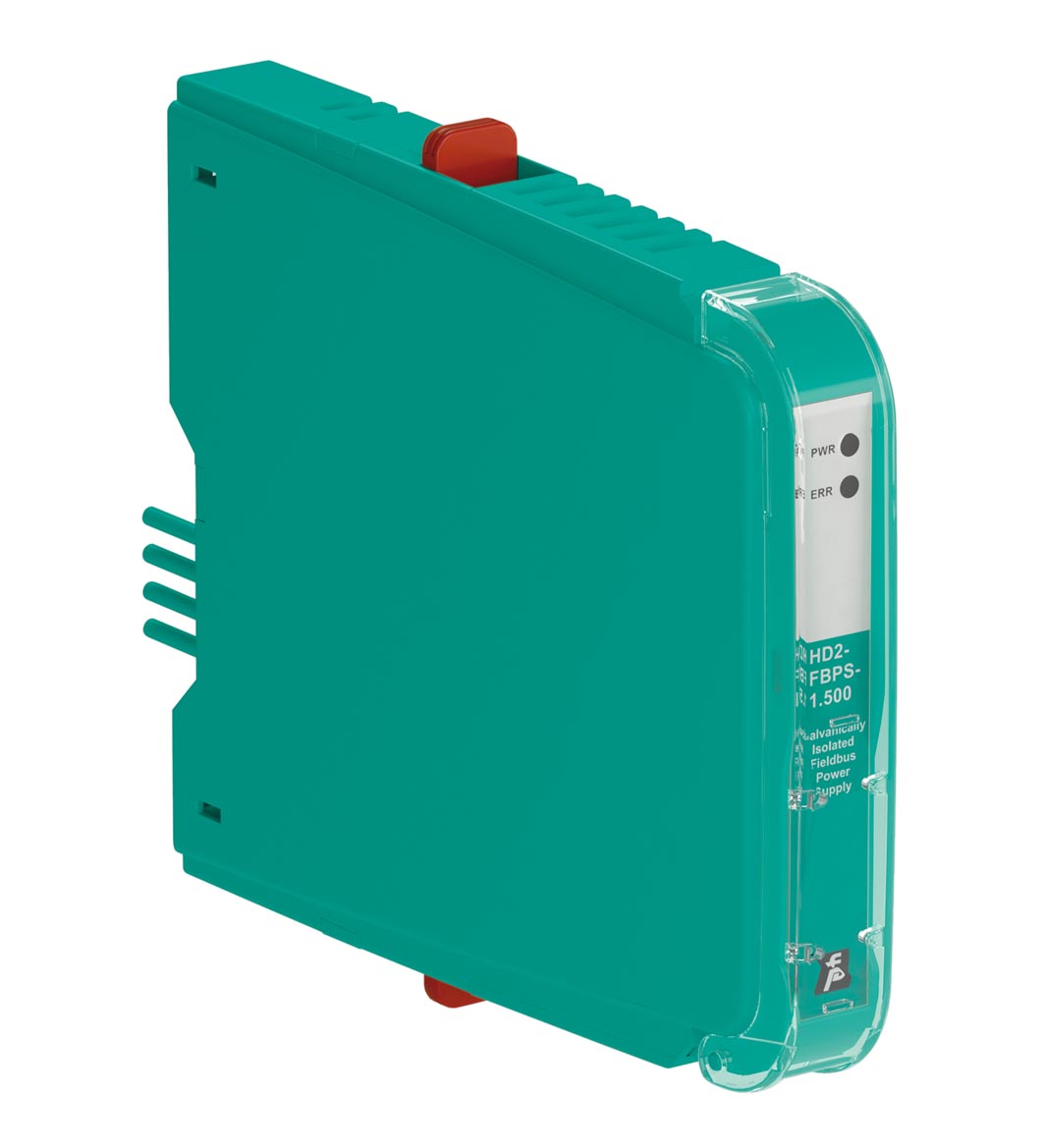

TECHNICAL DATA
规格参数

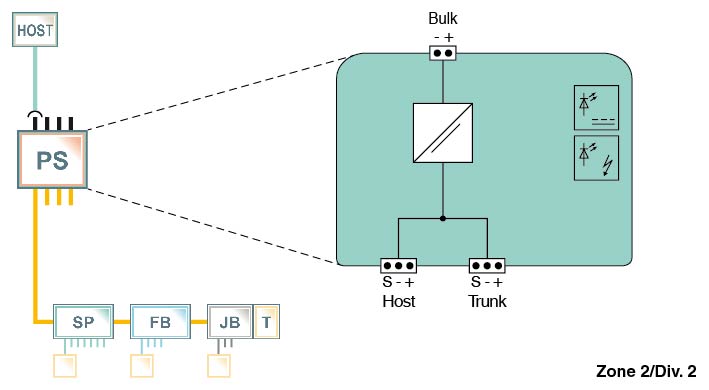

General specifications
| Design / Mounting | Motherboard based |
|---|---|
| Installation in hazardous area | Zone 2 / Div. 2 |
| Rated voltage | 19.2 ... 35 V DC |
| Rated current | 700 ... 390 mA |
| Power dissipation | typ. 1.5 W |
| Rated voltage | 21 ... 23 V |
| Rated current | 500 ... 10 mA |
| Short-circuit current | 550 mA |
| LED ERR | red flashing: short-circuit or undervoltage at output |
| LED PWR | green if Uout > 21 V |
| Fieldbus segment/Supply | functional insulation acc. to IEC 62103, rated insulation voltage 250 V AC |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21:2011 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 95 % non-condensing |
| Shock resistance | 15 g 11 ms |
| Vibration resistance | 1 g , 10 ... 150 Hz |
| Pollution degree | max. 2, according to IEC 60664 |
| Corrosion resistance | acc. to ISA-S71.04-1985, severity level G3 |
| Core cross section | motherboard specific |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | approx. 150 g |
| Dimensions | Dimensions |
| Height106 mmWidth18 mmDepth128 mm | Height106 mmWidth18 mmDepth128 mm |
| Mounting | motherboard mounting |
| Height | 106 mm |
| Width | 18 mm |
| Depth | 128 mm |
| Outputs | Outputs |
| VoltageUo24 V | VoltageUo24 V |
| Certificate | TÜV 04 ATEX 2500 X |
| Marking II 3 G Ex nA IIC T4 Gc | Marking II 3 G Ex nA IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 | Directive 2014/34/EUEN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 |
| Voltage | 24 V |
| Marking | II 3 G Ex nA IIC T4 Gc |
| Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010 |
| FM approval | FM approval |
| FM certificateFM 19 US 0015 X and FM 19 CA 0011 XFM markingAEx/Ex ec IIC T4 | FM certificateFM 19 US 0015 X and FM 19 CA 0011 XFM markingAEx/Ex ec IIC T4 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx TUN 13.0038XIECEx markingEx nA IIC T4 Gc | IECEx certificateIECEx TUN 13.0038XIECEx markingEx nA IIC T4 Gc |
| FM certificate | FM 19 US 0015 X and FM 19 CA 0011 X |
| FM marking | AEx/Ex ec IIC T4 |
| IECEx certificate | IECEx TUN 13.0038X |
| IECEx marking | Ex nA IIC T4 Gc |
| Marine approval | pending |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
