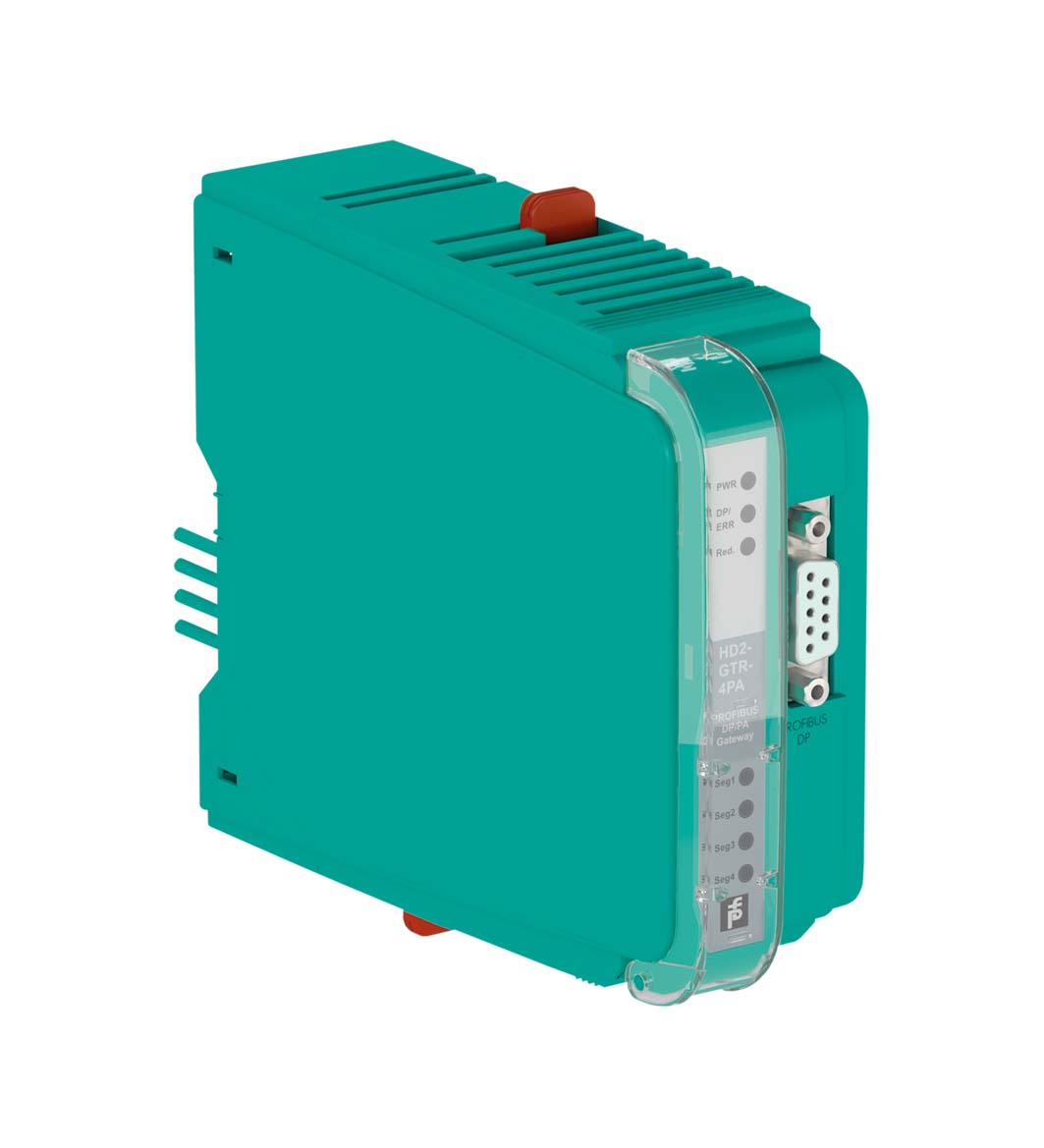

TECHNICAL DATA
规格参数
General specifications

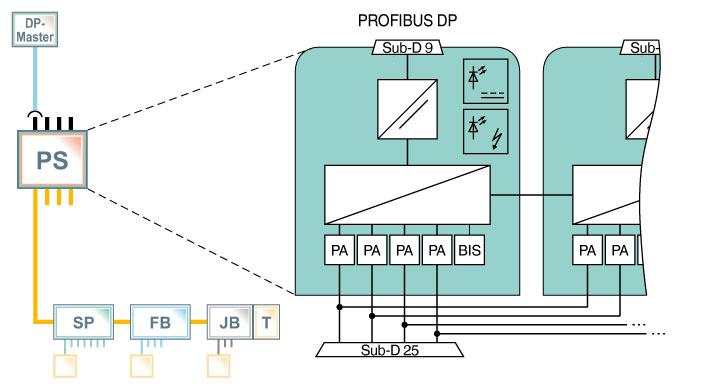

| Design / Mounting | Motherboard based |
|---|---|
| Installation in hazardous area | Zone 2 / Div. 2 |
| Rated voltage | 19.2 ... 30 V DC |
| Rated current | 150 ... 95 mA |
| Power dissipation | 3 W |
| Number of segments | 4 |
| PROFIBUS DP | PROFIBUS DP |
| Connection9-pin Sub-D socketProtocolPROFIBUS DP V1 | Connection9-pin Sub-D socketProtocolPROFIBUS DP V1 |
| Connection | 9-pin Sub-D socket |
| Protocol | PROFIBUS DP V1 |
| LED Seg 1...4 | red 2 Hz flashing: PA error, red and LED DP/ERR red: MAU error |
| LED PWR | green: Power on |
| LED DP/ERR | red 2 Hz flashing: DP error ; red: Hardware error |
| LED Red. | yellow: redundant operation primary device ; yellow 2 Hz flashing: synchronization or redundancy not available |
| CH/PROFIBUS DP | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| PROFIBUS DP/Supply | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| CH/CH | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| All circuits/FE | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Low voltage | Low voltage |
| Directive 73/23/EECEN 50178 (identical to EN 62103) | Directive 73/23/EECEN 50178 (identical to EN 62103) |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Directive 73/23/EEC | EN 50178 (identical to EN 62103) |
| Galvanic isolation | IEC 62103 |
| Electromagnetic compatibility | NE 21:2017 for simplex operating mode only |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 95 % non-condensing |
| Shock resistance | 15 g 11 ms |
| Vibration resistance | 1 g , 10 ... 150 Hz |
| Pollution degree | max. 2, according to IEC 60664 |
| Corrosion resistance | acc. to ISA-S71.04-1985, severity level G3 |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | 250 g |
| Dimensions | Dimensions |
| Height106 mmWidth40 mmDepth128 mm | Height106 mmWidth40 mmDepth128 mm |
| Mounting | motherboard mounting |
| Height | 106 mm |
| Width | 40 mm |
| Depth | 128 mm |
| Certificate | TÜV 04 ATEX 2500 X |
| Marking II 3 G Ex nA IIC T4 Gc | Marking II 3 G Ex nA IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| Marking | II 3 G Ex nA IIC T4 Gc |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx TUN 13.0038XIECEx markingEx nA IIC T4 Gc | IECEx certificateIECEx TUN 13.0038XIECEx markingEx nA IIC T4 Gc |
| IECEx certificate | IECEx TUN 13.0038X |
| IECEx marking | Ex nA IIC T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
