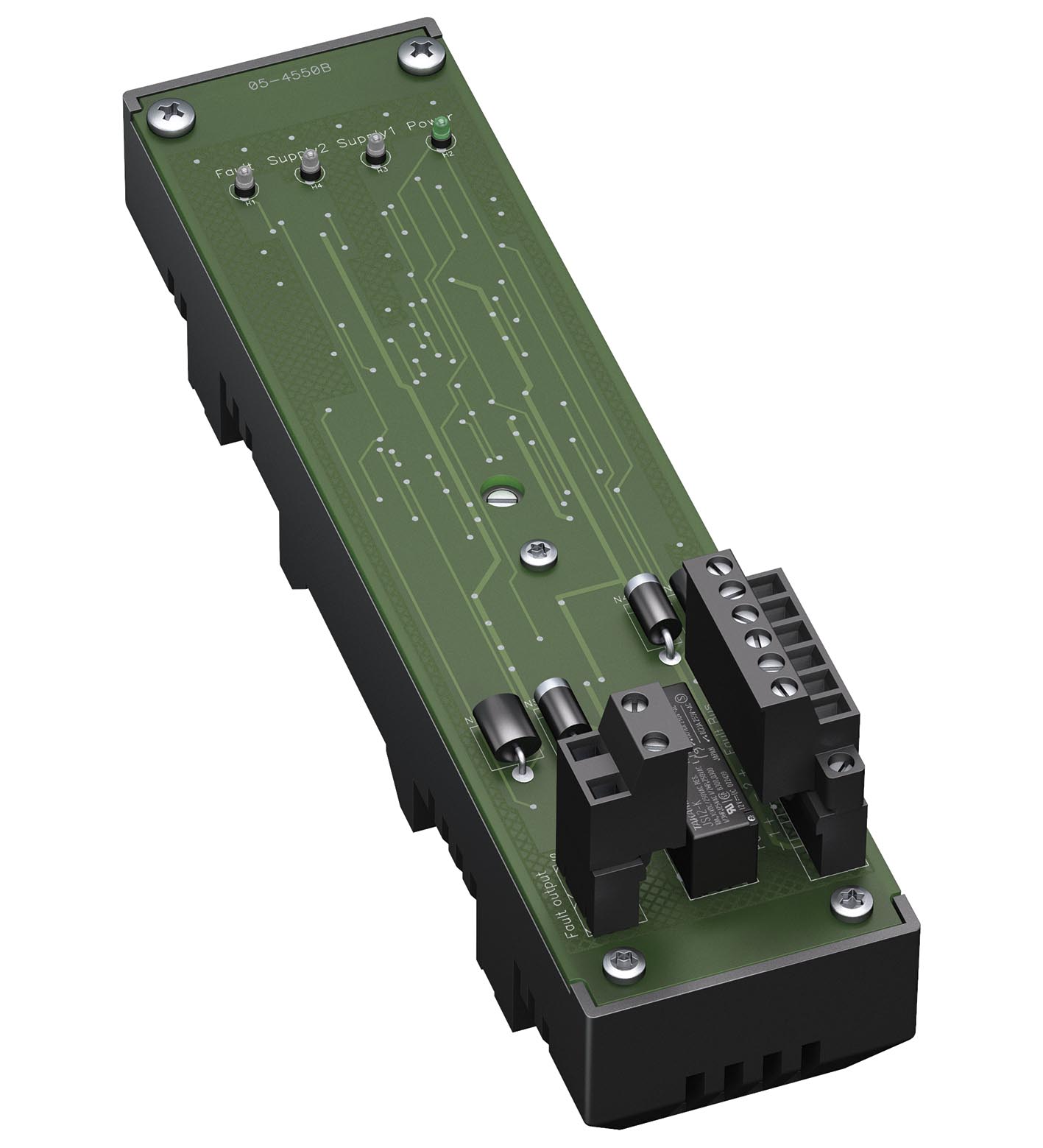

TECHNICAL DATA
规格参数
Supply

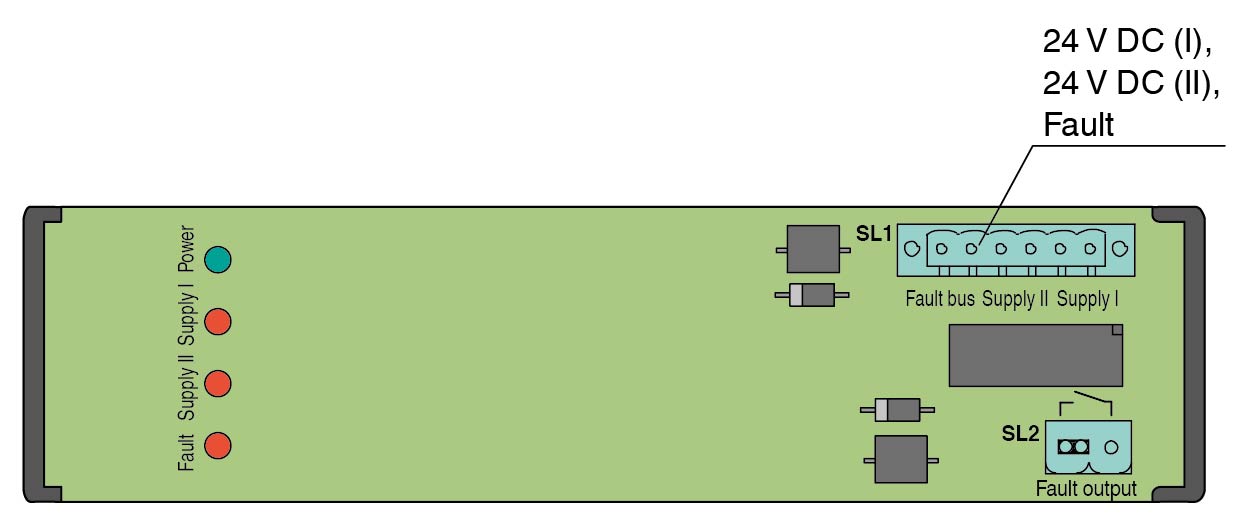

| Connection | SL1: terminals 3, 5(+); 4, 6(-) |
|---|---|
| Rated voltage | 19.6 ... 30 V DC |
| Ripple | ≤ 10 % |
| Power dissipation | ≤ 500 mW |
| Reverse polarity protection | yes |
| Supply | Redundancy available. The supply is decoupled and monitored. |
| Connection | fault bus (Fault) : SL1: terminals 1, 2 fault output : SL2: terminals 1, 2 |
| Output type | volt-free contact |
| Switch behaviour | no fault: relay contact closed power supply fault: relay contact open module fault: relay contact open |
| Contact loading | 30 V DC , 1 A |
| Display elements | LED Power (power supply), green LEDLED Supply I (missing supply I), red LEDLED Supply II (missing supply II), red LEDLED Fault (fault signal), red LED - LED flashes: module fault/power supply fault at the termination board |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2017For further information see system description. |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Degree of protection | IP20 |
| Connection | Connection |
| Supplypluggable screw terminals , blackFault outputpluggable screw terminals , black | Supplypluggable screw terminals , blackFault outputpluggable screw terminals , black |
| Core cross section | screw terminals: 0.2 ... 2.5 mm2 (24 ... 12 AWG) |
| Material | housing: polycarbonate, 10 % glass fiber reinforced |
| Mass | approx. 165 g |
| Dimensions | 50 x 200 x 63 mm (1.97 x 7.9 x 2.48 inch) (W x H x D) |
| Height200 mmWidth50 mmDepth63 mm | Height200 mmWidth50 mmDepth63 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Supply | pluggable screw terminals , black |
| Fault output | pluggable screw terminals , black |
| Height | 200 mm |
| Width | 50 mm |
| Depth | 63 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
