HiC2025A

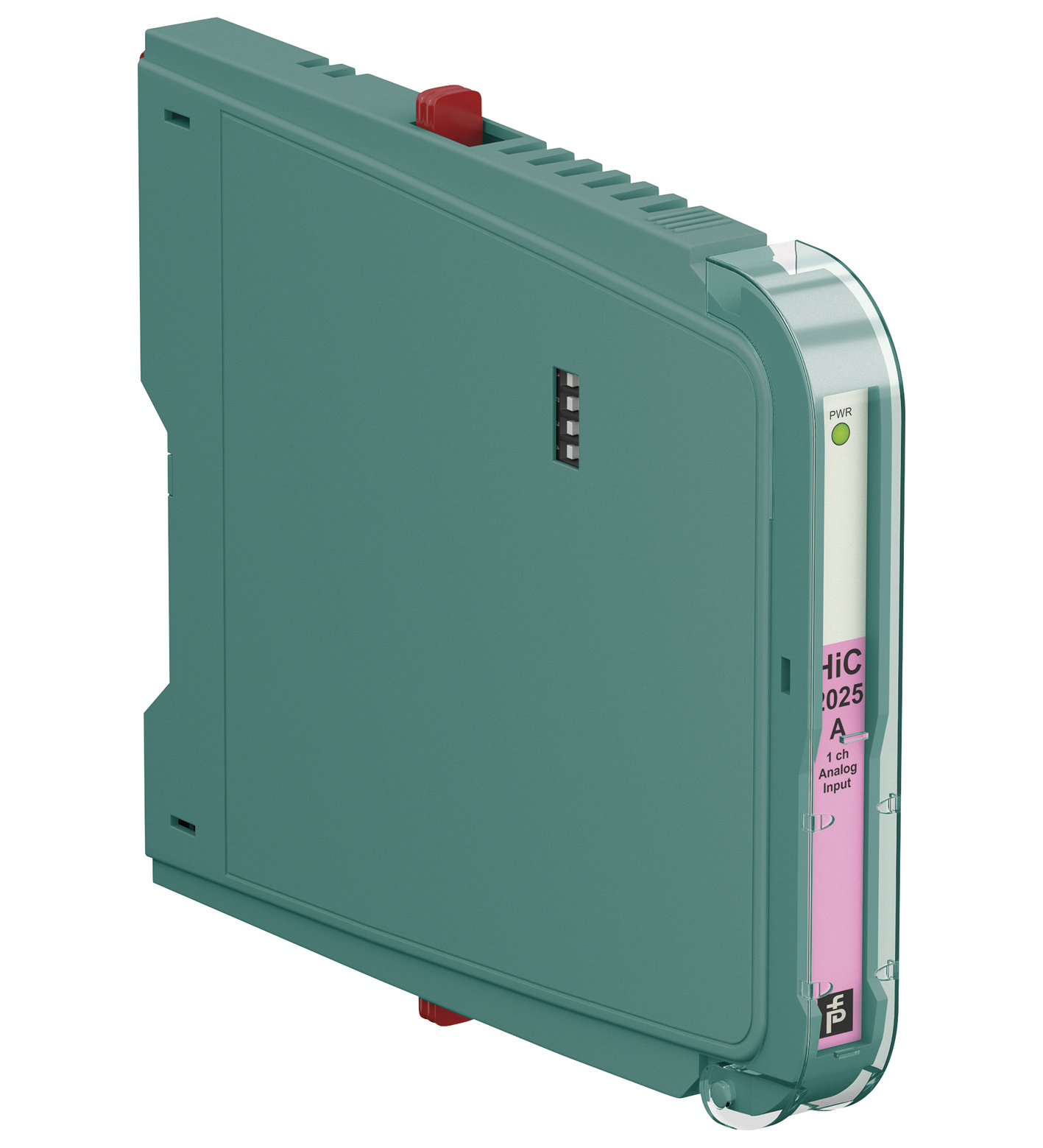

HiC2025A SMART Transmitter Power Supply

订货号: 70150943
产品分类: H 系统（端接板安装）

SMART Transmitter Power Supply

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Safety Integrity Level (SIL)	SIL 2
Systematic capability (SC)	SC 3

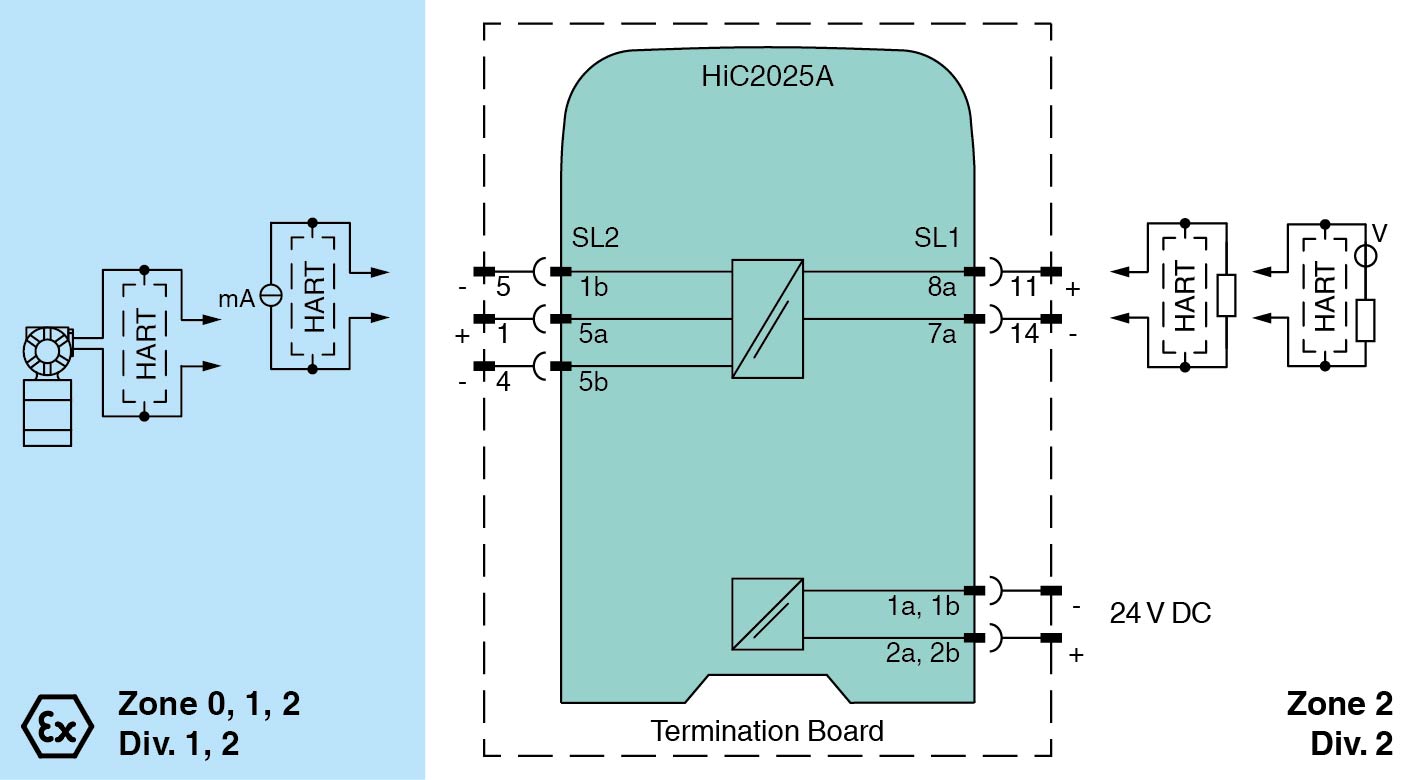

Connection	SL1: 1a, 1b(-); 2a, 2b(+)
Rated voltage	19 ... 30 V DC bus powered via Termination Board
Ripple	≤ 10 %
Rated current	≤ 45 mA at 24 V and 20 mA source mode output
Power dissipation	≤ 800 mW
Power consumption	≤ 1.1 W
Connection side	field side
Connection	SL2: 5a(+), 1b(-); 5a(+), 5b(-)
Input signal	4 ... 20 mA limited to approx. 26 mA
Voltage drop	approx. 5 V on SL2: 5a(+), 1b(-)
Available voltage	≥ 14.7 V at 20 mA ≥ 18 V at 4 mA on SL2: 5a(+), 5b(-)
Connection side	control side
Connection	SL1: 8a(+), 7a(-)
Load	0 ... 350 Ω (source mode)
Output signal	source mode: 4 ... 20 mA or 1 ... 5 V (internal resistor: 250 Ω, 0.1 %) sink mode: 4 ... 20 mA, operating voltage 10 ... 30 V For additional internal or external loads the voltage drop has to be considered, e. g. 250 Ω x 20 mA = 5 V.
Ripple	20 mV rms
Deviation	at 20 °C (68 °F) < 0.1 % of full scale, incl. non-linearity and hysteresis (source mode and sink mode 4 ... 20 mA) ≤ ± 0.2 % incl. non-linearity and hysteresis (source mode 1 ... 5 V)
Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F)) (source mode and sink mode 4 ... 20mA)< 0.5 mV/K (-20 ... 70 °C (-4 ... 158 °F)); < 1 mV/K (-40 ... -20 °C (-40 ... -4 °F)) (source mode 1...5 V)	Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F)) (source mode and sink mode 4 ... 20mA)< 0.5 mV/K (-20 ... 70 °C (-4 ... 158 °F)); < 1 mV/K (-40 ... -20 °C (-40 ... -4 °F)) (source mode 1...5 V)
Frequency range	field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB)
Settling time	≤ 50 ms
Rise time/fall time	≤ 10 ms
Influence of ambient temperature	< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F)) (source mode and sink mode 4 ... 20mA)< 0.5 mV/K (-20 ... 70 °C (-4 ... 158 °F)); < 1 mV/K (-40 ... -20 °C (-40 ... -4 °F)) (source mode 1...5 V)
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Output/power supply	basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff
Display elements	LED
Control elements	DIP switch
Factory setting	output: current source
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2017 EN 61326-3-2:2018 For further information see system description.
Degree of protection	IEC 60529:2001
Protection against electrical shock	UL 61010-1:2018
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of protection	IP20
Mass	approx. 100 g
Dimensions	12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D)
Mounting	on termination board
Coding	pin 2 and 3 trimmed For further information see system description.
EU-type examination certificate	CESI 06 ATEX 017
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx ia	Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx ia
Supply	Supply
Maximum safe voltageUm250 V AC (Attention! Um is no rated voltage.)	Maximum safe voltageUm250 V AC (Attention! Um is no rated voltage.)
Equipment	SL2: 5a(+), 5b(-)
VoltageUo25.2 VCurrentIo93 mAPowerPo586 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible	VoltageUo25.2 VCurrentIo93 mAPowerPo586 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible
Equipment	SL2: 5a(+), 1b(-)
VoltageUi30 VCurrentIi128 mAPowerPi1000 mWVoltageUo1 VCurrentIo100 mAPowerPo25 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible	VoltageUi30 VCurrentIi128 mAPowerPi1000 mWVoltageUo1 VCurrentIo100 mAPowerPo25 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible
Certificate	CESI 19 ATEX 027 X
Marking II 3G Ex ec IIC T4 Gc	Marking II 3G Ex ec IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN IEC 60079-7:2015/A1:2018	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN IEC 60079-7:2015/A1:2018
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Input	Ex ia
Maximum safe voltage	250 V AC (Attention! Um is no rated voltage.)
Voltage	25.2 V
Current	93 mA
Power	586 mW
Internal capacitance	5.7 nF
Internal inductance	negligible
Voltage	30 V
Current	128 mA
Power	1000 mW
Voltage	1 V
Current	100 mA
Power	25 mW
Internal capacitance	5.7 nF
Internal inductance	negligible
Marking	II 3G Ex ec IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN IEC 60079-7:2015/A1:2018
FM approval	FM approval
FM certificateFM 19 US 0122 X , FM 19 CA 0065 XControl drawing116-0470 (cFMus)	FM certificateFM 19 US 0122 X , FM 19 CA 0065 XControl drawing116-0470 (cFMus)
UL approval	E106378
Control drawing116-0458 (cULus)	Control drawing116-0458 (cULus)
IECEx approval	IECEx approval
IECEx certificateIECEx CES 06.0002XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc	IECEx certificateIECEx CES 06.0002XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
FM certificate	FM 19 US 0122 X , FM 19 CA 0065 X
Control drawing	116-0470 (cFMus)
Control drawing	116-0458 (cULus)
IECEx certificate	IECEx CES 06.0002X
IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
