HiC2025ES

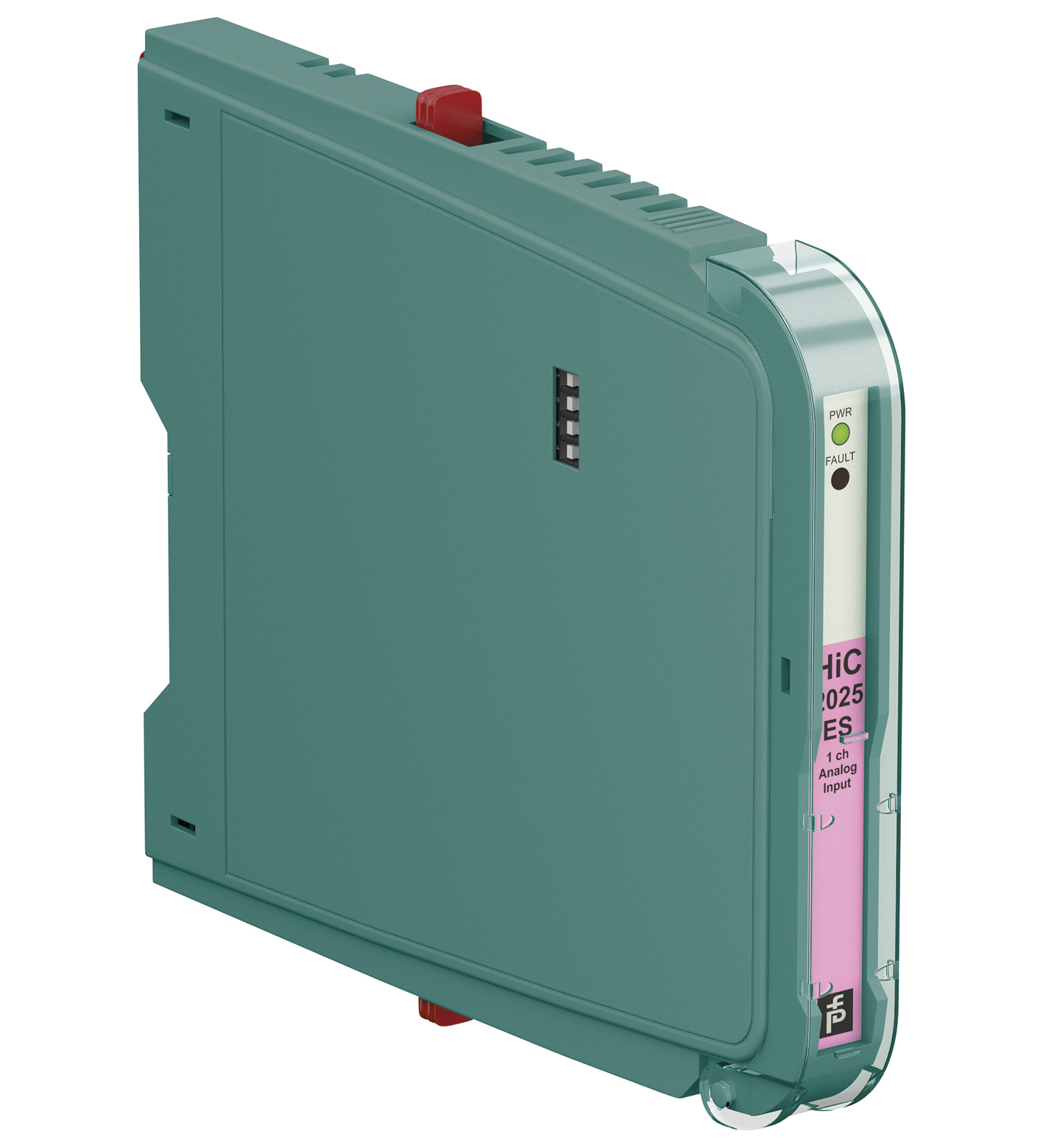

HiC2025ES SMART Transmitter Power Supply

订货号: 322429
产品分类: H 系统（端接板安装）

SMART Transmitter Power Supply

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Safety Integrity Level (SIL)	SIL 3
Systematic capability (SC)	SC 3

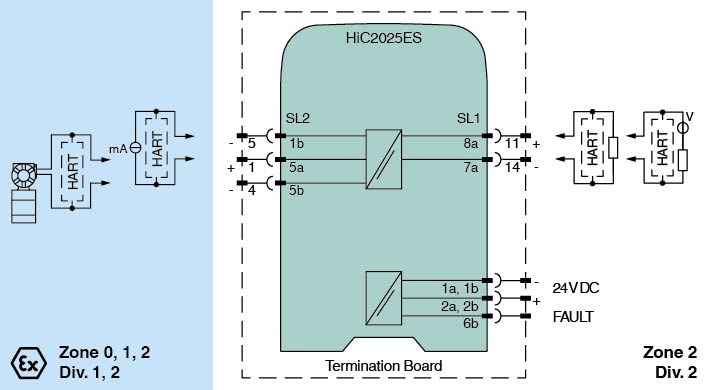

Connection	SL1: 1a(-), 1b(-); 2a(+), 2b(+)
Rated voltage	19 ... 30 V DC bus powered via Termination Board
Ripple	≤ 10 %
Rated current	≤ 50 mA
Power dissipation	≤ 800 mW
Power consumption	≤ 1.2 W
Connection side	field side
Connection	SL2: 5a(+), 1b(-); 5a(+), 5b(-)
Input signal	4 ... 20 mA , limited to approx. 27 mA reverse polarity protected
Line fault detection	downscaling ≤ 3 mA ; upscaling ≥ 22 mA
Voltage drop	approx. 5 V on SL2: 5a(+), 1b(-)
Available voltage	≥ 15 V at 20 mA on SL2: 5a(+), 5b(-)
Connection side	control side
Connection	SL1: 8a(+), 7a(-)
Load	0 ... 300 Ω (source mode)
Output signal	source mode: 4 ... 20 mA or 1 ... 5 V (internal resistor: 250 Ω, 0.1 %) sink mode: 4 ... 20 mA, operating voltage 16 ... 28 V For additional internal or external loads the voltage drop has to be considered, e. g. 250 Ω x 20 mA = 5 V.
Ripple	20 mV rms
Connection	SL1: 6b
Output type	open collector transistor (internal fault bus)
Deviation	at 20 °C (68 °F) ≤ ± 20 µA incl. calibration, linearity, hysteresis, loads and supply voltage fluctuations (source mode and sink mode 4 ... 20 mA) ≤ 10 mV incl. calibration, linearity, hysteresis and fluctuations of supply voltage (source mode 1 ... 5 V)
Influence of ambient temperature< 2 µA/K (0 ... 70 °C (32 ... 158 °F)); < 4 µA/K (-20 ... 0 °C (-4 ... 32 °F)) (source mode and sink mode 4 ... 20 mA) < 0.5 mV/K (0 ... 70 °C (32 ... 158 °F)); < 1 mV/K (-20 ... 0 °C (-4 ... 32 °F)) (source mode 1 ... 5 V)	Influence of ambient temperature< 2 µA/K (0 ... 70 °C (32 ... 158 °F)); < 4 µA/K (-20 ... 0 °C (-4 ... 32 °F)) (source mode and sink mode 4 ... 20 mA) < 0.5 mV/K (0 ... 70 °C (32 ... 158 °F)); < 1 mV/K (-20 ... 0 °C (-4 ... 32 °F)) (source mode 1 ... 5 V)
Frequency range	field side into the control side: bandwidth with 1 mApp signal 0 ... 3 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB)
Settling time	≤ 200 ms
Rise time/fall time	≤ 20 ms
Influence of ambient temperature	< 2 µA/K (0 ... 70 °C (32 ... 158 °F)); < 4 µA/K (-20 ... 0 °C (-4 ... 32 °F)) (source mode and sink mode 4 ... 20 mA) < 0.5 mV/K (0 ... 70 °C (32 ... 158 °F)); < 1 mV/K (-20 ... 0 °C (-4 ... 32 °F)) (source mode 1 ... 5 V)
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Output/power supply	Basic isolation acc. to EN 61010-1 rated insulation voltage ≤ 50 V
Display elements	LEDs
Control elements	DIP switch
Factory setting	output: current source
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2017For further information see system description.
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 70 °C (-4 ... 158 °F)
Degree of protection	IP20
Mass	approx. 100 g
Dimensions	12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D)
Height106 mmWidth12.5 mmDepth128 mm	Height106 mmWidth12.5 mmDepth128 mm
Mounting	on termination board
Coding	pin 1 and 3 trimmed For further information see system description.
Height	106 mm
Width	12.5 mm
Depth	128 mm
EU-type examination certificate	CESI 10 ATEX 063
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx ia	Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx ia
Supply	Supply
Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.)	Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.)
Equipment	SL2: 5a(+), 5b(-)
VoltageUo25.2 VCurrentIo100 mAPowerPo630 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible	VoltageUo25.2 VCurrentIo100 mAPowerPo630 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible
Equipment	SL2: 5a(+), 1b(-)
VoltageUi< 30 VCurrentIi< 128 mAVoltageUo7.2 VCurrentIo100 mAPowerPo25 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible	VoltageUi< 30 VCurrentIi< 128 mAVoltageUo7.2 VCurrentIo100 mAPowerPo25 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible
Certificate	CESI 19 ATEX 016 X
Marking II 3G Ex ec IIC T4 Gc	Marking II 3G Ex ec IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Input	Ex ia
Maximum safe voltage	253 V AC (Attention! Um is no rated voltage.)
Voltage	25.2 V
Current	100 mA
Power	630 mW
Internal capacitance	5.7 nF
Internal inductance	negligible
Voltage	< 30 V
Current	< 128 mA
Voltage	7.2 V
Current	100 mA
Power	25 mW
Internal capacitance	5.7 nF
Internal inductance	negligible
Marking	II 3G Ex ec IIC T4 Gc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015
UL approval	E106378
Control drawing116-0376 (cULus)	Control drawing116-0376 (cULus)
IECEx approval	IECEx approval
IECEx certificateIECEx CES 10.0021XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc	IECEx certificateIECEx CES 10.0021XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Control drawing	116-0376 (cULus)
IECEx certificate	IECEx CES 10.0021X
IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
