倍加福

HiC2027

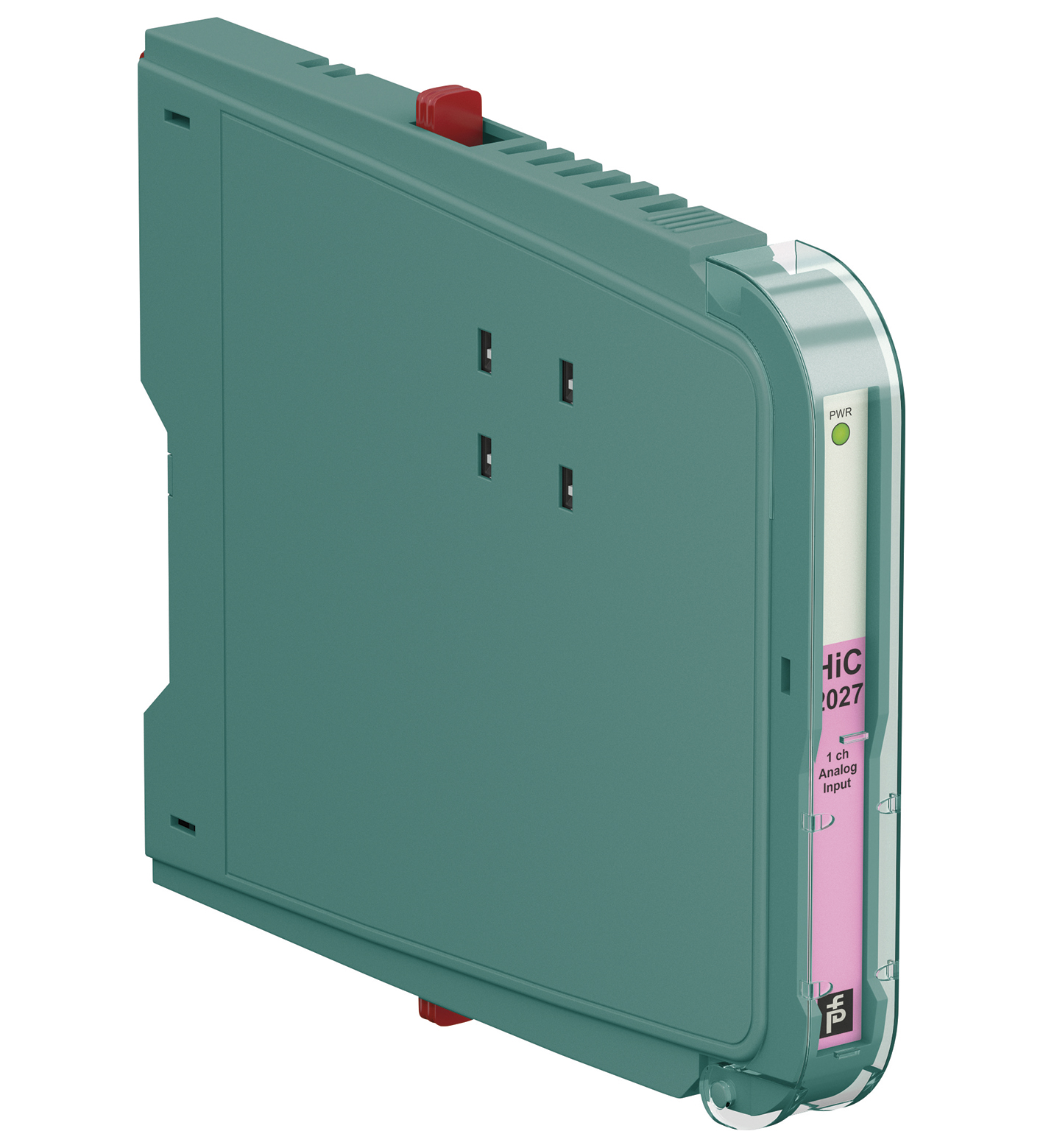

HiC2027 SMART Transmitter Power Supply

订货号
272951
产品分类
H 系统（端接板安装）

SMART Transmitter Power Supply

查看规格参数 资料与附件

TECHNICAL DATA

规格参数

General specifications
Signal typeAnalog input
Safety Integrity Level (SIL)SIL 2
Systematic capability (SC)SC 3

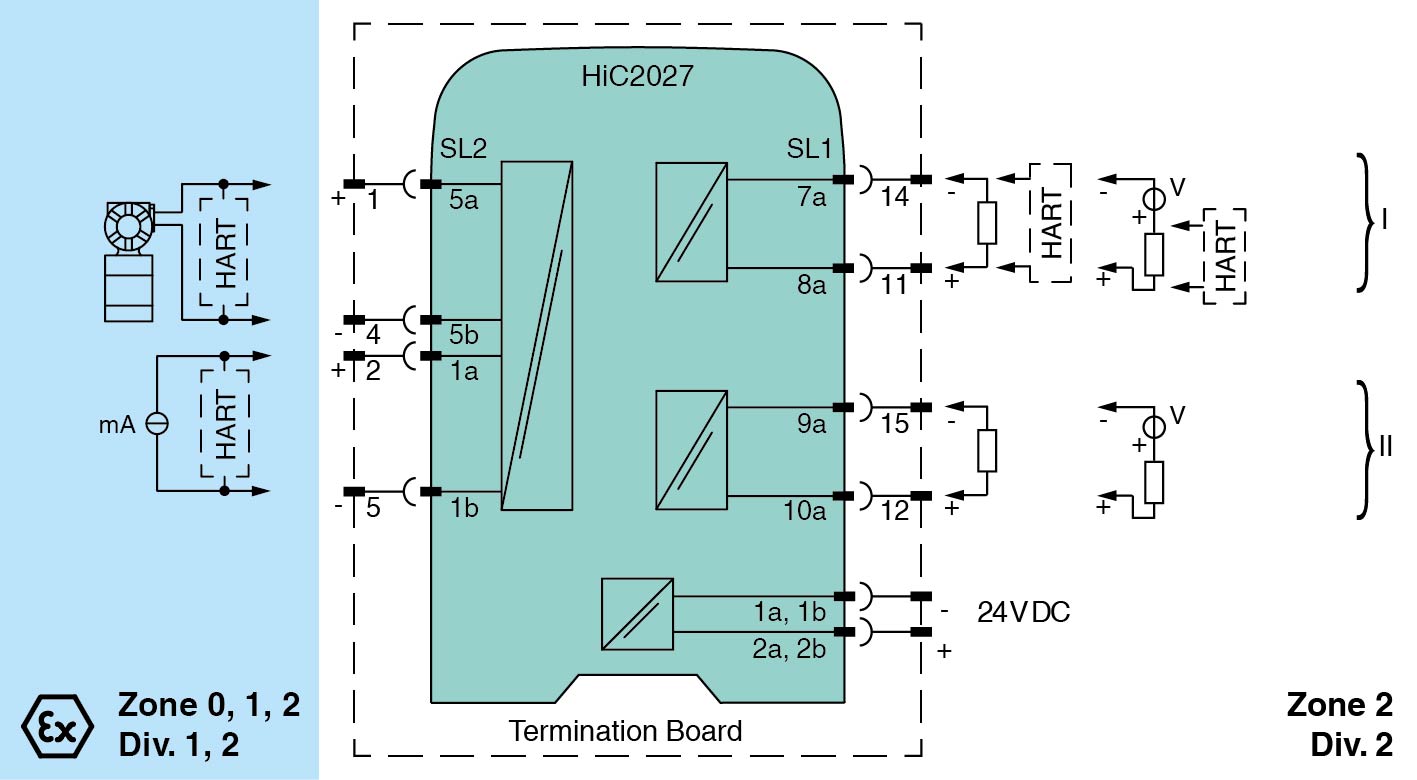

ConnectionSL1: 1a, 1b(-); 2a, 2b(+)
Rated voltage20 ... 30 V DC bus powered via Termination Board
Ripplewithin the supply tolerance
Rated current≤ 90 mA
Power dissipationapprox. 1.4 W at 20 mA transfer current, 250 Ω in both outputs
Power consumption2 W
Connection sidefield side
ConnectionSL2: 5a(+), 5b(-): sinkSL2: 1a(+), 1b(-), 7a(-): source
Input signal0/4 ... 20 mA
Voltage dropSL2: 1a(+), 1b(-), 7a(-): ≤ 6.1 V at 20 mA
Short-circuit currentSL2: 5a(+), 5b(-): 25 mA
Input resistanceSL2: 5a(+), 5b(-): max. 500 Ω (BRAIN) (250 Ω load)
Available voltageSL2: 5a(+), 5b(-): ≥ 16 V at 20 mA , ≥ 18.5 V at 4 mA
Connection sidecontrol side
ConnectionSL1: 8a(+), 7a(-), channel 1: source and sinkSL1: 10a(+), 9a(-), channel 2: source and sink
Loadchannel 1: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V)channel 2: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V)
Output signal0/4 ... 20 mA or 0/1 ... 5 V
Ripplemax. 50 µA rms
DeviationIout < 20 µA (0.1 %); Vout < 10 mV (0.2 %) incl. calibration, linearity, hysteresis and fluctuation of supply voltage, at 20 °C (68 °F), 0/4 ... 20 mA, 0/1 ... 5 V
Influence of ambient temperaturecurrent output: 0.25 µA/Kvoltage output: 80 µV/KInfluence of ambient temperaturecurrent output: 0.25 µA/Kvoltage output: 80 µV/K
Frequency rangefield side into the control side: bandwidth with 0.5 Vpp signal 0 ... 6 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0.3 ... 6 kHz (-3 dB)
Settling time6 ms
Rise time/fall time2 ms
Influence of ambient temperaturecurrent output: 0.25 µA/Kvoltage output: 80 µV/K
Output/power supplyfunctional insulation, rated insulation voltage 50 V AC
Output/Outputfunctional insulation, rated insulation voltage 50 V AC
Display elementsLED
Control elementsDIP switch
Factory settingoutput: current source
Configurationvia DIP switches
Labelingspace for labeling at the front
Electromagnetic compatibilityElectromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Electromagnetic compatibilityNE 21:2012 EN 61326-3-2:2008
Degree of protectionIEC 60529:2001
Protection against electrical shockUL 61010-1:2012
Ambient temperature-20 ... 60 °C (-4 ... 140 °F)
Degree of protectionIP20
Massapprox. 105 g
Dimensions12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D)
Height106 mmWidth12.5 mmDepth128 mmHeight106 mmWidth12.5 mmDepth128 mm
Mountingon termination board
Codingpin 2 and 3 trimmed For further information see system description.
Height106 mm
Width12.5 mm
Depth128 mm
EU-type examination certificateBASEEFA 13 ATEX 0075 X
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx iaMarking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx ia
SupplySupply
Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)
EquipmentSL2: 5a(+), 5b(-)
VoltageUo25.2 VVoltageUq28.2 VCurrentIo93 mAPowerPo656 mWInternal capacitanceCi12 nFInternal inductanceLi0 mHVoltageUo25.2 VVoltageUq28.2 VCurrentIo93 mAPowerPo656 mWInternal capacitanceCi12 nFInternal inductanceLi0 mH
EquipmentSL2: 1a(+), 1b(-), 7a(-)
VoltageUi30 VCurrentIi115 mAPowerPi700 mWVoltageUo5 VCurrentIo6.8 mAPowerPo1.6 mWInternal capacitanceCi12 nFInternal inductanceLi0 mHVoltageUi30 VCurrentIi115 mAPowerPi700 mWVoltageUo5 VCurrentIo6.8 mAPowerPo1.6 mWInternal capacitanceCi12 nFInternal inductanceLi0 mH
OutputOutput
Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)
CertificateBASEEFA 13 ATEX 0076 X
Marking II 3G Ex nA IIC T4 GcMarking II 3G Ex nA IIC T4 Gc
Galvanic isolationGalvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformityDirective conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
MarkingII (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
InputEx ia
Maximum safe voltage250 V (Attention! The rated voltage can be lower.)
Voltage25.2 V
Voltage28.2 V
Current93 mA
Power656 mW
Internal capacitance12 nF
Internal inductance0 mH
Voltage30 V
Current115 mA
Power700 mW
Voltage5 V
Current6.8 mA
Power1.6 mW
Internal capacitance12 nF
Internal inductance0 mH
Maximum safe voltage250 V (Attention! The rated voltage can be lower.)
MarkingII 3G Ex nA IIC T4 Gc
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
UL approvalE106378
Control drawing116-0349 (cULus)Control drawing116-0349 (cULus)
IECEx approvalIECEx approval
IECEx certificateIECEx BAS 13.0042XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] IIECEx certificateIECEx BAS 13.0042XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I
Control drawing116-0349 (cULus)
IECEx certificateIECEx BAS 13.0042X
IECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I
Supplementary informationObserve the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
