HiC2031ES

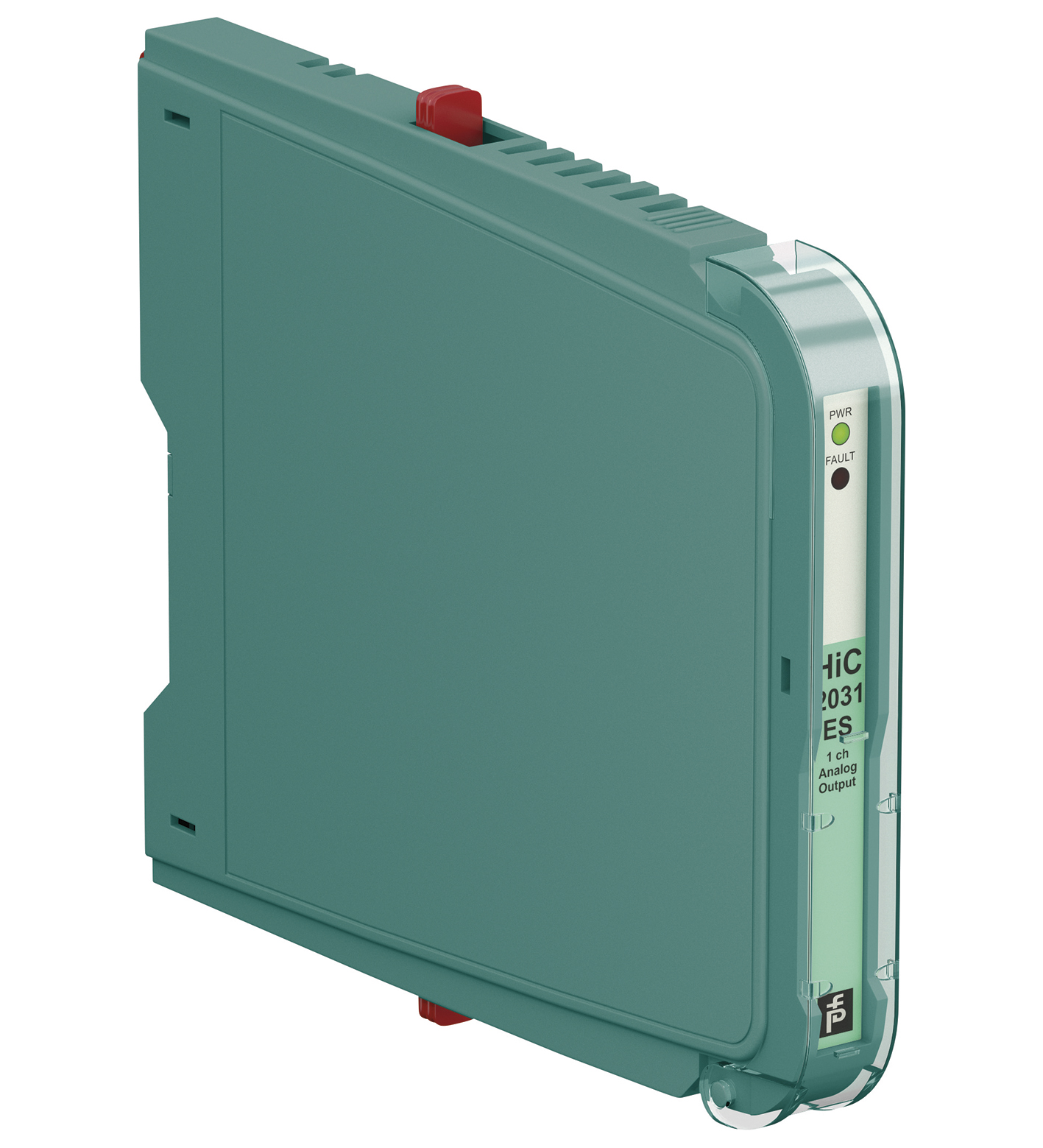

HiC2031ES SMART Current Driver

订货号: 70101789
产品分类: H 系统（端接板安装）

SMART Current Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog output
Safety Integrity Level (SIL)	SIL 3

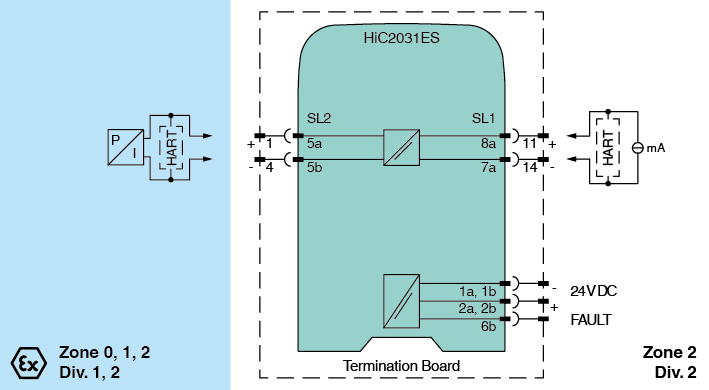

Connection	SL1: 1a(-), 1b(-); 2a(+), 2b(+)
Rated voltage	19 ... 30 V DC bus powered via Termination Board
Ripple	≤ 10 %
Rated current	≤ 33 mA at 24 V
Power dissipation	≤ 700 mW at 20 mA and 500 Ω load
Power consumption	≤ 800 mW
Connection side	control side
Connection	SL1: 8a(+), 7a(-)
Input signal	4 ... 20 mA , limited to approx. 25 mA
Input voltage	open loop voltage of the control system < 30 V
Voltage drop	approx. 6 V at 20 mA
Input resistance	> 100 kΩ, with field wiring open or < 50 Ω
Connection side	field side
Connection	SL2: 5a(+), 5b(-)
Voltage	≥ 13 V at 20 mA
Current	4 ... 20 mA
Load	100 ... 650 Ω
Ripple	20 mV rms
Line fault detection	field wiring open or < 50 Ω and test current < 2 mA
Connection	SL1: 6b
Output type	open collector transistor (internal fault bus)
Deviation	at 20 °C (68 °F), 4 ... 20 mA< 0.1 % of full scale, incl. non-linearity and hysteresis
Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))	Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))
Frequency range	field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB) control side into the field side: bandwidth with 1 mApp signal 0 ... 3 kHz (-3 dB)
Rise time	10 to 90 % ≤ 10 ms
Influence of ambient temperature	< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supply	basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff
Output/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Display elements	LEDs
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2017 EN 61326-3-2:2018 For further information see system description.
Degree of protection	IEC 60529:2001
Protection against electrical shock	UL 61010-1:2012
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of protection	IP20
Mass	approx. 100 g
Dimensions	12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D)
Height106 mmWidth12.5 mmDepth128 mm	Height106 mmWidth12.5 mmDepth128 mm
Mounting	on termination board
Coding	pin 1 and 3 trimmed For further information see system description.
Height	106 mm
Width	12.5 mm
Depth	128 mm
EU-type examination certificate	CESI 20 ATEX 007 X
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia	Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia
Supply	Supply
Maximum safe voltageUm250 V AC (Attention! Um is no rated voltage.)	Maximum safe voltageUm250 V AC (Attention! Um is no rated voltage.)
Equipment	SL2: 5a(+), 5b(-)
VoltageUo25.2 VCurrentIo100 mAPowerPo630 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible	VoltageUo25.2 VCurrentIo100 mAPowerPo630 mWInternal capacitanceCi5.7 nFInternal inductanceLinegligible
Certificate	CESI 20 ATEX 008 X
Marking II 3G Ex ec IIC T4 Gc	Marking II 3G Ex ec IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-11:2012 , EN 60079-7:2015	Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-11:2012 , EN 60079-7:2015
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Output	Ex ia
Maximum safe voltage	250 V AC (Attention! Um is no rated voltage.)
Voltage	25.2 V
Current	100 mA
Power	630 mW
Internal capacitance	5.7 nF
Internal inductance	negligible
Marking	II 3G Ex ec IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018 , EN 60079-11:2012 , EN 60079-7:2015
UL approval	E106378
Control drawing116-0472 (cULus)	Control drawing116-0472 (cULus)
IECEx approval	IECEx approval
IECEx certificateIECEx CES 20.0008XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc	IECEx certificateIECEx CES 20.0008XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Control drawing	116-0472 (cULus)
IECEx certificate	IECEx CES 20.0008X
IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
