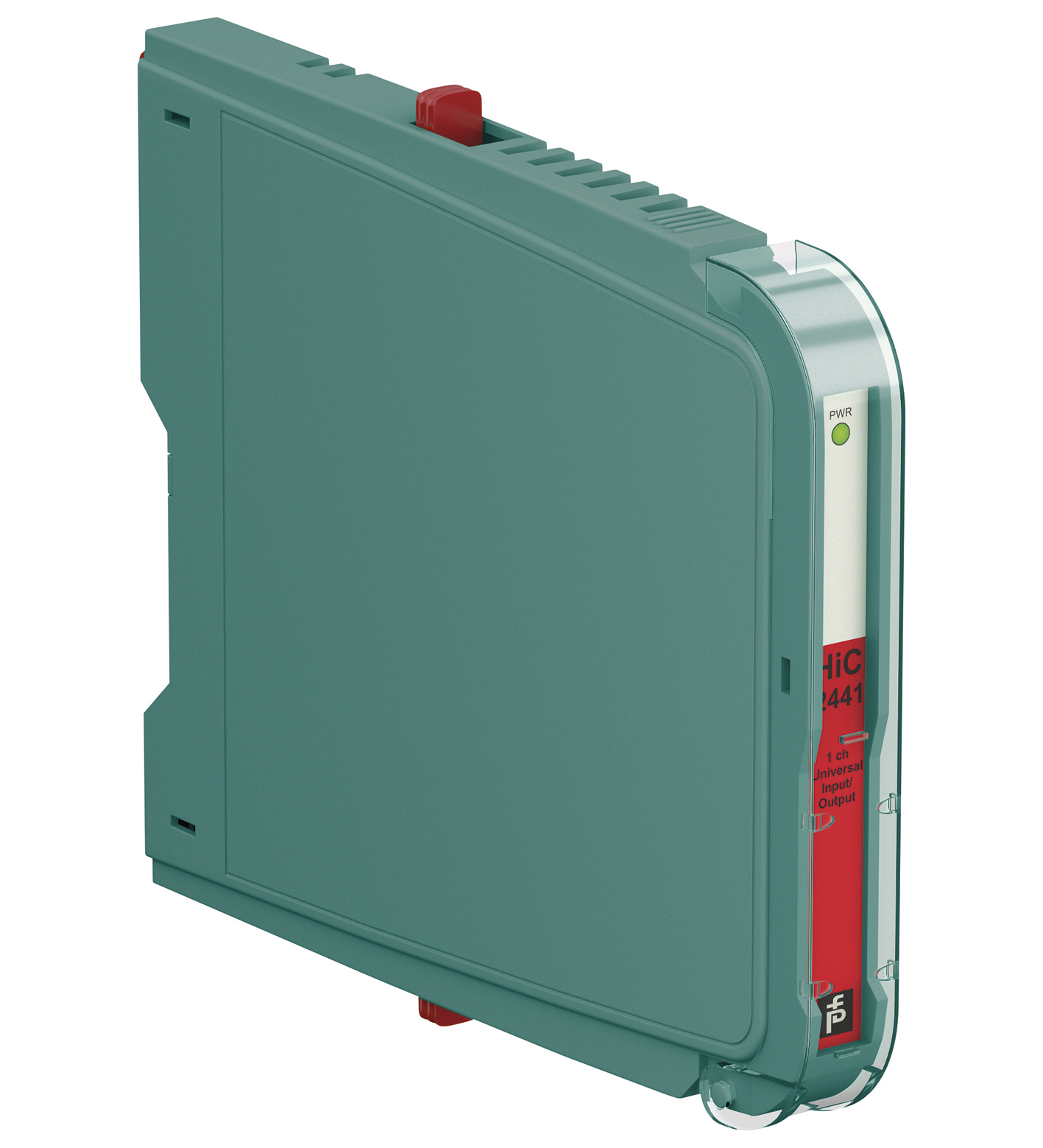

TECHNICAL DATA
规格参数
General specifications
| Signal type | Universal |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Systematic capability (SC) | SC 2 |

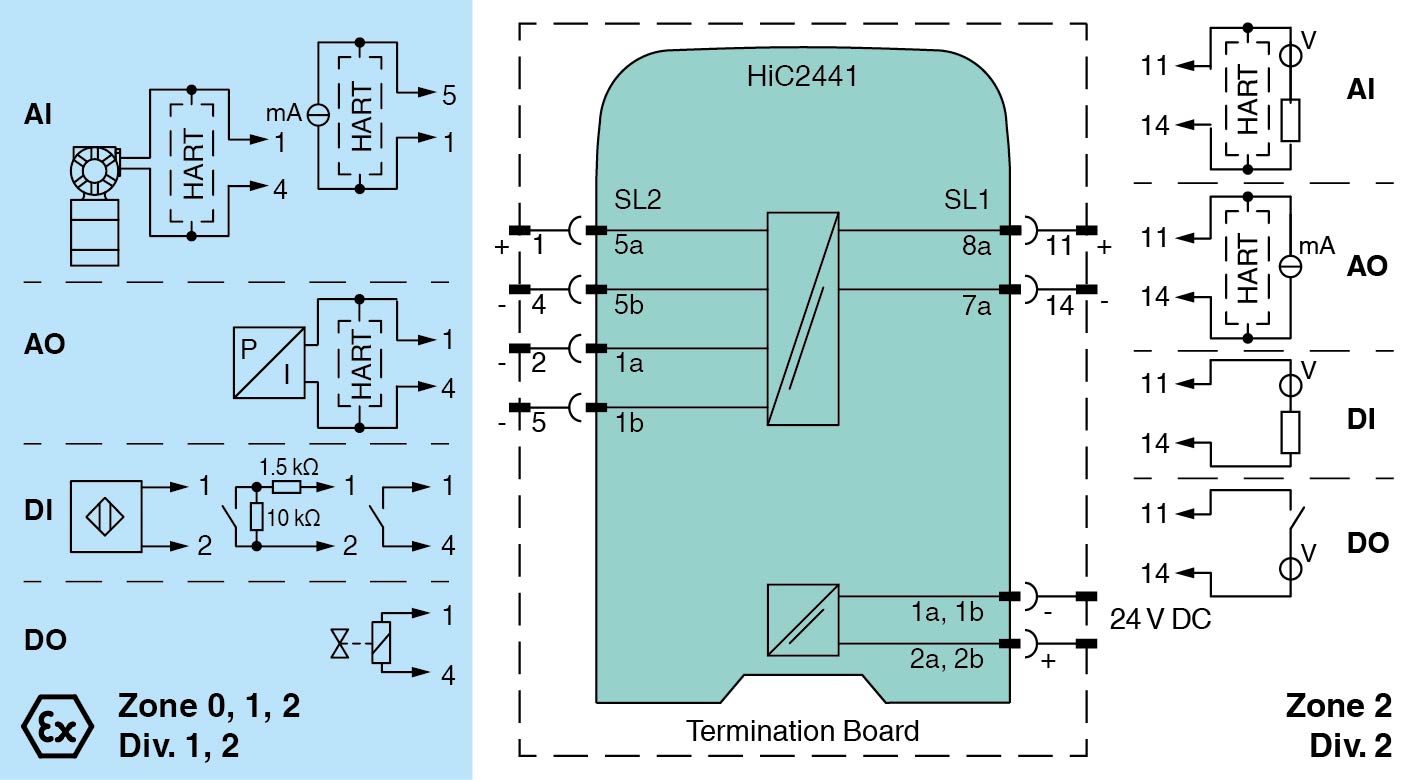

| Connection | SL1: 1a, 1b(-); 2a, 2b(+) |
| Rated voltage | 19 ... 30 V DC bus powered via Termination Board |
| Ripple | ≤ 10 % |
| Rated current | ≤ 30 mA |
| Power consumption | ≤ 700 mW |
| Suitable field devices | 2-wire SMART transmitters, current sources |
| Signal | 0/4 ... 20 mA , limited to approx. 40 mA (depends on control system) , reverse polarity protected |
| Field circuit | SL2: 5a(+), 5b(-) (2-wire SMART transmitter)SL2: 5a(+), 1b(-) (2-wire SMART transmitter with current source) |
| Voltage drop | approx. 4 V (current source) |
| Control circuit | SL1: 8a(+), 7a(-) |
| Supply voltage | min. 16 V at 20 mA (2-wire SMART transmitter) |
| Voltage | 15 ... 30 V |
| Signal | 0/4 ... 20 mA , sink mode , working voltage 15 ... 30 V |
| Ripple | 20 mV rms |
| Suitable field devices | I/P converters (positioner), on-site-displays |
| Signal | 0/4 ... 20 mA |
| Field circuit | SL2: 5a(+), 5b(-) |
| Load | 0 ... 650 Ω |
| Voltage | ≥ 13 V at 20 mA |
| Ripple | 20 mV rms |
| Control circuit | SL1: 8a(+), 7a(-) |
| Voltage | 12 ... 30 V |
| Signal | 0/4 ... 20 mA |
| Line fault detection | > 100 kΩ at max. 30 V, with field wiring open |
| Field circuit | SL2: 5a(+), 1a(-) (NAMUR sensor)SL2: 5a(+), 5b(-) (dry contact) |
| Suitable field devices | NAMUR sensors according to IEC/EN 60947-5-6, dry contacts |
| Signal | 0.1 ... 9 mA , sink mode |
| Open loop voltage | approx. 10 V DC , 1 kΩ series resistance |
| Signal | 0.1 ... 9 mA |
| Control circuit | SL1: 8a(+), 7a(-) |
| Voltage | 13 ... 30 V |
| Field circuit | SL2: 5a(+), 5b(-) |
| Suitable field devices | Solenoid Valve , audible alarm , visual alarm |
| Drive capability | 12 V / 40 mA at 300 Ω load |
| Internal resistor | min. 240 Ω |
| Current | 40 mA |
| Voltage | 12 V |
| Current limit | 45 mA |
| Open loop voltage | approx. 22 V |
| Control circuit | SL1: 8a(+), 7a(-) |
| Voltage | 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC |
| Current | 1-signal: 0 ... 45 mA, depending on the output load 0-signal: < 0.1 mA, independent of the output load |
| Power dissipation | 1.1 W at 24 V, 300 Ω load (digital output) |
| Deviation | at 20 °C (68 °F) ≤ ±20 µA incl. linearity, hysteresis and supply fluctuations at 4 ... 20 mA (analog input, analog output) ≤ ±60 µA incl. linearity, hysteresis and supply fluctuations at 0 ... 45 mA (digital output) |
| Influence of ambient temperature< 2 µA/K (0 ... 70 °C (32 ... 158 °F)) < 3 µA/K (-40 ... 0 °C (-40 ... 32 °F)) | Influence of ambient temperature< 2 µA/K (0 ... 70 °C (32 ... 158 °F)) < 3 µA/K (-40 ... 0 °C (-40 ... 32 °F)) |
| Switching frequency | ≤ 500 Hz with 50 % duty cycle (digital input, NAMUR sensor) ≤ 5 Hz (digital input, dry contact) ≤ 20 Hz (digital output) |
| Frequency range | HART: bandwidth by 0.5 Vpp signal and/or 1 mApp signal 950 ... 2500 Hz (analog input, analog output) |
| Settling time | ≤ 20 ms (analog input, analog output) ≤ 1 ms (digital input, NAMUR sensor) |
| Reaction time | ≤ 5 ms , turn-on/turn-off time (digital output) |
| Influence of ambient temperature | < 2 µA/K (0 ... 70 °C (32 ... 158 °F)) < 3 µA/K (-40 ... 0 °C (-40 ... 32 °F)) |
| Control/power supply | basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff |
| Display elements | LED |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2012For further information see system description. |
| Degree of protection | IEC 60529:2001 |
| Protection against electrical shock | IEC 61010-1:2010 |
| Input | EN 60947-5-6:2000 |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) Observe the temperature range limited by derating, see section derating. |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Degree of protection | IP20 |
| Mass | approx. 105 g |
| Dimensions | 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D) |
| Height106 mmWidth12.5 mmDepth128 mm | Height106 mmWidth12.5 mmDepth128 mm |
| Mounting | on termination board |
| Coding | pin 1 and 4 trimmed For further information see system description. |
| Height | 106 mm |
| Width | 12.5 mm |
| Depth | 128 mm |
| EU-type examination certificate | TÜV 14 ATEX 153522 X |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Supply | Supply |
| Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.) | Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.) |
| Equipment | SL2: 5a(+), 5b(-) |
| VoltageUo25.2 VCurrentIo110 mAPowerPo693 mWInternal capacitanceCi5.7 nFInternal inductanceLi0 mH | VoltageUo25.2 VCurrentIo110 mAPowerPo693 mWInternal capacitanceCi5.7 nFInternal inductanceLi0 mH |
| Equipment | SL2: 5a(+), 1b(-) |
| VoltageUi< 28 VCurrentIi< 115 mAVoltageUo7.2 VCurrentIo0 mAPowerPo0 mWInternal capacitanceCi5.7 nFInternal inductanceLi0 mH | VoltageUi< 28 VCurrentIi< 115 mAVoltageUo7.2 VCurrentIo0 mAPowerPo0 mWInternal capacitanceCi5.7 nFInternal inductanceLi0 mH |
| Equipment | SL2: 5a(+), 1a(-) |
| VoltageUo12.6 VCurrentIo13 mAPowerPo41 mWInternal capacitanceCi5.7 nFInternal inductanceLi0 mH | VoltageUo12.6 VCurrentIo13 mAPowerPo41 mWInternal capacitanceCi5.7 nFInternal inductanceLi0 mH |
| Certificate | TÜV 14 ATEX 153523 X |
| Marking II 3G Ex ec IIC T4 Gc | Marking II 3G Ex ec IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Maximum safe voltage | 250 V (Attention! The rated voltage can be lower.) |
| Voltage | 25.2 V |
| Current | 110 mA |
| Power | 693 mW |
| Internal capacitance | 5.7 nF |
| Internal inductance | 0 mH |
| Voltage | < 28 V |
| Current | < 115 mA |
| Voltage | 7.2 V |
| Current | 0 mA |
| Power | 0 mW |
| Internal capacitance | 5.7 nF |
| Internal inductance | 0 mH |
| Voltage | 12.6 V |
| Current | 13 mA |
| Power | 41 mW |
| Internal capacitance | 5.7 nF |
| Internal inductance | 0 mH |
| Marking | II 3G Ex ec IIC T4 Gc |
| Input/Other circuits | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 |
| UL approval | E106378 |
| Control drawing116-0408 (cULus) | Control drawing116-0408 (cULus) |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx TUN 15.0004XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc | IECEx certificateIECEx TUN 15.0004XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc |
| Control drawing | 116-0408 (cULus) |
| IECEx certificate | IECEx TUN 15.0004X |
| IECEx marking | [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
