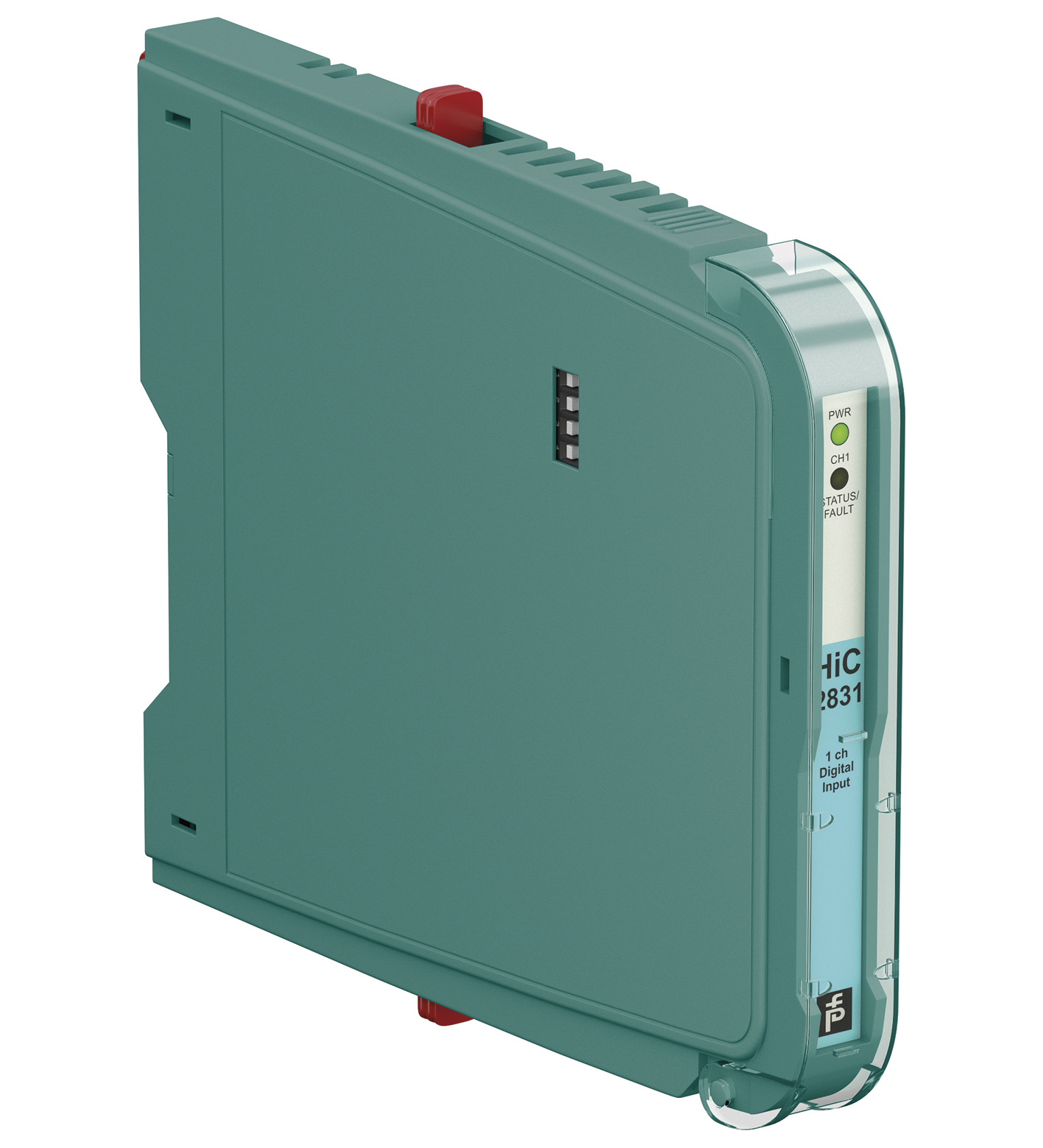

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Input |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Systematic capability (SC) | SC 3 |

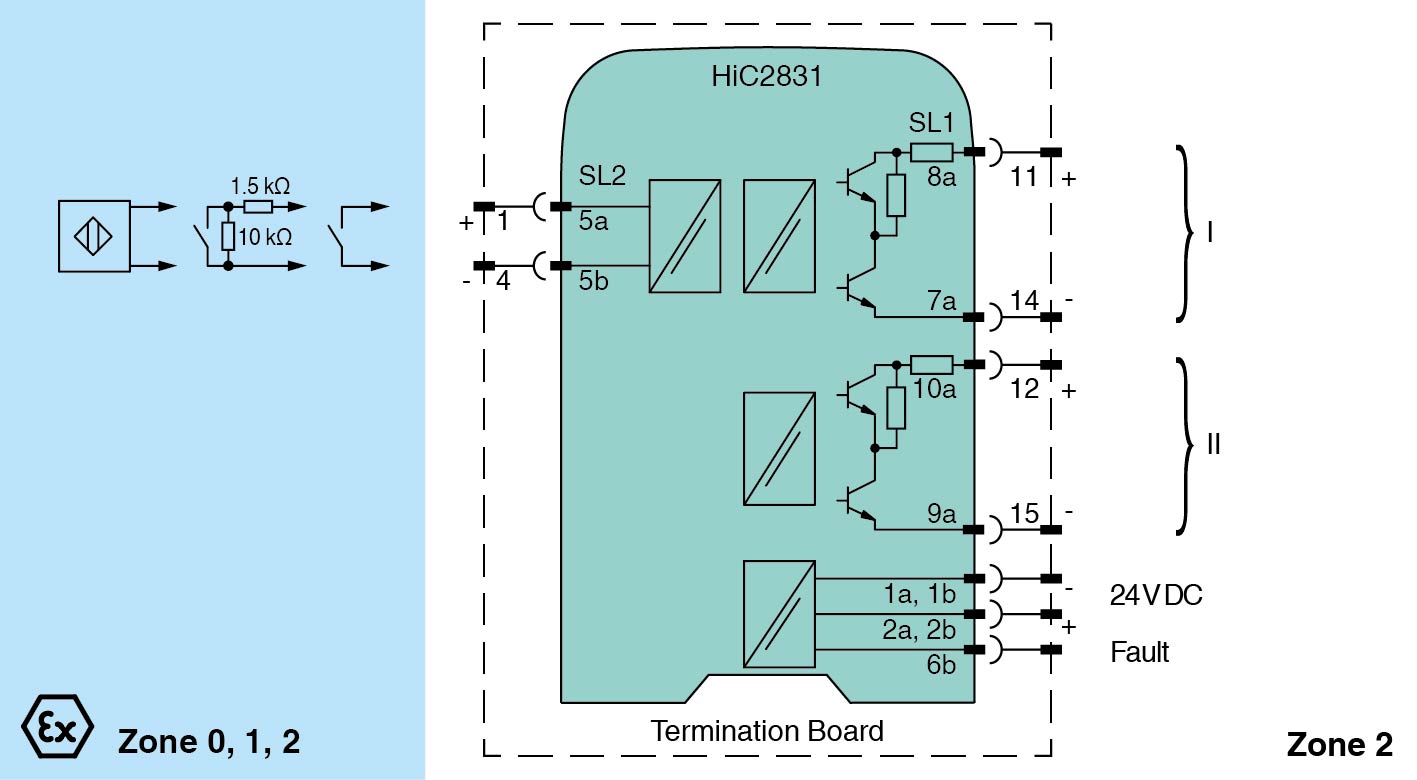

| Connection | SL1: 1a(-), 1b(-); 2a(+), 2b(+) |
| Rated voltage | 19 ... 30 V DC bus powered via Termination Board |
| Ripple | ≤ 10 % |
| Rated current | ≤ 25 mA |
| Power dissipation | ≤ 500 mW |
| Power consumption | ≤ 600 mW |
| Connection side | field side |
| Connection | SL2: 5a(+), 5b(-) |
| Rated values | acc. to EN 60947-5-6 (NAMUR), see manual for electrical data |
| Open circuit voltage/short-circuit current | approx. 10 V DC / approx. 8 mA |
| Switching point/switching hysteresis | 1.2 ... 2.1 mA / approx. 0.2 mA |
| Line fault detection | breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA |
| Pulse/Pause ratio | min. 100 µs / min. 100 µs |
| Connection side | control side |
| Connection | SL1: 8a(+), 7a(-); 10a(+), 9a(-) |
| Rated voltage | 8 V DC |
| Response time | ≤ 200 µs |
| Output I, II | signal or fault message, passive transistor output (resistive) 0-signal: 14 kΩ ± 10 %1-signal: 1.8 kΩ ± 10 % fault: > 100 kΩ |
| Connection | SL1: 6b |
| Output type | open collector transistor (internal fault bus) |
| Switching frequency | ≤ 5 kHz |
| Output/power supply | basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff |
| Output/Output | basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff |
| Display elements | LEDs |
| Control elements | DIP switch |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | EN IEC 61326-3-2:2018 , NE 21:2017For further information see system description. |
| Degree of protection | IEC 60529:2001 |
| Protection against electrical shock | IEC 61010-1 |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Degree of protection | IP20 |
| Mass | approx. 90 g |
| Dimensions | 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D) |
| Height106 mmWidth12.5 mmDepth128 mm | Height106 mmWidth12.5 mmDepth128 mm |
| Mounting | on termination board |
| Coding | pin 1 and 2 trimmed For further information see system description. |
| Height | 106 mm |
| Width | 12.5 mm |
| Depth | 128 mm |
| EU-type examination certificate | BVS 11 ATEX E 026 |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx iaVoltageUo10.5 VCurrentIo17.1 mAPowerPo45 mW (linear characteristic) | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx iaVoltageUo10.5 VCurrentIo17.1 mAPowerPo45 mW (linear characteristic) |
| Supply | Supply |
| Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) | Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) |
| Output | Output |
| Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) | Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) |
| Certificate | KIWA 15 ATEX 0037 X |
| Marking II 3G Ex ec IIC T4 Gc | Marking II 3G Ex ec IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 , EN 50303:2000 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 , EN 50303:2000 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Input | Ex ia |
| Voltage | 10.5 V |
| Current | 17.1 mA |
| Power | 45 mW (linear characteristic) |
| Maximum safe voltage | 253 V AC (Attention! Um is no rated voltage.) |
| Maximum safe voltage | 253 V AC (Attention! Um is no rated voltage.) |
| Marking | II 3G Ex ec IIC T4 Gc |
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Input/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 , EN 50303:2000 |
| FM approval | FM approval |
| Control drawing116-0430 (cFMus) | Control drawing116-0430 (cFMus) |
| UL approval | E106378 |
| Control drawing116-0331 | Control drawing116-0331 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx BVS 11.0040 IECEx KIWA 15.0019XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I , Ex ec IIC T4 Gc | IECEx certificateIECEx BVS 11.0040 IECEx KIWA 15.0019XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I , Ex ec IIC T4 Gc |
| Control drawing | 116-0430 (cFMus) |
| Control drawing | 116-0331 |
| IECEx certificate | IECEx BVS 11.0040 IECEx KIWA 15.0019X |
| IECEx marking | [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I , Ex ec IIC T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
