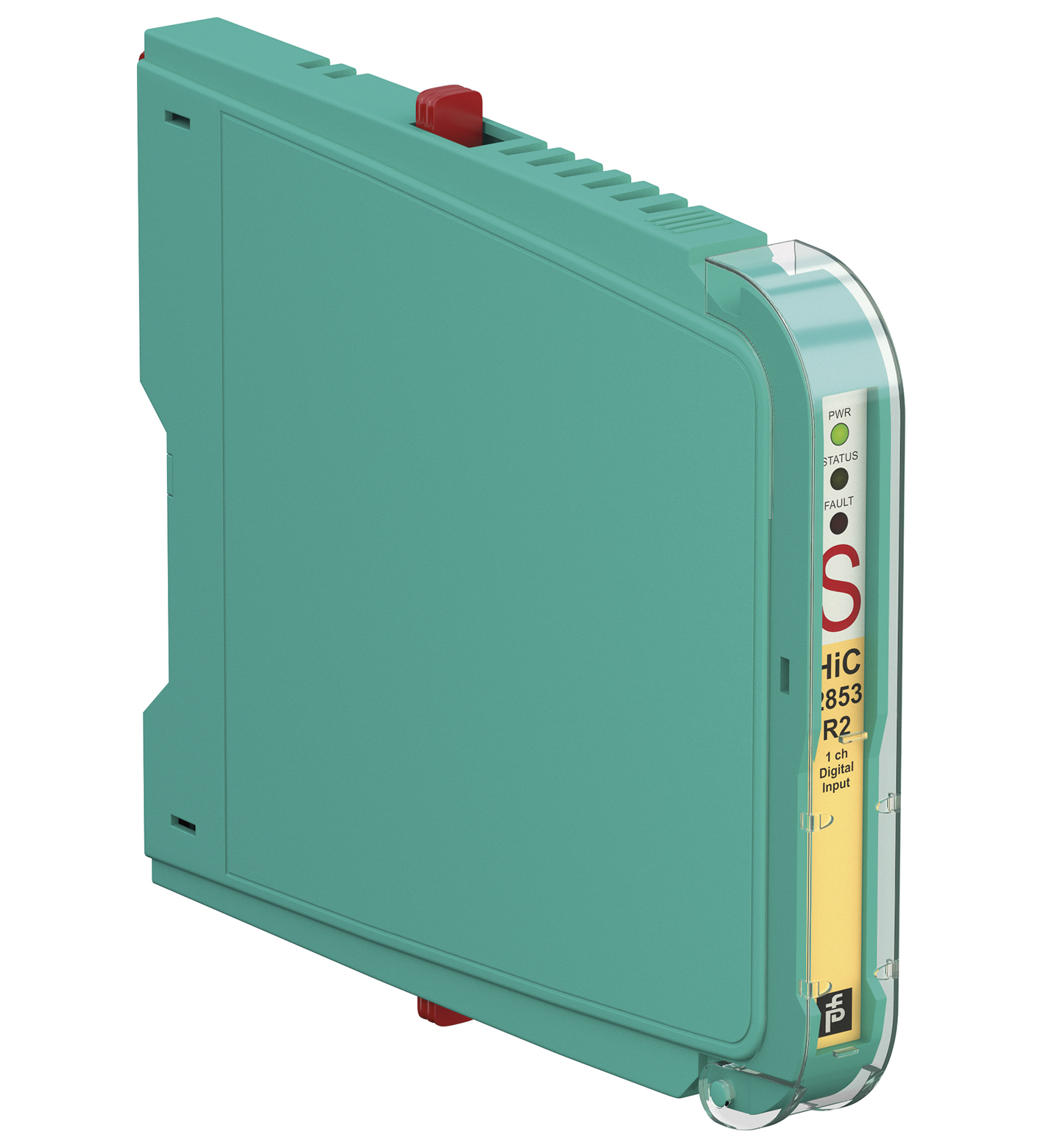

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Input |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Systematic capability (SC) | SC 3 |

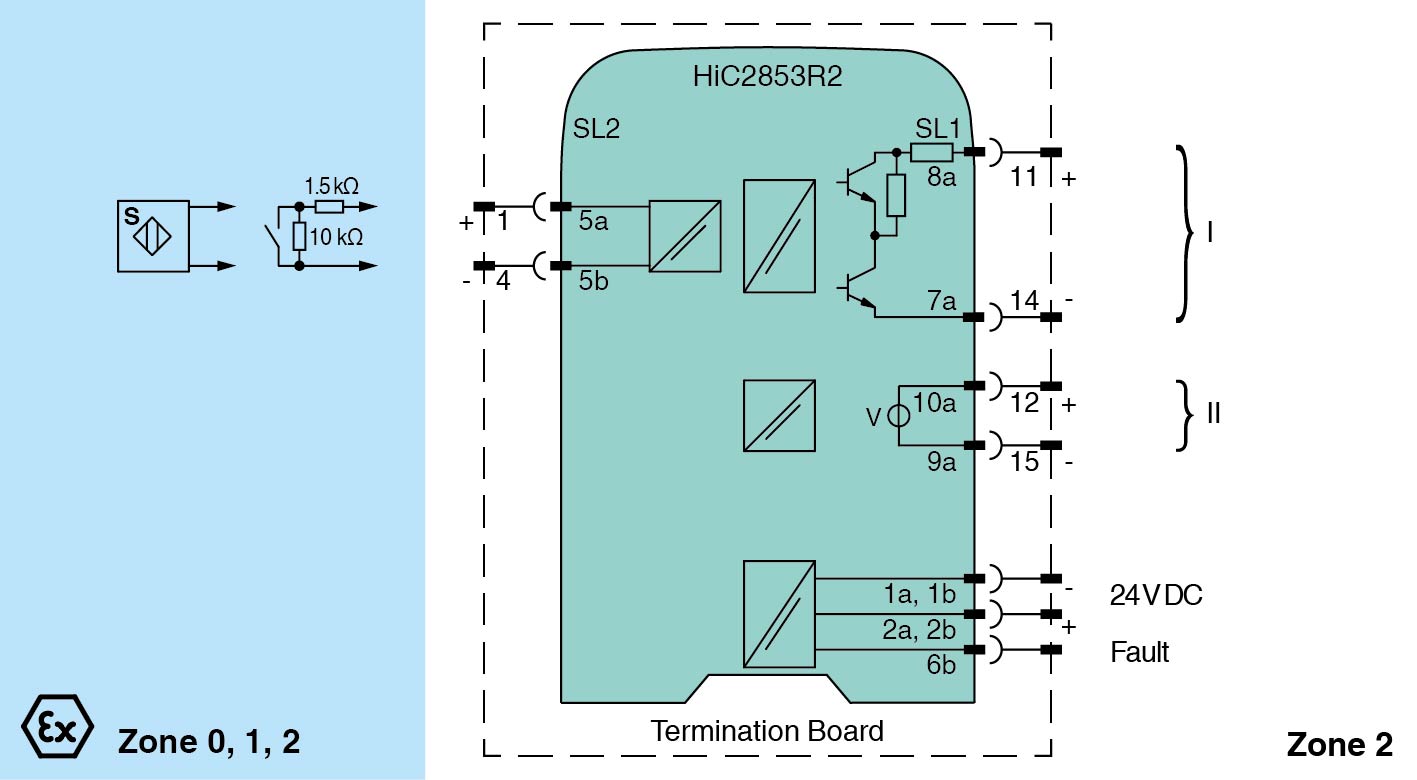

| Connection | SL1: 1a(-), 1b(-); 2a(+), 2b(+) |
| Rated voltage | 19 ... 30 V DC bus powered via Termination Board |
| Ripple | ≤ 10 % |
| Rated current | ≤ 55 mA |
| Power dissipation | ≤ 800 mW |
| Power consumption | ≤ 1300 mW |
| Connection side | field side |
| Connection | SL2: 5a(+), 5b(-) |
| Open circuit voltage/short-circuit current | approx. 8.4 V DC / approx. 11.9 mA |
| Switching point/switching hysteresis | 2.1 ... 2.8 mA / approx. 0.3 mA |
| Line fault detection | breakage I ≤ 0.15 mA , short-circuit I ≥ 8.5 mA |
| Lead resistance | max. 50 Ω , consider capacitances and inductances |
| Switching point | 1-signal: I > 2.8 mA0-signal: I < 2.1 mA |
| Response delay | ≤ 1 ms |
| Connection side | control side |
| Connection | SL1: 8a(+), 7a(-); 10a(+), 9a(-) |
| Rated voltage | output I: 19 ... 30 V DC |
| Output I | passive transistor output (resistive) 0-signal: 15 kΩ ± 5 %1-signal: 5 kΩ ± 5 % fault: > 100 kΩ |
| Output II | active voltage output, short-circuit proof 0-signal: 0 V1-signal: 20 ... 31 V DC at max. 15 mA fault: 0 V |
| Connection | SL1: 6b |
| Output type | open collector transistor (internal fault bus) |
| Switching frequency | Switching frequency |
| Output I≤ 50 HzOutput II≤ 50 Hz | Output I≤ 50 HzOutput II≤ 50 Hz |
| Output I | ≤ 50 Hz |
| Output II | ≤ 50 Hz |
| Output/power supply | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| Output/Output | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| Display elements | LEDs |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | EN IEC 61326-3-2:2018 , NE 21:2017For further information see system description. |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Mass | approx. 105 g |
| Dimensions | 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D) |
| Height106 mmWidth12.5 mmDepth128 mm | Height106 mmWidth12.5 mmDepth128 mm |
| Mounting | on termination board |
| Coding | pin 1 and 2 trimmed For further information see system description. |
| Height | 106 mm |
| Width | 12.5 mm |
| Depth | 128 mm |
| EU-type examination certificate | BASEEFA 07 ATEX 0302X |
| Marking II (1)G [Ex ia] IIC , [exsign] II (1) D [Ex ia] IIIC , [exsign] I (M1) [Ex ia] IInputEx iaVoltageUo10.5 VCurrentIo17.1 mAPowerPo45 mW (linear characteristic) | Marking II (1)G [Ex ia] IIC , [exsign] II (1) D [Ex ia] IIIC , [exsign] I (M1) [Ex ia] IInputEx iaVoltageUo10.5 VCurrentIo17.1 mAPowerPo45 mW (linear characteristic) |
| Supply | Supply |
| Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) | Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) |
| Output | Output |
| Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) | Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) |
| Certificate | PF 09 CERT 1440 X |
| Marking II 3G Ex nA IIC T4 Gc | Marking II 3G Ex nA IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| Marking | II (1)G [Ex ia] IIC , [exsign] II (1) D [Ex ia] IIIC , [exsign] I (M1) [Ex ia] I |
| Input | Ex ia |
| Voltage | 10.5 V |
| Current | 17.1 mA |
| Power | 45 mW (linear characteristic) |
| Maximum safe voltage | 253 V AC (Attention! Um is no rated voltage.) |
| Maximum safe voltage | 253 V AC (Attention! Um is no rated voltage.) |
| Marking | II 3G Ex nA IIC T4 Gc |
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Input/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| UL approval | E106378 |
| Control drawing116-0364 | Control drawing116-0364 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx BAS 07.0097XIECEx marking[Ex ia Ga] IIC, [Ex ia] IIIC , [Ex ia] I | IECEx certificateIECEx BAS 07.0097XIECEx marking[Ex ia Ga] IIC, [Ex ia] IIIC , [Ex ia] I |
| Control drawing | 116-0364 |
| IECEx certificate | IECEx BAS 07.0097X |
| IECEx marking | [Ex ia Ga] IIC, [Ex ia] IIIC , [Ex ia] I |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
