HiC2871

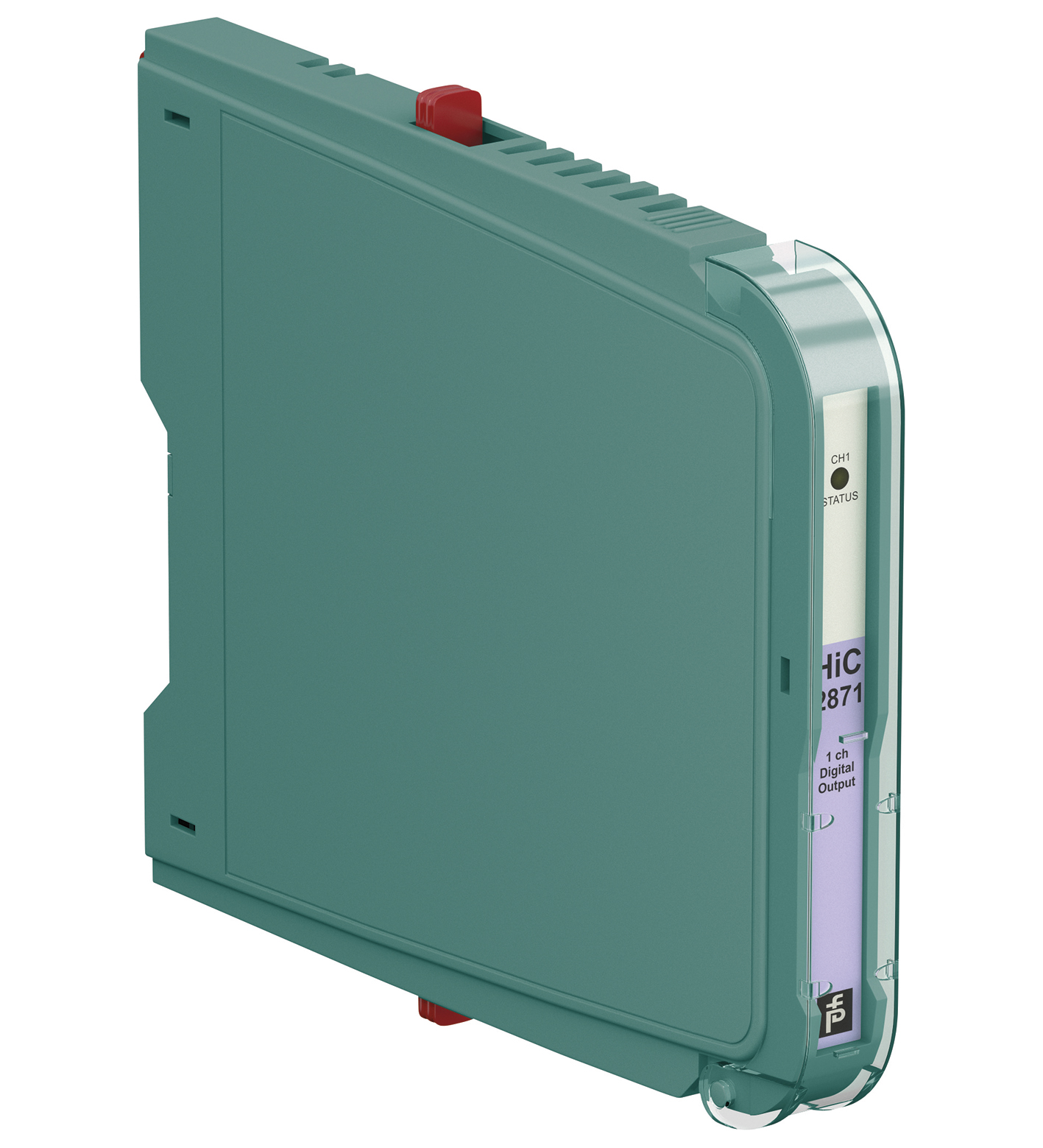

HiC2871 Solenoid Driver

订货号: 233883
产品分类: H 系统（端接板安装）

Solenoid Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Connection	loop powered
Rated voltage	19 ... 30 V DC loop powered
Power dissipation	< 1 W

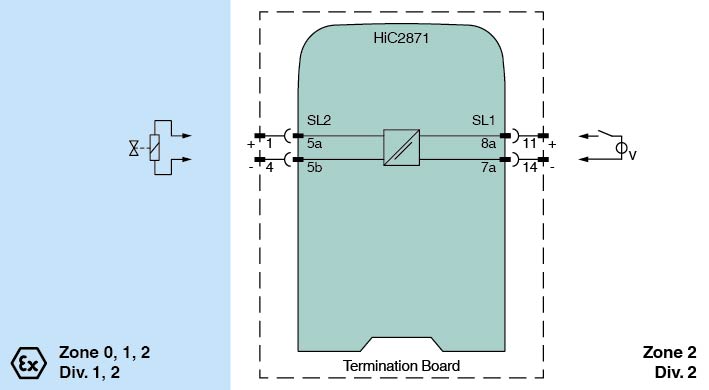

Connection side	control side
Connection	SL1: 8a(+), 7a(-)
Rated voltage	19 ... 30 V loop powered
Current	≤ 72 mA at Ui = 19 V, ≤ 50 mA at Ui = 30 V with 265 Ω output load≤ 45 mA at Ui = 19 V, ≤ 31 mA at Ui = 30 V with shorted output≤ 14 mA at Ui = 19 V, ≤ 11 mA at Ui = 30 V no load at output
Inrush current	≤ 200 mA after 100 µs
Connection side	field side
Connection	SL2: 5a(+), 5b(-)
Internal resistor	≤ 238 Ω
Current	≤ 45 mA
Voltage	≥ 12 V
Open loop voltage	≥ 22.7 V
Output signal	These values are valid for the rated operating voltage 19 ... 30 V DC.
Energized/De-energized delay	single operation: typ. 1.7 ms/50 µs; periodical: typ. 5 µs/50 µs
Display elements	LED
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2006For further information see system description.
Degree of protection	IEC 60529:2001
Protection against electrical shock	EN 61010-1:2010
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Mass	approx. 100 g
Dimensions	12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D)
Height106 mmWidth12.5 mmDepth128 mm	Height106 mmWidth12.5 mmDepth128 mm
Mounting	on termination board
Coding	pin 1 and 4 trimmed For further information see system description.
Height	106 mm
Width	12.5 mm
Depth	128 mm
EU-type examination certificate	BASEEFA 06 ATEX 0171X
Marking II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I (-20 °C ≤ Tamb ≤ 60 °C) Output[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] IVoltageUo25.2 VCurrentIo110 mAPowerPo693 mW	Marking II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I (-20 °C ≤ Tamb ≤ 60 °C) Output[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] IVoltageUo25.2 VCurrentIo110 mAPowerPo693 mW
Input	Input
Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)
Certificate	PF 08 CERT 1048 X
Marking II 3G Ex nA IIC T4 Gc	Marking II 3G Ex nA IIC T4 Gc
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I (-20 °C ≤ Tamb ≤ 60 °C)
Output	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Voltage	25.2 V
Current	110 mA
Power	693 mW
Maximum safe voltage	250 V (Attention! The rated voltage can be lower.)
Marking	II 3G Ex nA IIC T4 Gc
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
FM approval	FM approval
Control drawing16-534FM-12 (cFMus)	Control drawing16-534FM-12 (cFMus)
IECEx approval	IECEx approval
IECEx certificateIECEx BAS 06.0031XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I	IECEx certificateIECEx BAS 06.0031XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Control drawing	16-534FM-12 (cFMus)
IECEx certificate	IECEx BAS 06.0031X
IECEx marking	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
