HiC2871A

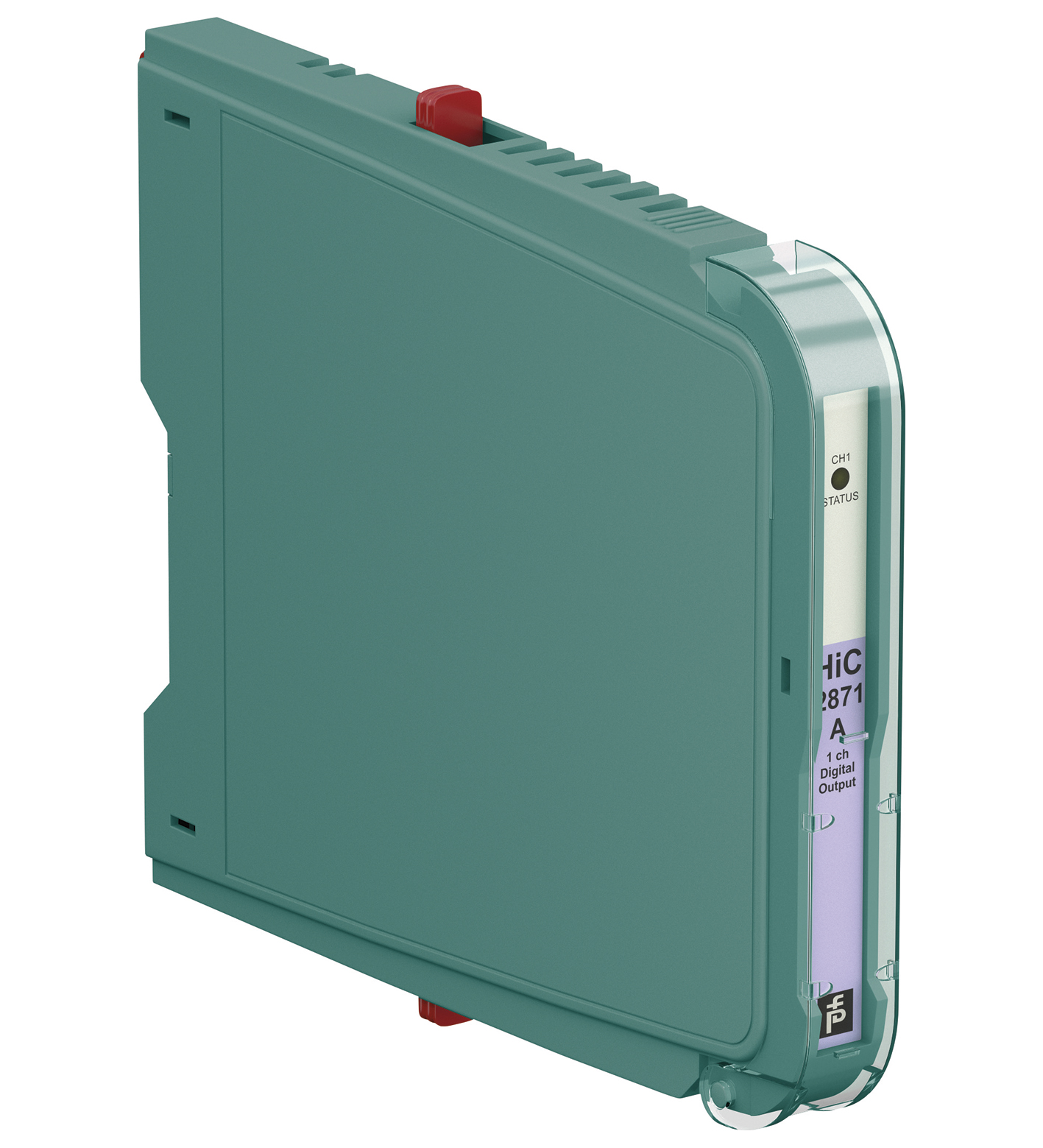

HiC2871A Solenoid Driver

订货号: 304977
产品分类: H 系统（端接板安装）

Solenoid Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Systematic capability (SC)	SC 3
Connection	loop powered
Rated voltage	19 ... 30 V DC loop powered
Power dissipation	< 1.3 W
Connection side	control side

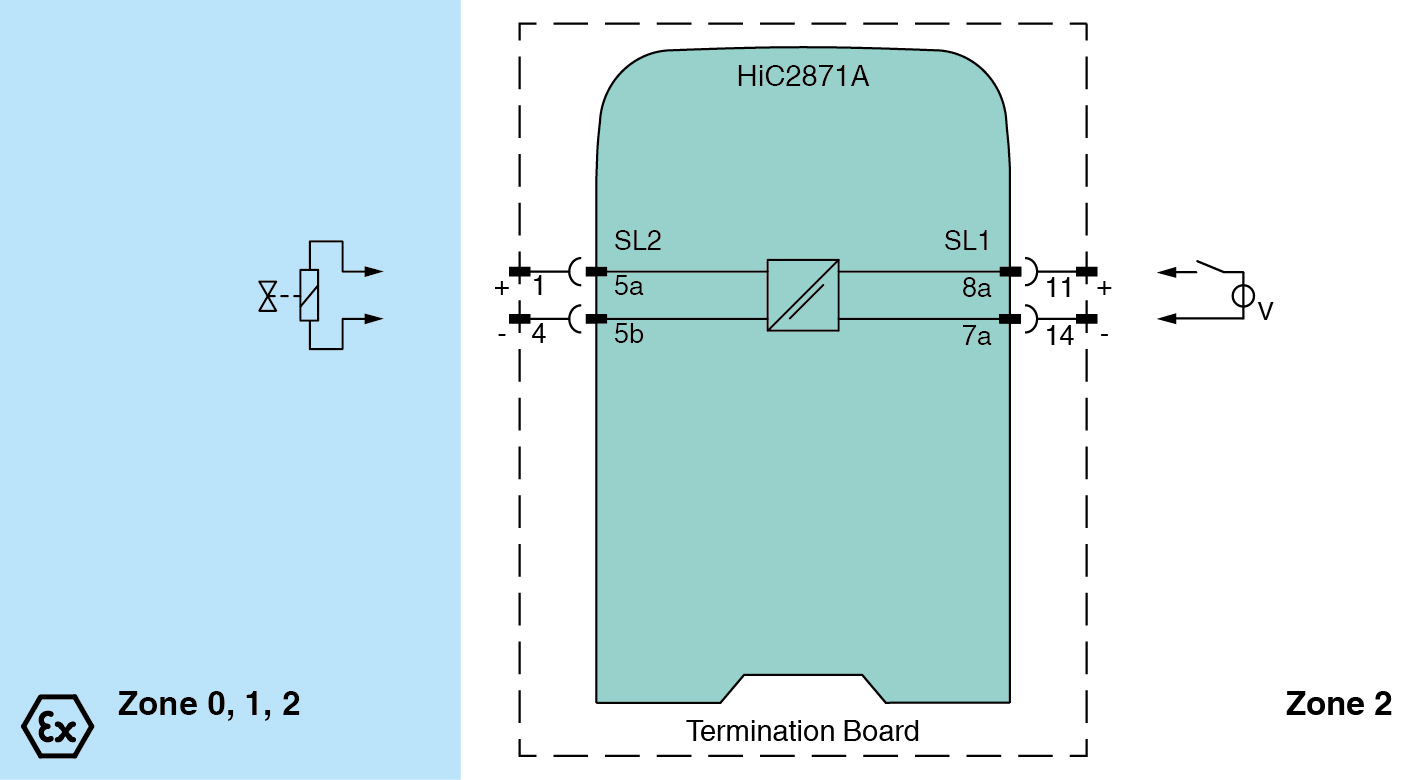

Connection	SL1: 7a(-), 9a(-); 8a(+), 10a(+)
Test pulse length	max. 2 ms from DO card
Signal level	1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC
Rated voltage	19 ... 30 V DC
Rated current	0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 36 mA (minimum load current DO card)
Inrush current	≤ 200 mA after 100 µs
Connection side	field side
Connection	SL2: 5a(+), 5b(-)
Internal resistor	approx. 240 Ω
Current	≤ 45 mA
Voltage	≥ 12 V
Current limit	45 mA
Open loop voltage	typ. 24.6 V
Switching frequency	max. 10 Hz
Energized/De-energized delay	28 ms / 10 ms
Output/other circuits	basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LED
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2017 , IEC/EN 61326-3-2:2018 For further information see system description.
Degree of protection	IEC 60529:2013
Protection against electrical shock	UL 61010-1:2012
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of protection	IP20
Mass	approx. 150 g
Dimensions	12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D)
Height106 mmWidth12.5 mmDepth128 mm	Height106 mmWidth12.5 mmDepth128 mm
Mounting	on termination board
Coding	pin 1 and 4 trimmed For further information see system description.
Height	106 mm
Width	12.5 mm
Depth	128 mm
EU-type examination certificate	FIDI 21 ATEX 0069X
Marking II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx iaVoltageUo26 VCurrentIo110 mAPowerPo715 mW	Marking II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx iaVoltageUo26 VCurrentIo110 mAPowerPo715 mW
Input	Input
Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019
Marking	II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Output	Ex ia
Voltage	26 V
Current	110 mA
Power	715 mW
Maximum safe voltage	60 V (Attention! The rated voltage can be lower.)
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019
FM approval	FM 17 US 0111 X , FM 17 CA 0057 X
Control drawing116-0442	Control drawing116-0442
UL approval	E106378
Control drawing116-0447A (cULus)	Control drawing116-0447A (cULus)
IECEx approval	IECEx approval
IECEx certificateIECEx EXA 17.0009XIECEx markingEx ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I	IECEx certificateIECEx EXA 17.0009XIECEx markingEx ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
Control drawing	116-0442
Control drawing	116-0447A (cULus)
IECEx certificate	IECEx EXA 17.0009X
IECEx marking	Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
