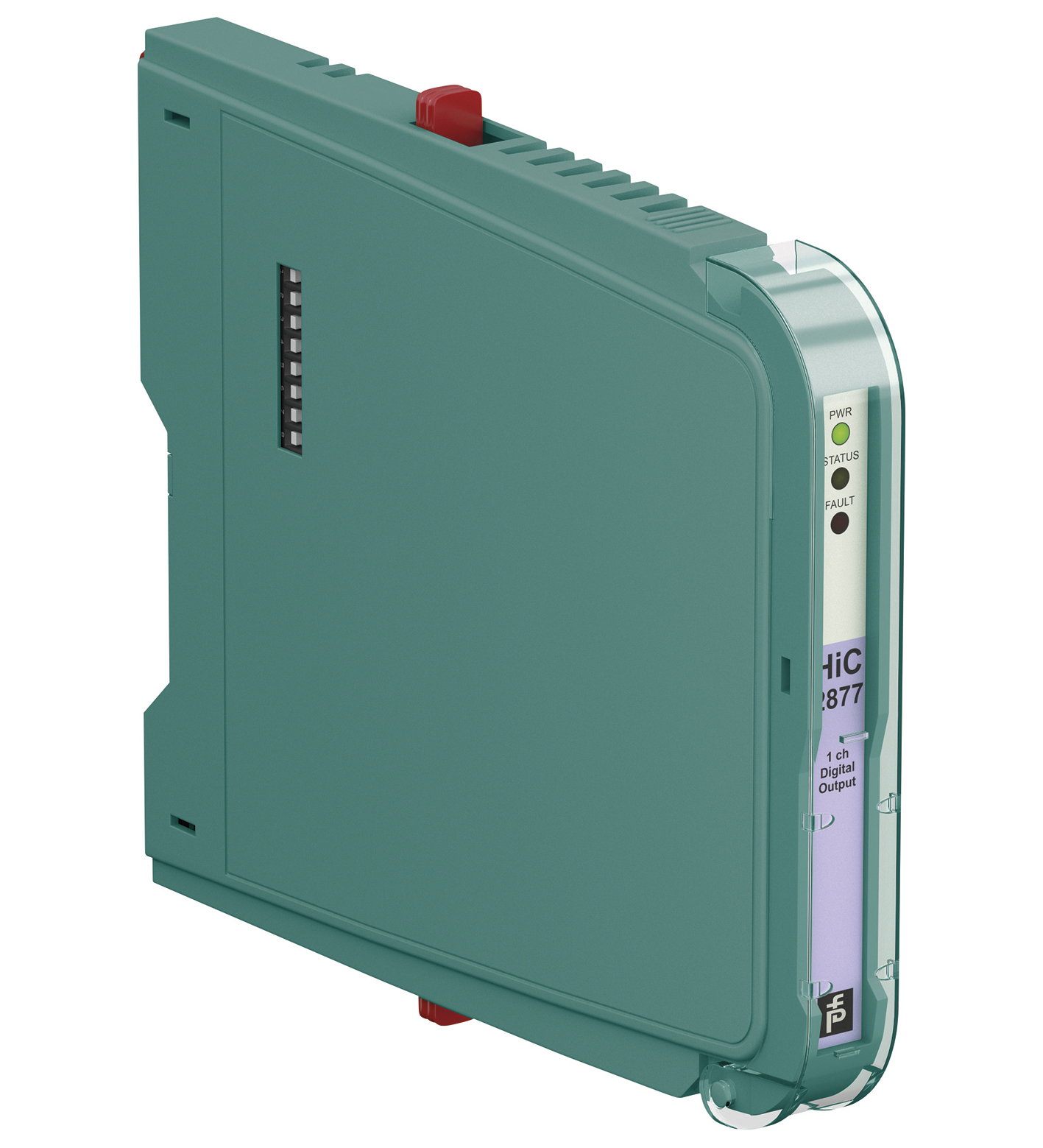

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Output |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Systematic capability (SC) | SC 3 |

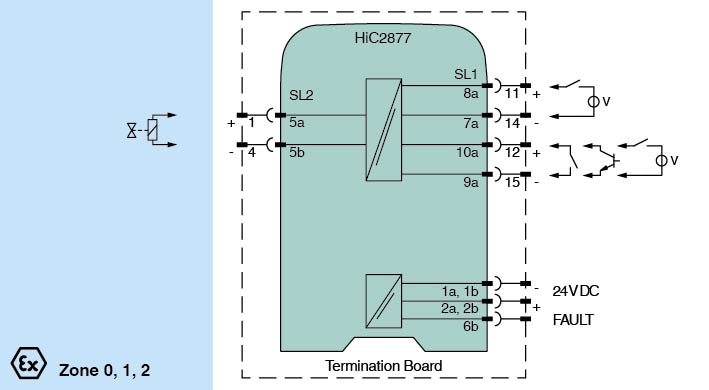

| Connection | SL1: 1a, 1b(-); 2a, 2b(+) |
| Rated voltage | 20.4 ... 30 V DC loop powered 20.4 ... 30 V DC bus powered via Termination Board |
| Input current | 62 mA at 24 V, 300 Ω load |
| Power dissipation | 1 W at 24 V, 300 Ω load |
| Connection side | control side |
| Connection | SL1: 8a(+), 7a(-) loop powered SL1: 10a(+), 9a(-) bus powered |
| Control input | external switch (dry contact or open collector) non isolated or logic signal input fully floating |
| Signal level | 1-signal: 15...30 V DC (current limited to 3 mA) or contact close (internal 10 kΩ pull-up)0-signal: 0...5 V DC or contact open |
| Power dissipation | 1 W at 24 V, 300 Ω load for loop powered |
| Inrush current | 0.2 A , 15 ms loop powered |
| Connection side | field side |
| Connection | SL2: 5a(+), 5b(-) |
| Internal resistor | approx. 280 Ω |
| Current | ≤ 40 mA |
| Voltage | ≥ 11.2 V |
| Current limit | 55 mA |
| Open loop voltage | approx. 22.5 V |
| Load | nominal 0.1 ... 5 kΩ |
| Switching frequency | - bus powered: filter OFF: max. 150 Hz, filter ON: max. 15 Hz- loop powered: max. 10 Hz |
| Energized/De-energized delay | - bus powered: filter OFF: 1 ms, filter ON: 10 ms- loop powered: switch-on 50 ms, switch-off 6 ms (300 Ω load) |
| Line fault detection | Line fault detection |
| Short-circuit< 25 ΩOpen-circuit> 100 kΩTest current< 4 mA | Short-circuit< 25 ΩOpen-circuit> 100 kΩTest current< 4 mA |
| Short-circuit | < 25 Ω |
| Open-circuit | > 100 kΩ |
| Test current | < 4 mA |
| Connection | SL1: 6b |
| Output type | open collector transistor (internal fault bus) |
| Fault current | 4 mA pulsing (20 ms ON, 200 ms OFF) |
| Fault level | lead short-circuit detection at < 25 Ωlead breakage detection at > 100 kΩ typical |
| Output/power supply, inputs, and collective error | safe electrical isolation acc. to EN 60079-11: 2007, voltage peak value 375 V |
| Display elements | LEDs |
| Control elements | DIP switch |
| Factory setting | bus powered, input: dry contact, line fault detection enabled |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2006For further information see system description. |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Mass | approx. 100 g |
| Dimensions | 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D) |
| Height106 mmWidth12.5 mmDepth128 mm | Height106 mmWidth12.5 mmDepth128 mm |
| Mounting | on termination board |
| Coding | pin 2 and 3 trimmed For further information see system description. |
| Height | 106 mm |
| Width | 12.5 mm |
| Depth | 128 mm |
| EU-type examination certificate | CESI 10 ATEX 046 |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia Ga, Ex ia Da, Ex ia MaVoltageUo25.2 VCurrentIo93 mAPowerPo586 mW | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia Ga, Ex ia Da, Ex ia MaVoltageUo25.2 VCurrentIo93 mAPowerPo586 mW |
| Supply | Supply |
| Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) | Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.) |
| Certificate | KIWA 15 ATEX 0036 X |
| Marking II 3G Ex ec IIC T4 Gc | Marking II 3G Ex ec IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 | Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Output | Ex ia Ga, Ex ia Da, Ex ia Ma |
| Voltage | 25.2 V |
| Current | 93 mA |
| Power | 586 mW |
| Maximum safe voltage | 253 V AC (Attention! Um is no rated voltage.) |
| Marking | II 3G Ex ec IIC T4 Gc |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 |
| FM approval | FM approval |
| Control drawing116-0431 (cFMus) | Control drawing116-0431 (cFMus) |
| UL approval | UL approval |
| Control drawing116-0383 (cULus) | Control drawing116-0383 (cULus) |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx CES 10.0017 IECEx KIWA 15.0018XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec IIC T4 Gc | IECEx certificateIECEx CES 10.0017 IECEx KIWA 15.0018XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec IIC T4 Gc |
| Control drawing | 116-0431 (cFMus) |
| Control drawing | 116-0383 (cULus) |
| IECEx certificate | IECEx CES 10.0017 IECEx KIWA 15.0018X |
| IECEx marking | [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec IIC T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
