HiC5861

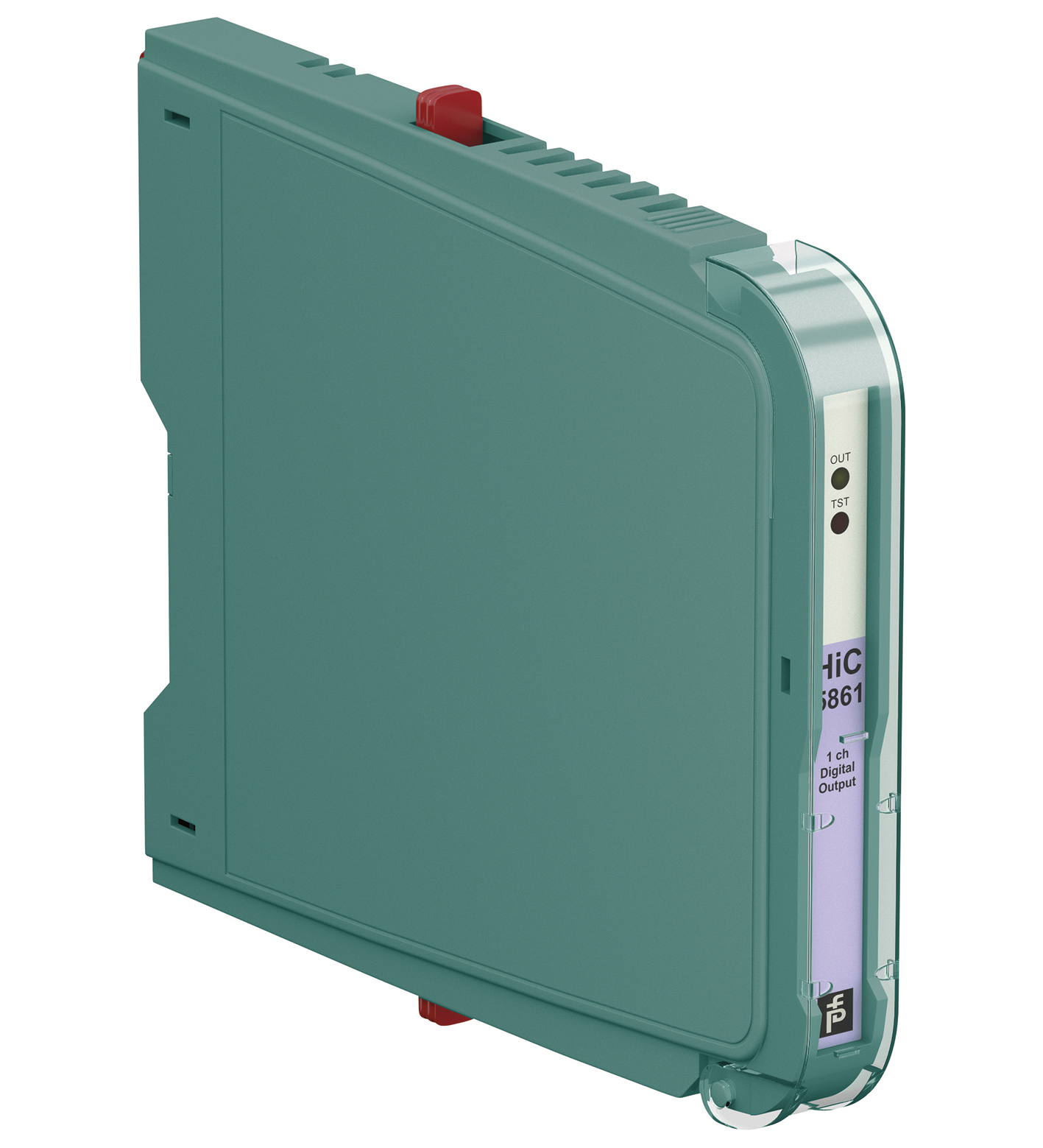

HiC5861 Relay Module

订货号: 294715
产品分类: H 系统（端接板安装）

Relay Module

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Performance level (PL)	PL e
Connection	loop powered
Rated voltage	19 ... 30 V DC loop powered
Power dissipation	< 1.3 W
Power consumption	< 1.3 W
Connection side	control side

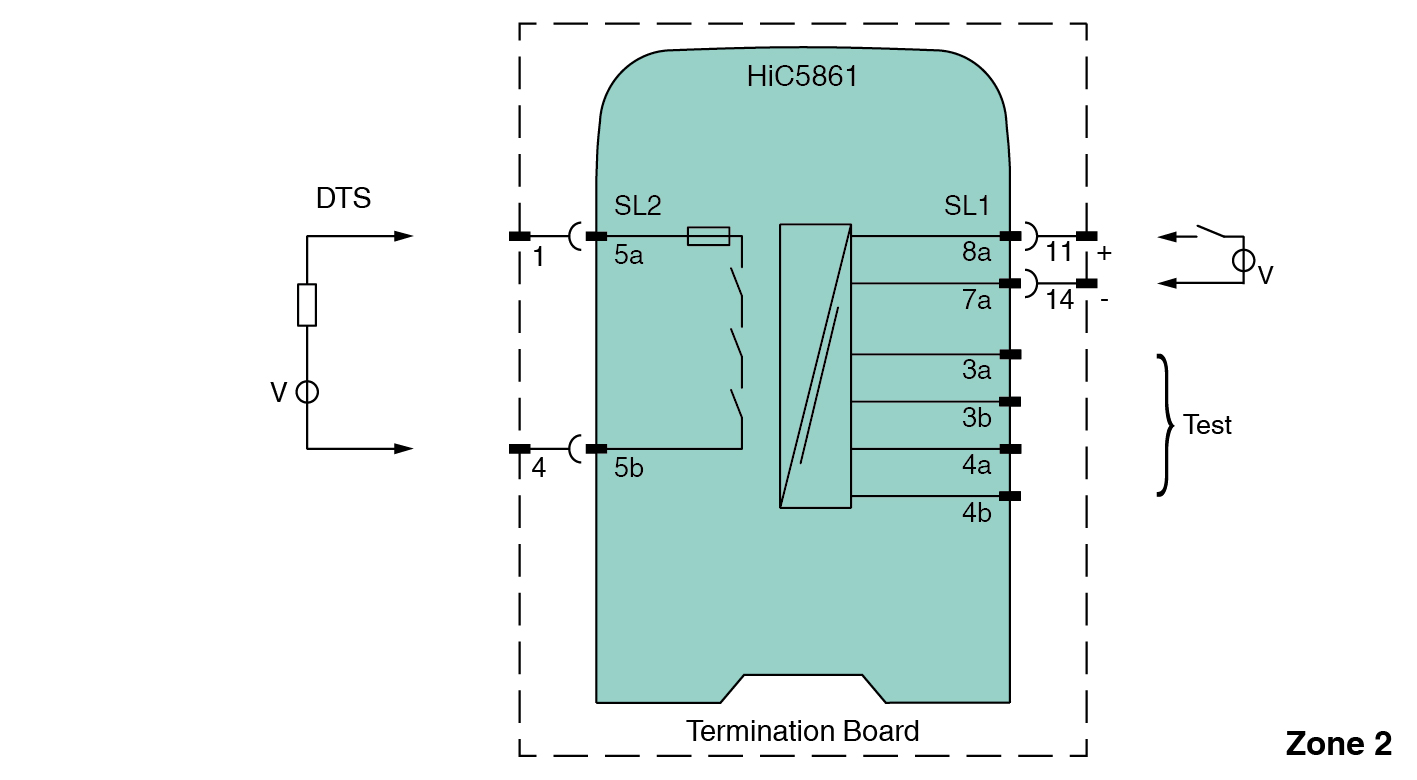

Connection	Input SL1: 8a(+), 7a(-) ; test input SL1: 3a(-), 3b(+), 4a(+), 4b(+)
Pulse/Pause ratio	150 ms / 150 ms
Test pulse length	max. 4 ms from DO card
Test input	see functional safety manual
Signal level	0-signal: -5 ... 5 V 1-signal: 19 ... 27.6 V
Rated voltage	19 ... 27.6 V loop powered
Rated current	0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 36 mA (minimum load current DO card)
Connection side	field side
Connection	SL2: 5a, 5b
Contact loading	30 V DC/1 A resistive load
Minimum switch current	10 mA / 24 V DC
Energized/De-energized delay	150 ms / 150 ms
Mechanical life	2 x 107 switching cycles
Fuse rating	1.5 A
Switching frequency	< 3 Hz
Input/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 253 Veff
Output/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 253 Veff
Display elements	LEDs
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Machinery Directive	Machinery Directive
Directive 2006/42/ECEN 62061:2005 , EN/ISO 13849-1:2008	Directive 2006/42/ECEN 62061:2005 , EN/ISO 13849-1:2008
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Directive 2006/42/EC	EN 62061:2005 , EN/ISO 13849-1:2008
Electromagnetic compatibility	NE 21:2012 , EN 61326-3-1:2008 , EN 61326-3-2:2008
Degree of protection	IEC 60529:2013
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F) Observe the temperature range limited by derating, see section derating.
Degree of protection	IP20
Mass	approx. 100 g
Dimensions	12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D)
Height106 mmWidth12.5 mmDepth128 mm	Height106 mmWidth12.5 mmDepth128 mm
Mounting	on termination board
Coding	no pin trimmed For further information see system description.
Height	106 mm
Width	12.5 mm
Depth	128 mm
Certificate	PF 17 CERT 4192 X
Marking II 3G Ex nC ec IIC T4 Gc	Marking II 3G Ex nC ec IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-15:2010
Marking	II 3G Ex nC ec IIC T4 Gc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-15:2010
UL approval	E106378
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
