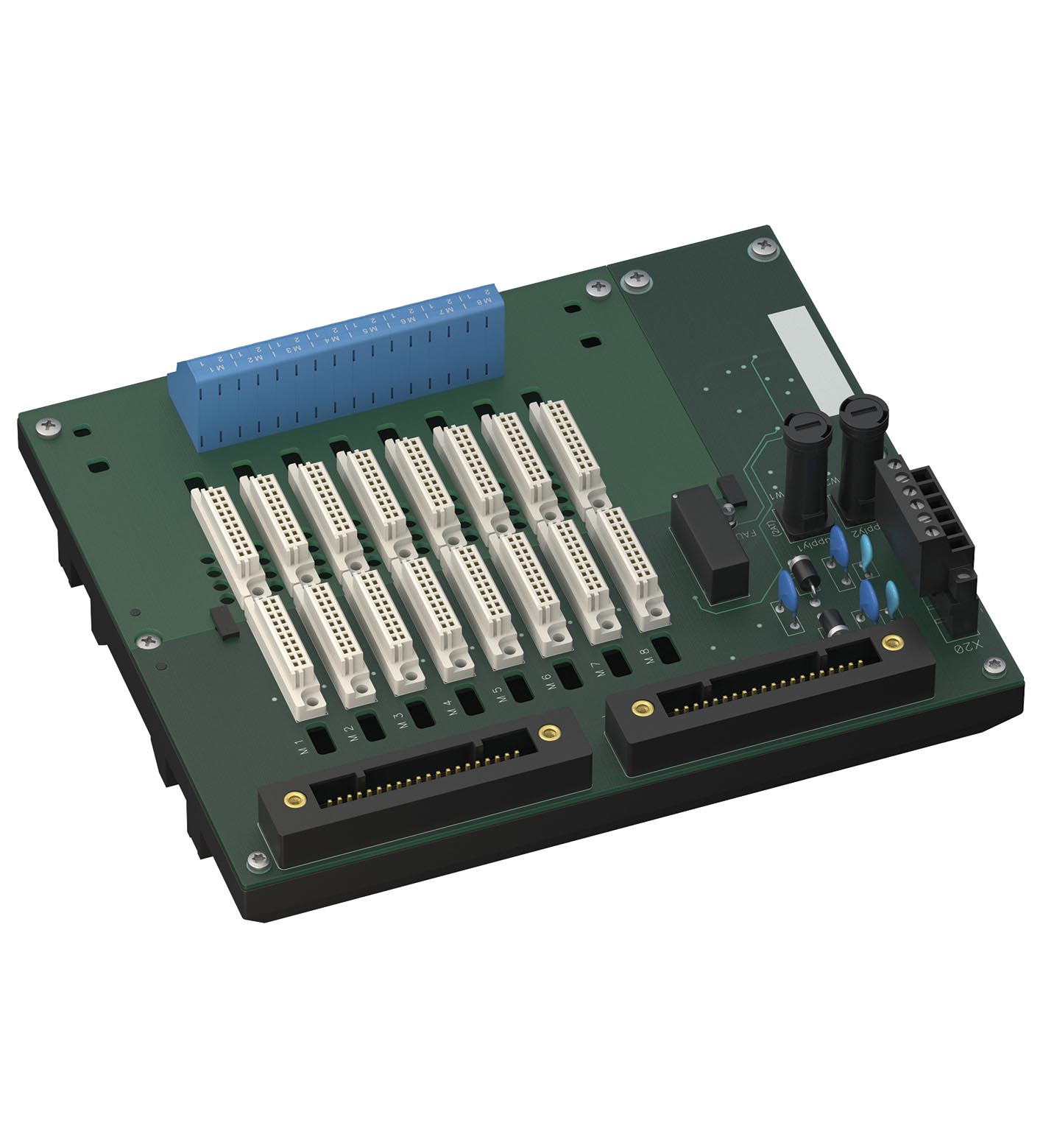

TECHNICAL DATA
规格参数
Supply

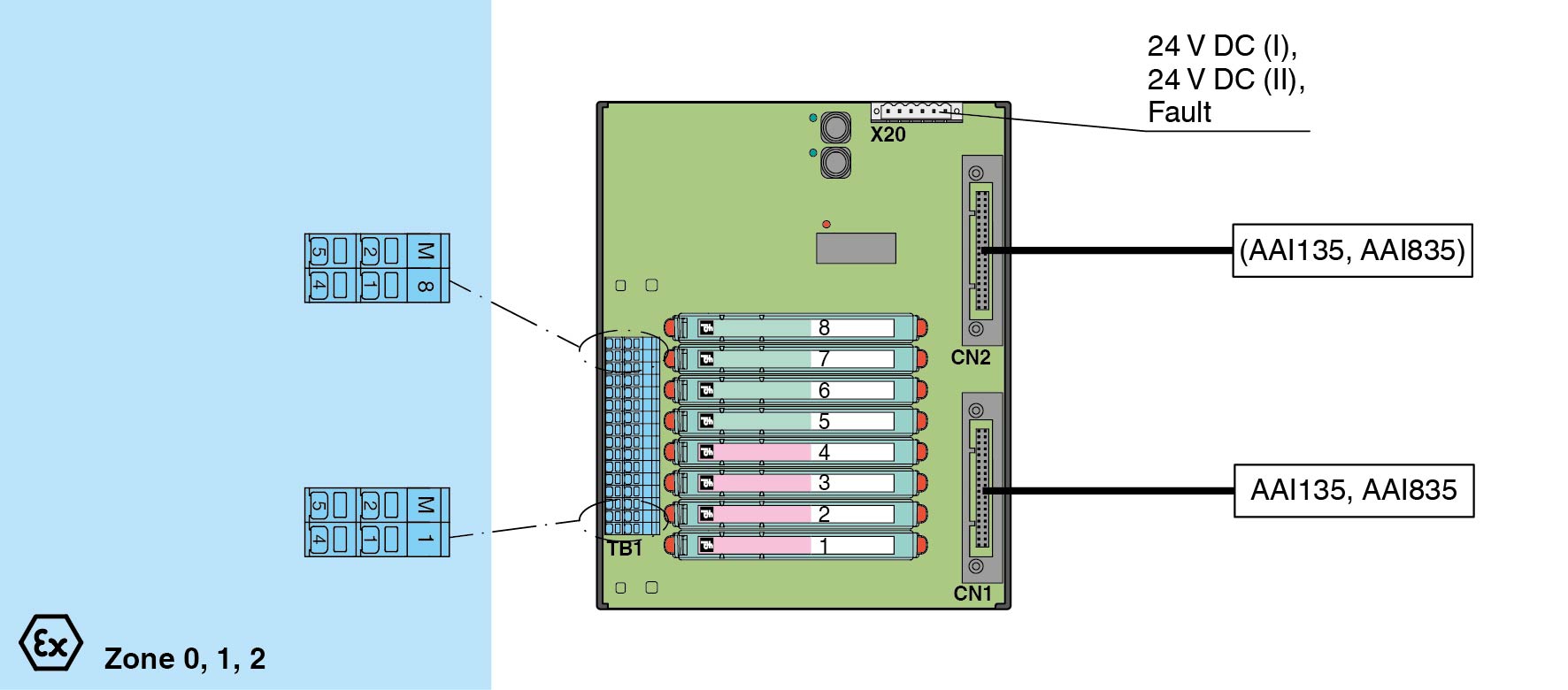

| Connection | X20: terminals 3, 5(+); 4, 6(-) |
|---|---|
| Nominal voltage | 24 V DC , in consideration of rated voltage of used isolators |
| Voltage drop | 0.9 V , voltage drop across the series diode on the termination board must be considered |
| Ripple | ≤ 10 % |
| Fusing | 2 A , in each case for 8 modules |
| Power dissipation | ≤ 500 mW , without modules |
| Reverse polarity protection | yes |
| Supply | Redundancy available. The supply for the isolators is decoupled, monitored and fused. |
| Connection | X20: terminals 1, 2 |
| Output type | volt-free contact |
| Switch behaviour | no fault: relay contact closed power supply fault: relay contact open module fault: relay contact open |
| Contact loading | 30 V DC , 1 A |
| Display elements | LEDs PWR ON (Termination Board power supply)- LED power supply I, green LED- LED power supply II, green LED LED FAULT (fault indication), red LED- LED lits: module fault- LED flashes: power supply fault |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2017For further information see system description. |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Degree of protection | IP20 |
| Connection | Connection |
| Field sideexplosion hazardous area: spring terminals , blueControl sidenon-explosion hazardous area: Yokogawa system connector, 40-pinSupplypluggable screw terminals , blackFault outputpluggable screw terminals , black | Field sideexplosion hazardous area: spring terminals , blueControl sidenon-explosion hazardous area: Yokogawa system connector, 40-pinSupplypluggable screw terminals , blackFault outputpluggable screw terminals , black |
| Core cross section | spring terminals: rigid: 0.2 ... 2.5 mm2 flexible: 0.25 ... 1.5 mm2 |
| Material | housing: polycarbonate |
| Mass | approx. 480 g |
| Dimensions | 205 x 175 x 153 mm (8.1 x 6.9 x 6.02 inch) (W x H x D) , depth including module assembly |
| Height175 mmWidth205 mmDepth153 mm | Height175 mmWidth205 mmDepth153 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Field side | explosion hazardous area: spring terminals , blue |
| Control side | non-explosion hazardous area: Yokogawa system connector, 40-pin |
| Supply | pluggable screw terminals , black |
| Fault output | pluggable screw terminals , black |
| Height | 175 mm |
| Width | 205 mm |
| Depth | 153 mm |
| EU-type examination certificate | CESI 06 ATEX 022 |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Non-hazardous area | Non-hazardous area |
| Maximum safe voltage250 V (Attention! Um is no rated voltage.) | Maximum safe voltage250 V (Attention! Um is no rated voltage.) |
| Galvanic isolation | Galvanic isolation |
| Field circuit/control circuitsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Field circuit/control circuitsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 50303:2000 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 50303:2000 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Maximum safe voltage | 250 V (Attention! Um is no rated voltage.) |
| Field circuit/control circuit | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 50303:2000 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx CES 06.0003IECEx marking[Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I | IECEx certificateIECEx CES 06.0003IECEx marking[Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I |
| IECEx certificate | IECEx CES 06.0003 |
| IECEx marking | [Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
