TECHNICAL DATA
规格参数
Supply
| Rated voltage | 24 V DC , in consideration of rated voltage of used isolated barrier |
|---|---|
| Connection | see datasheet of isolated barrier |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Connection | see datasheet of isolated barrier |
| Mass | approx. 50 g |

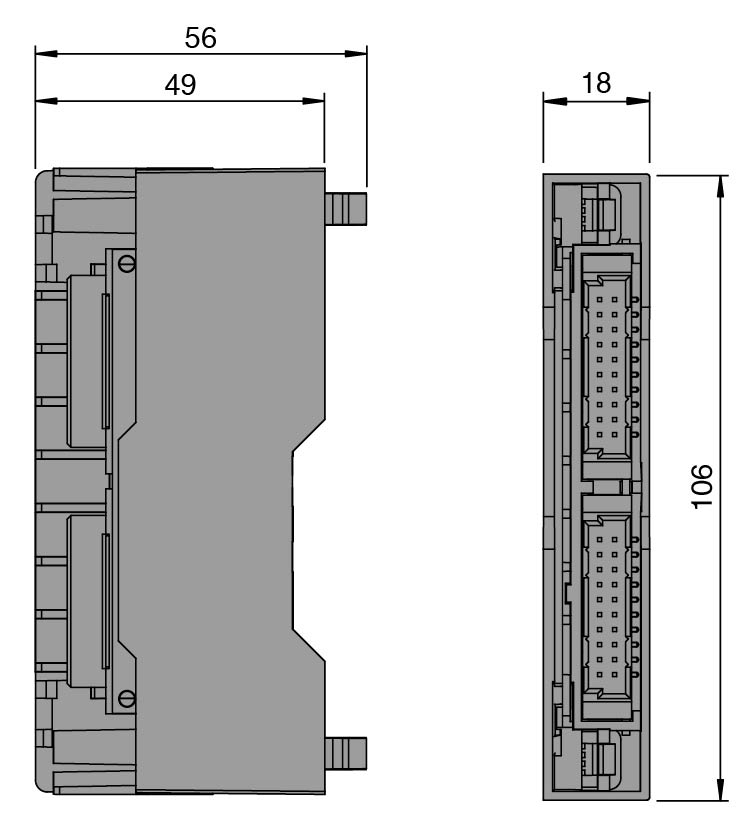

| Dimensions | 18 x 106 x 56 mm (0.7 x 4.2 x 2.2 inch) (W x H x D) |
| Height106 mmWidth18 mmDepth56 mm | Height106 mmWidth18 mmDepth56 mm |
| Mounting | on termination board |
| Height | 106 mm |
| Width | 18 mm |
| Depth | 56 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
