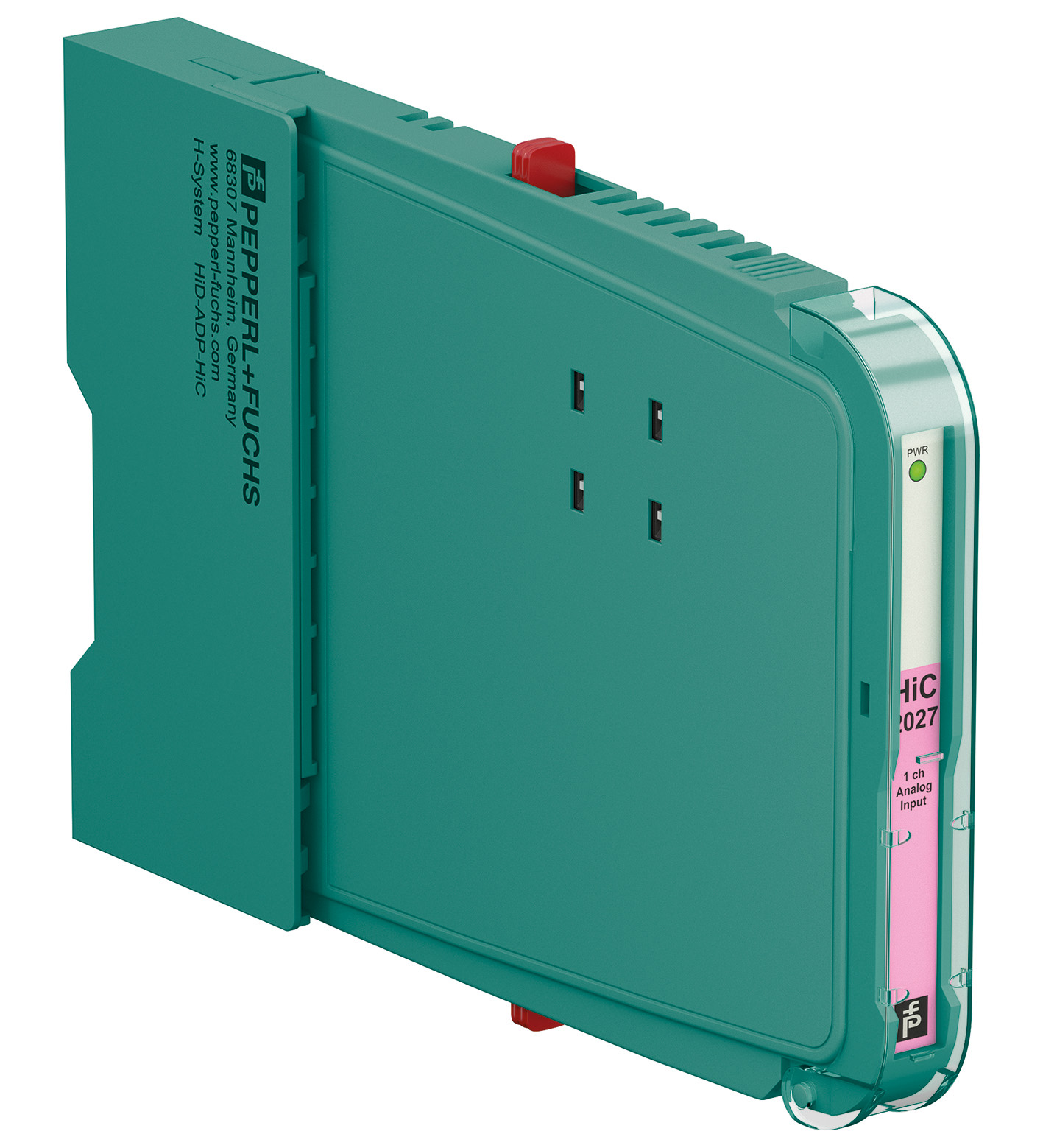

TECHNICAL DATA
规格参数
General specifications
| Signal type | Analog input |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Systematic capability (SC) | SC 3 |
| Rated voltage | 20 ... 30 V DC bus powered via Termination Board |
| Rated current | ≤ 90 mA |
| Power dissipation | approx. 1.4 W at 20 mA transfer current, 250 Ω in both outputs |
| Power consumption | 2 W |
| Connection side | field side |
| Input signal | 0/4 ... 20 mA |
| Connection side | control side |
| Output signal | 0/4 ... 20 mA or 0/1 ... 5 V |
| Display elements | LEDs |
| Control elements | DIP switch |
| Factory setting | output: current source |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUsee datasheet of isolated barrier | Directive 2014/30/EUsee datasheet of isolated barrier |
| Directive 2014/30/EU | see datasheet of isolated barrier |
| Electromagnetic compatibility | see datasheet of isolated barrier |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Mass | approx. 200 g |

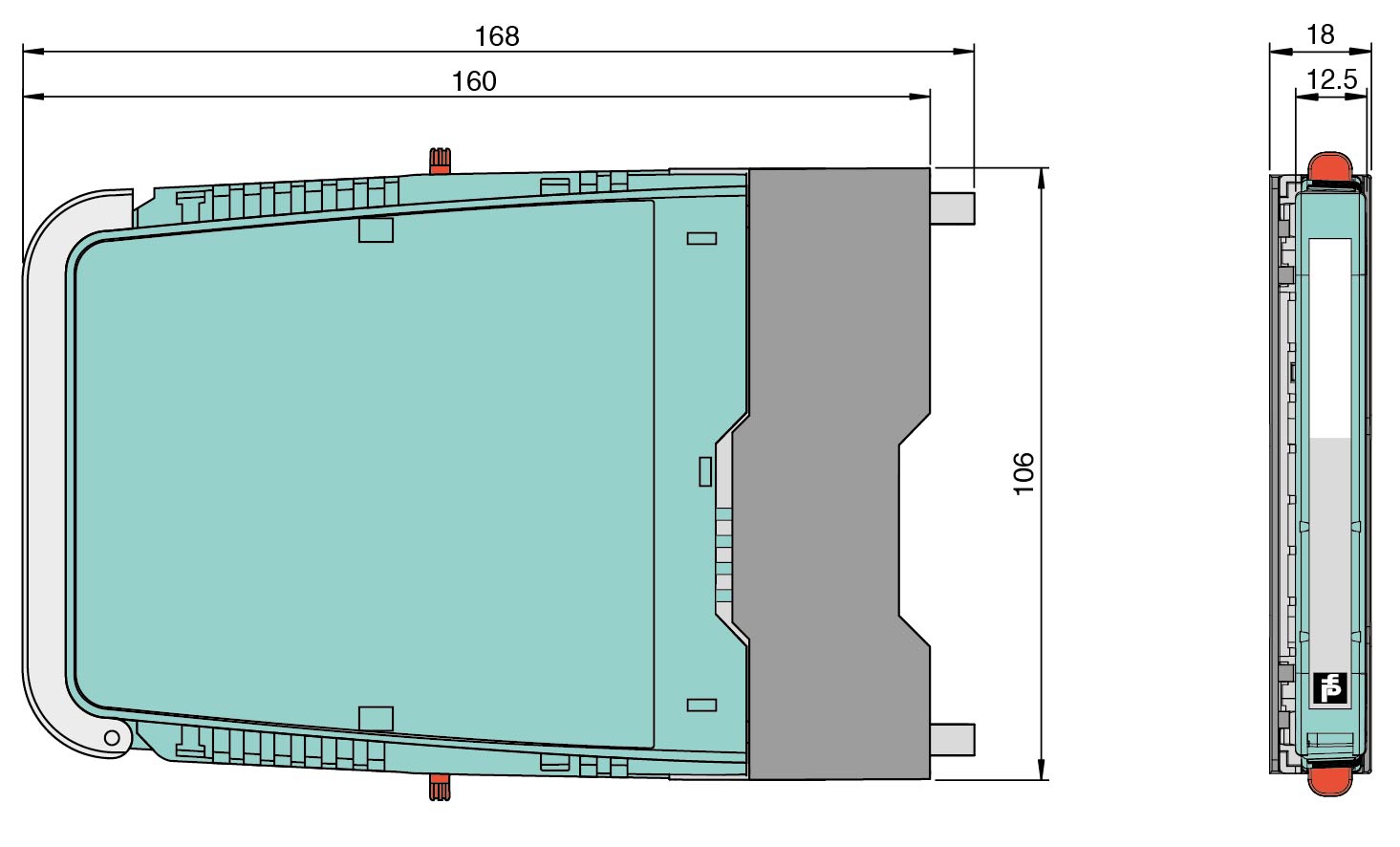

| Dimensions | 18 x 106 x 168 mm (0.7 x 4.2 x 6.6 inch) (W x H x D) |
| Mounting | on termination board |
| EU-type examination certificate | see datasheet of isolated barrier |
| UL approval | see datasheet of isolated barrier |
| IECEx approval | IECEx approval |
| IECEx certificatesee datasheet of isolated barrier | IECEx certificatesee datasheet of isolated barrier |
| IECEx certificate | see datasheet of isolated barrier |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
