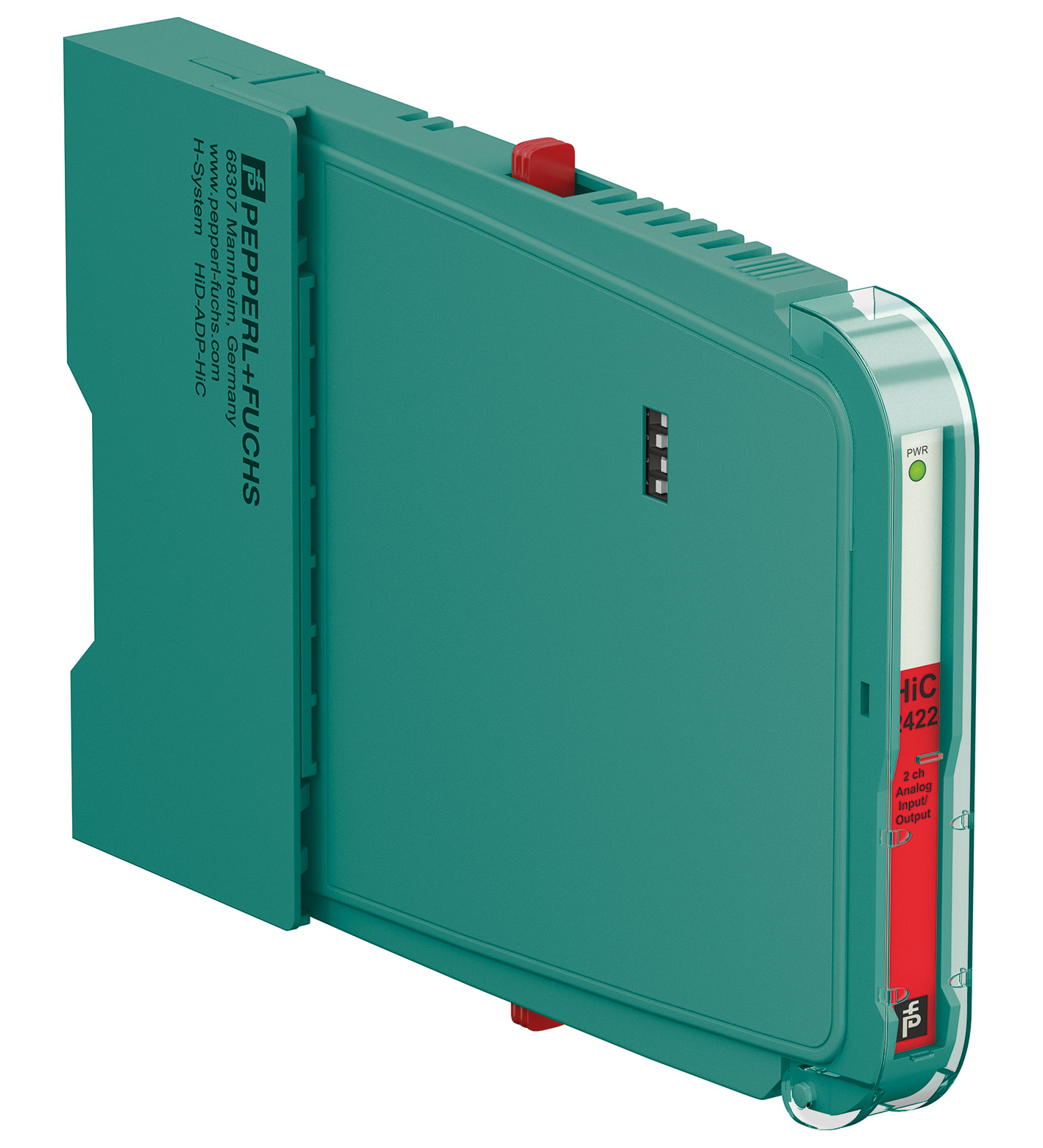

General specifications
| Signal type | Analog input/analog output |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Systematic capability (SC) | SC 3 |
| Rated voltage | 19 ... 30 V DC via Termination Board |
| Rated current | max. 88 mA at 24 V |
| Power dissipation | max. 1.4 W |
| Power consumption | max. 2.1 W |
| Number of channels | 2 |
| Suitable field devices | 2-wire SMART transmitters |
| Signal | 0/4 ... 20 mA , limited to approx. 30 mA |
| Number of channels | 2 |
| Suitable field devices | SMART I/P converters (positioner), on-site-displays |
| Signal | 0/4 ... 20 mA , limited to approx. 30 mA |
| Display elements | LEDs |
| Factory setting | analog input with source output |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUsee datasheet of isolated barrier | Directive 2014/30/EUsee datasheet of isolated barrier |
| Directive 2014/30/EU | see datasheet of isolated barrier |
| Electromagnetic compatibility | see datasheet of isolated barrier |
| Degree of protection | IEC 60529 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Mass | approx. 200 g |

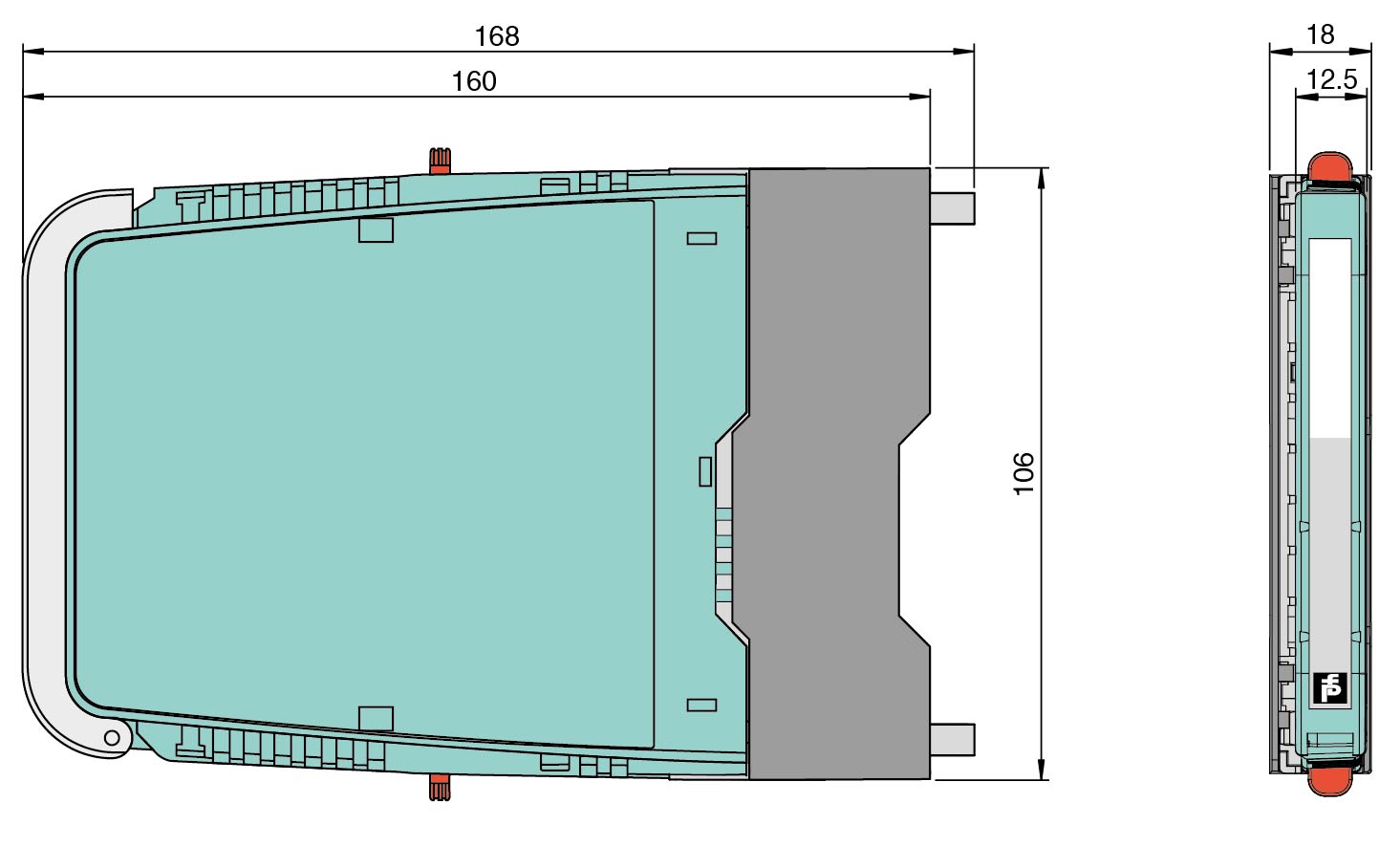

| Dimensions | 18 x 106 x 168 mm (0.7 x 4.2 x 6.6 inch) (W x H x D) |
| Mounting | on termination board |
| EU-type examination certificate | see datasheet of isolated barrier |
| UL approval | see datasheet of isolated barrier |
| IECEx approval | IECEx approval |
| IECEx certificatesee datasheet of isolated barrier | IECEx certificatesee datasheet of isolated barrier |
| IECEx certificate | see datasheet of isolated barrier |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
