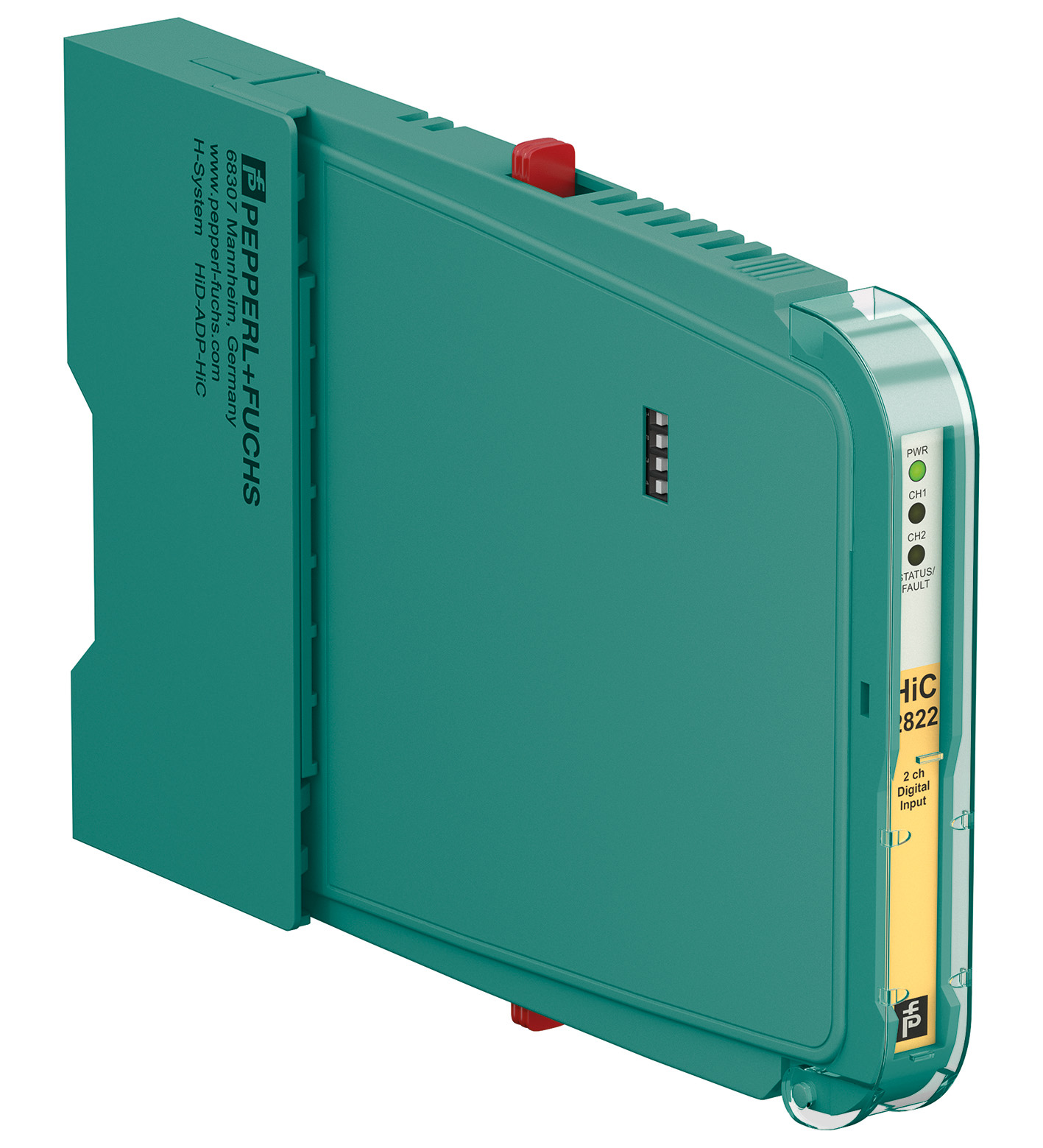

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Input |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Rated voltage | 19 ... 30 V DC bus powered via Termination Board |
| Rated current | ≤ 30 mA |
| Power dissipation | ≤ 600 mW |
| Power consumption | ≤ 600 mW |
| Connection side | field side |
| Open circuit voltage/short-circuit current | approx. 10 V DC / approx. 8 mA |
| Switching point/switching hysteresis | 1.2 ... 2.1 mA / approx. 0.2 mA |
| Line fault detection | breakage I ≤ 0.1 mA , short-circuit I ≥ 6.7 mA |
| Connection side | control side |
| Output I | signal ; relay |
| Output II | signal ; relay |
| Output type | open collector transistor (internal fault bus) |
| Display elements | LEDs |
| Control elements | DIP switch |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUsee datasheet of isolated barrier | Directive 2014/30/EUsee datasheet of isolated barrier |
| Directive 2014/30/EU | see datasheet of isolated barrier |
| Electromagnetic compatibility | see datasheet of isolated barrier |
| Degree of protection | IEC 60529 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Mass | approx. 200 g |

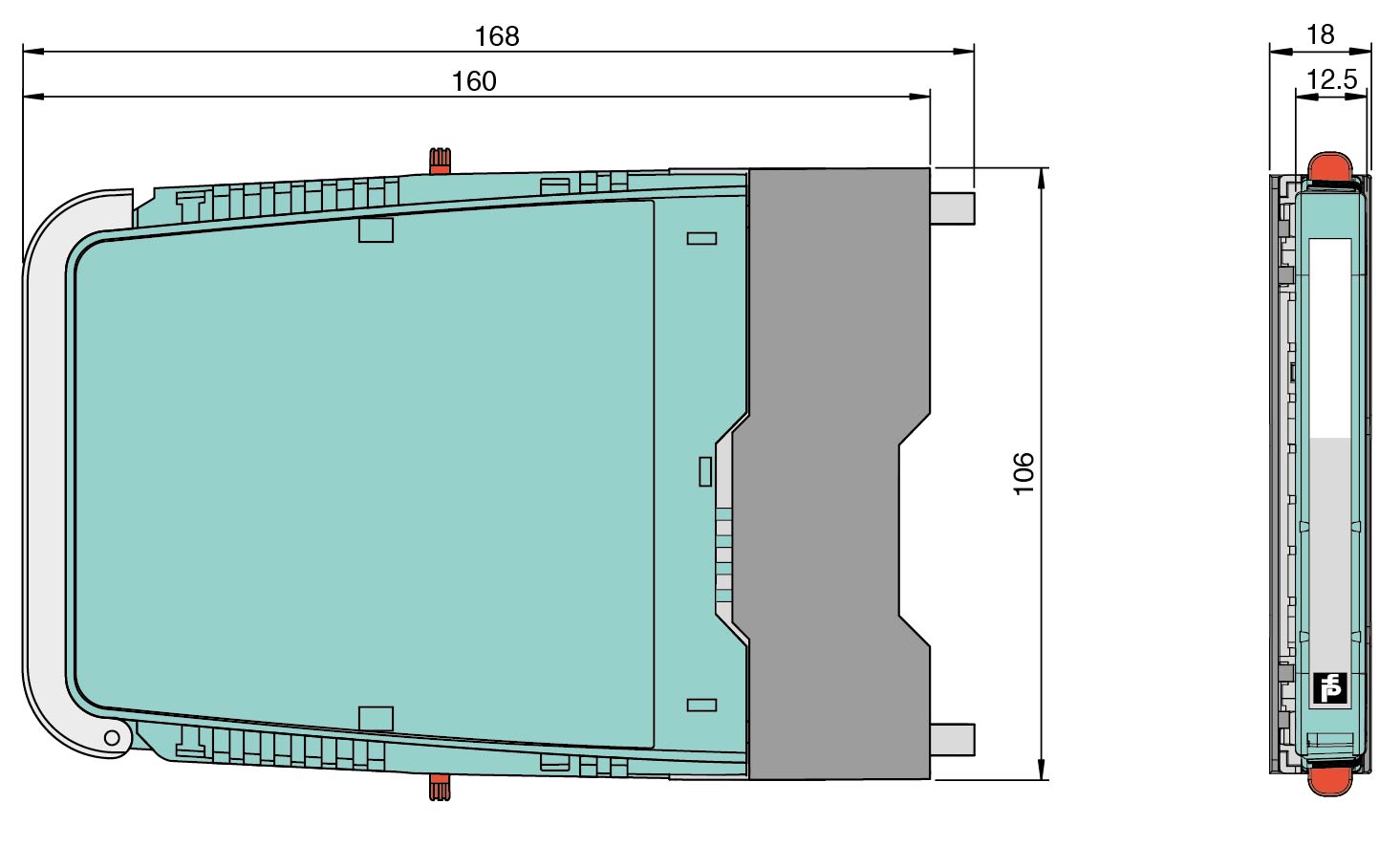

| Dimensions | 18 x 106 x 168 mm (0.7 x 4.2 x 6.6 inch) (W x H x D) |
| Mounting | on termination board |
| EU-type examination certificate | see datasheet of isolated barrier |
| UL approval | see datasheet of isolated barrier |
| IECEx approval | IECEx approval |
| IECEx certificatesee datasheet of isolated barrier | IECEx certificatesee datasheet of isolated barrier |
| IECEx certificate | see datasheet of isolated barrier |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
