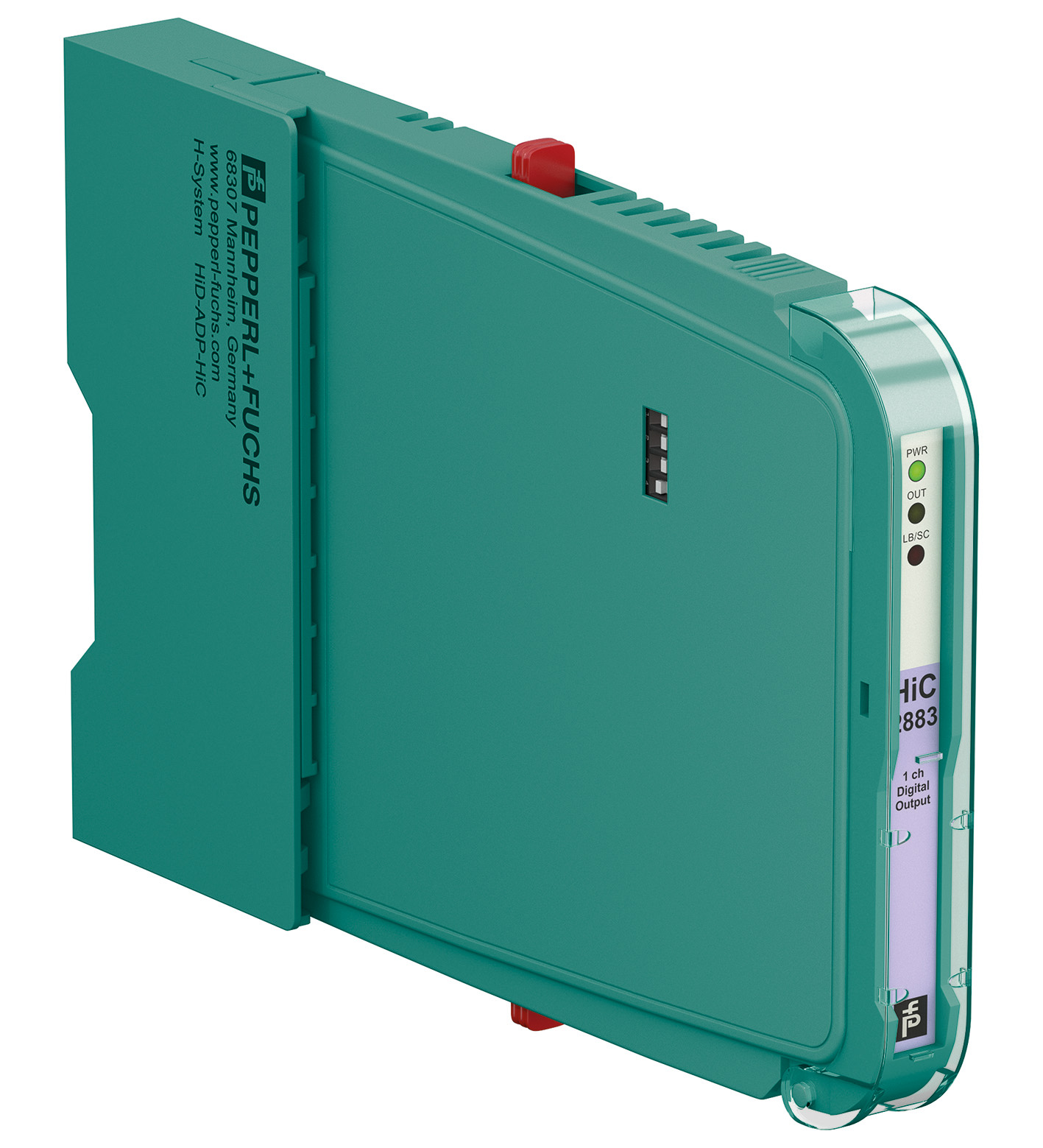

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Output |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Rated voltage | 19 ... 30 V bus powered via Termination Board 19 ... 30 V loop powered via input , reverse polarity protected |
| Input current | 75 mA at 24 V, 270 Ω load |
| Power dissipation | 1.3 W at 24 V, 270 Ω load |
| Connection side | control side |
| Signal level | loop powered 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC bus powered 1-signal: 15 ... 30 V DC (current limited to 5 mA)0-signal: 0 ... 5 V DC |
| Rated current | 0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 36 mA (minimum load current DO card) |
| Inrush current | < 200 mA , 10 ms loop powered |
| Connection side | field side |
| Output type | open collector transistor (internal fault bus) |
| Display elements | LEDs |
| Control elements | DIP switch |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUsee datasheet of isolated barrier | Directive 2014/30/EUsee datasheet of isolated barrier |
| Directive 2014/30/EU | see datasheet of isolated barrier |
| Electromagnetic compatibility | see datasheet of isolated barrier |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Mass | approx. 160 g |

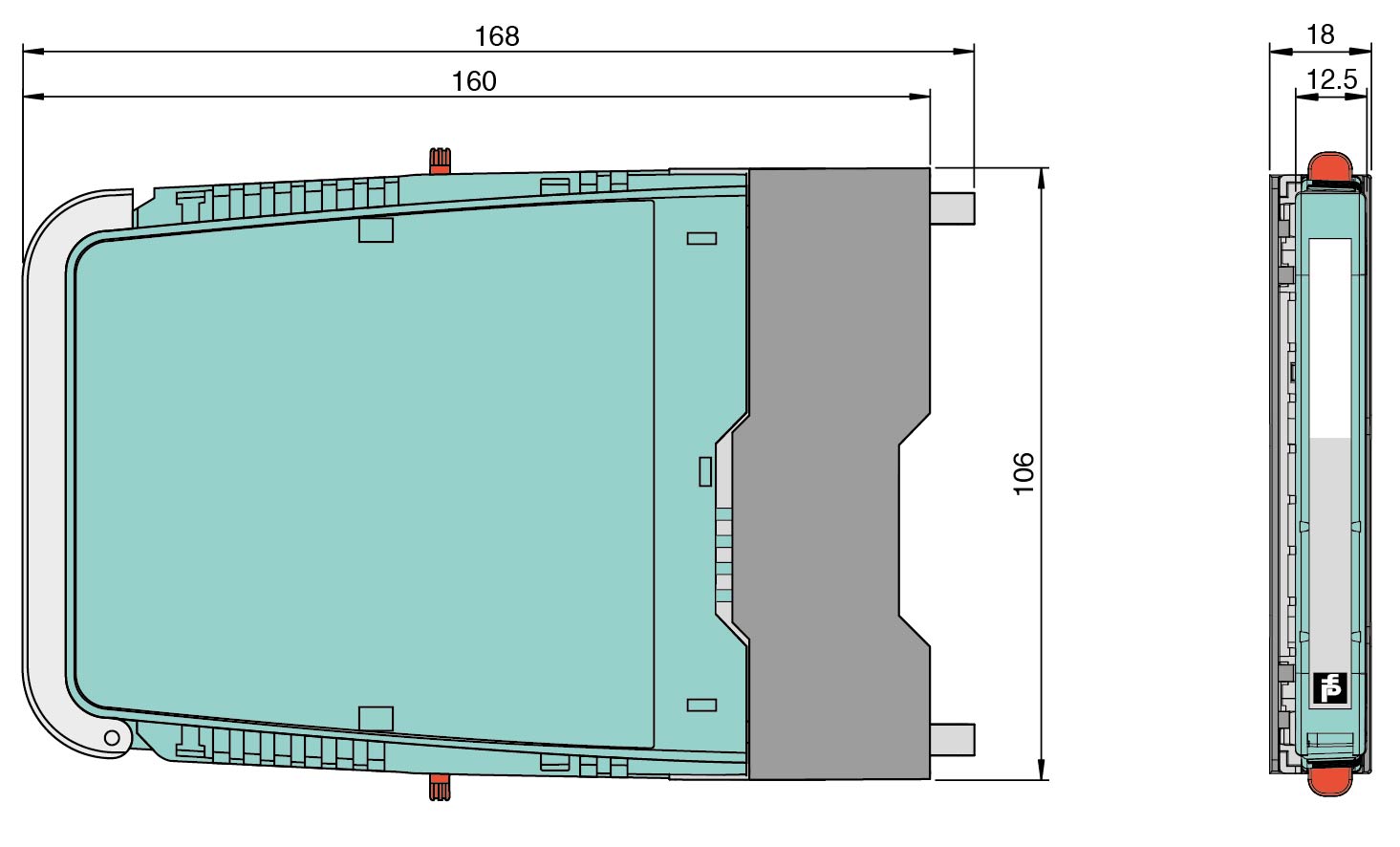

| Dimensions | 18 x 106 x 168 mm (0.7 x 4.2 x 6.6 inch) (W x H x D) |
| Mounting | on termination board |
| EU-type examination certificate | see datasheet of isolated barrier |
| FM approval | see datasheet of isolated barrier |
| UL approval | see datasheet of isolated barrier |
| IECEx approval | IECEx approval |
| IECEx certificatesee datasheet of isolated barrier | IECEx certificatesee datasheet of isolated barrier |
| IECEx certificate | see datasheet of isolated barrier |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
