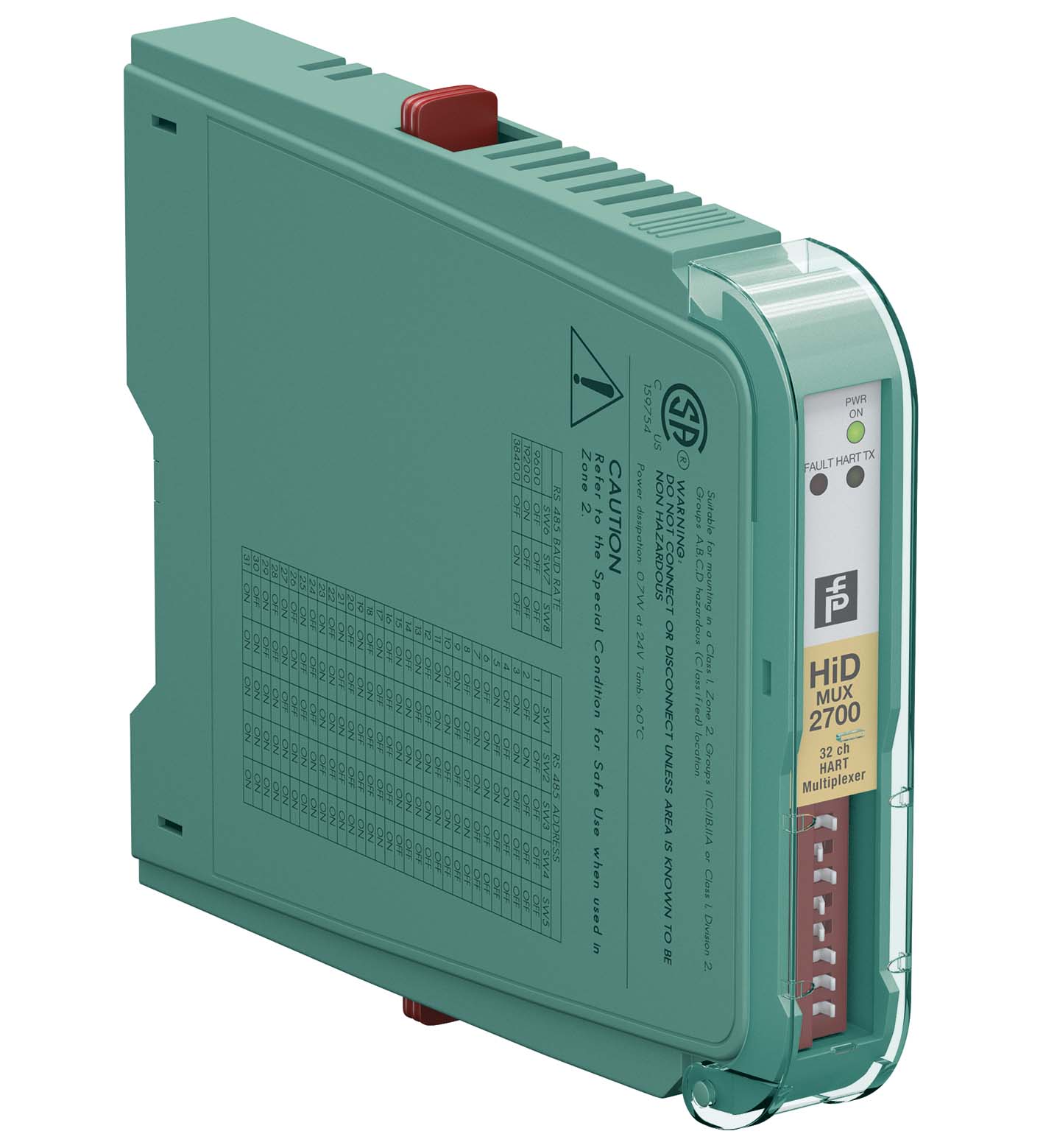

TECHNICAL DATA
规格参数
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 3 |
|---|---|

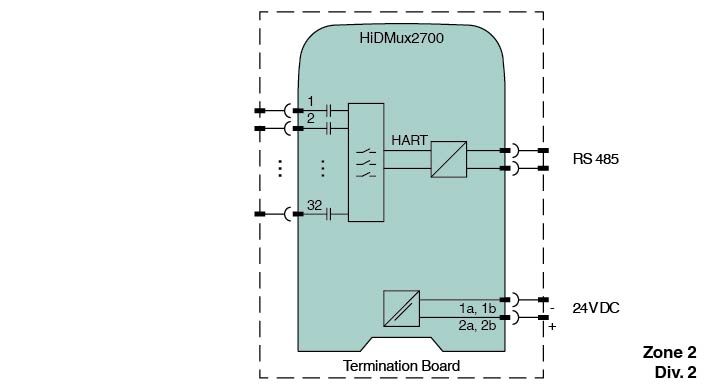

| Connection | SL1: 1a, 1b(-); 2a, 2b(+) |
| Rated voltage | 20.4 ... 30 V DC via Termination Board |
| Rated current | 28 mA at 24 V , RS-485, quiescent current |
| Power dissipation | 0.7 W at 24 V |
| Number of channels | 32 |
| Conformity | HART field device input (revision 5 to 7) |
| Signal range | 0.12 Vpp < signal < 1.5 Vpp |
| Leakage current | < 3 µA at -20 ... 85 °C (-4 ... 185 °F) |
| Terminating resistor | external 230 ... 500 Ω standard (up to 1000 Ω possible) |
| Output voltage | ≥ 400 mV ss (with the terminator resistance specified above) |
| Output resistance | 100 Ω or smaller, capacitive coupling |
| DC isolation | dual capacitor each channel |
| Common mode voltage | up to 30 V |
| Input impedance | > 5 kΩ , according to HART specification |
| Input voltage range | 0.12 ... 1.5 V ss |
| Common mode voltage | max. 30 V |
| Differential mode clamping | ± 5.2 V , for transient or AC signals |
| Common mode clamping | ± 10 V , for transient or AC signals |
| Carrier detect level | signal > 0.12 Vpp, carrier detection activatedsignal < 0.08 Vpp, carrier detection not activated |
| Transmit amplitude | 200 Ω load, 0.43 Vpp < signal < 0.49 Vpp500 Ω load, 1.1 Vpp < signal < 1.2 Vpp |
| Device type | DC isolated bus device |
| Impedance | high impedance |
| Data link type | HART primary and secondary |
| Field multi point support | option available upon request |
| Transfer rate | 9600 MBit/s, 19200 MBit/s or 38400 MBit/s, selectable via switch |
| Address | 1 ... 31 , adjustable via DIP switch |
| Type | RS-485 , differential pair and grounding |
| Topology | multi point, primary module/secondary module connection |
| Interface/power supply | 500 Vrms |
| Interface/field channels | 1000 Veff |
| Power supply/field channels | 1000 Veff |
| Display elements | LEDs LED PWR ON (power supply), one green LEDLED HART TX (HART transmission), one yellow LEDLED FAULT (lead fault), one red LED |
| Control elements | DIP switches at the housing side for:- secondary module address- baud rate- test mode on/off |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2012For further information see system description. |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | 5 ... 95 %, non-condensing |
| Degree of protection | IP20 |
| Mass | approx. 140 g |
| Dimensions | 18 x 114 x 130 mm (0.7 x 4.5 x 5.1 inch) (W x H x D) |
| Mounting | on termination board |
| Certificate | CML 17 ATEX 3337X |
| Marking II 3G Ex ec IIC T4 Gc | Marking II 3G Ex ec IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 |
| Marking | II 3G Ex ec IIC T4 Gc |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 |
| CSA approval | CSA approval |
| CSA certificate1256050Approved forClass I, Division 2, Groups A, B, C, D and non-explosion hazardous area | CSA certificate1256050Approved forClass I, Division 2, Groups A, B, C, D and non-explosion hazardous area |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx CML 17.0178XIECEx markingEx ec IIC T4 Gc | IECEx certificateIECEx CML 17.0178XIECEx markingEx ec IIC T4 Gc |
| CSA certificate | 1256050 |
| Approved for | Class I, Division 2, Groups A, B, C, D and non-explosion hazardous area |
| IECEx certificate | IECEx CML 17.0178X |
| IECEx marking | Ex ec IIC T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
