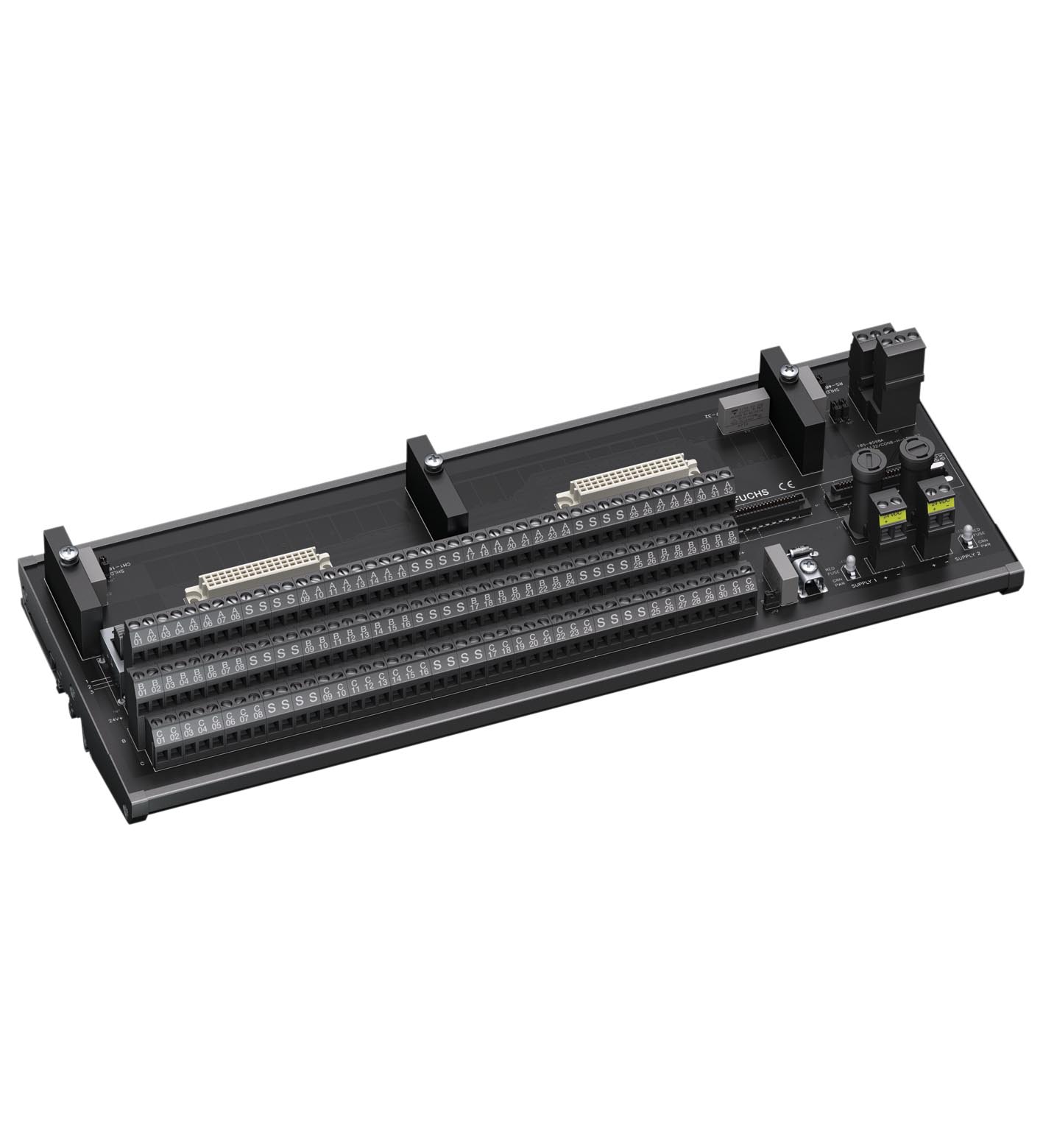

TECHNICAL DATA
规格参数
Supply
| Rated voltage | 20 ... 30 V DC |
|---|---|
| Fusing | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) |
| Power dissipation | 0.7 W , with Multiplexer |
| Reverse polarity protection | yes |
| HART signal channels | HART signal channels |
| Number of channels32 unbalanced signal loops | Number of channels32 unbalanced signal loops |
| Number of channels | 32 unbalanced signal loops |
| Supply | yes |
| HART signal channels | 30 V DC |
| Ambient temperature | 0 ... 55 °C (32 ... 131 °F) |
| Relative humidity | 5 ... 90 %, non-condensing |
| Core cross section | 2.5 mm2 (16 AWG) |

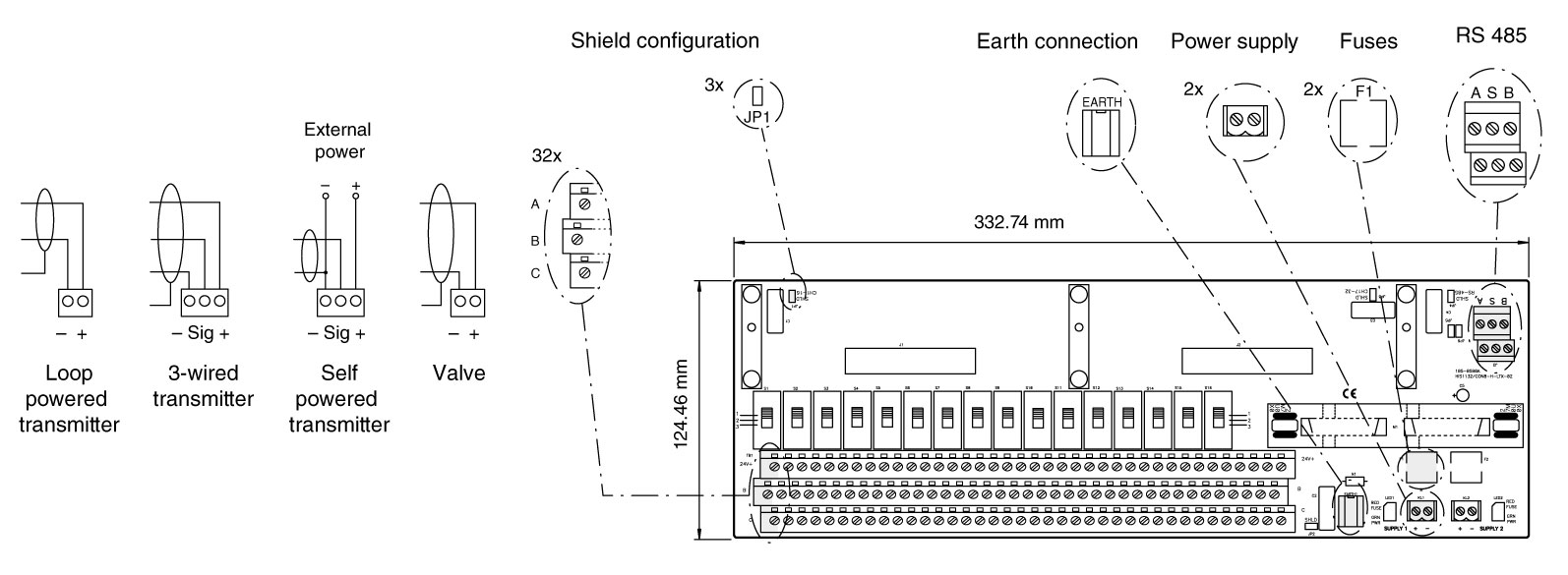

| Connection | field side: fixed screw terminalscontrol side: PCS-specified connectorRS 485 interface: removable screw terminalspower: removable screw terminals |
| Mass | approx. 700 g |
| Dimensions | 333 x 125 x 208 mm (13.1 x 4.9 x 8.2 inch) (W x H x D) , depth including module assembly with HiDMux2700 |
| Height125 mmWidth333 mmDepth208 mm | Height125 mmWidth333 mmDepth208 mm |
| Mounting | DIN rail mounting |
| Height | 125 mm |
| Width | 333 mm |
| Depth | 208 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
