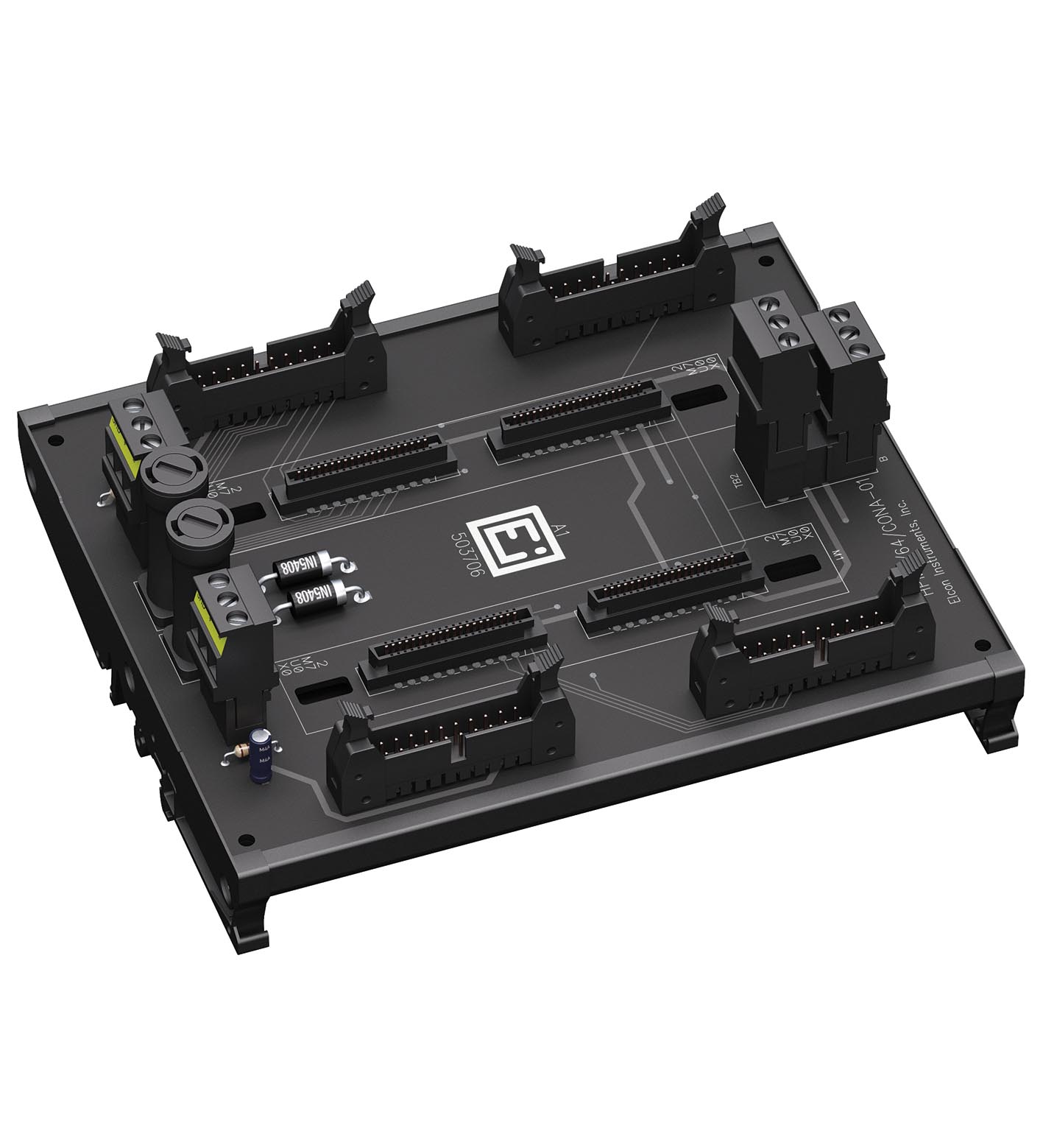

TECHNICAL DATA
规格参数
Supply
| Rated voltage | 24 V DC |
|---|---|
| Fusing | 2 A , 5 x 20 mm (0.2 x 0.8 inch) |
| Power dissipation | 0.7 W , with Multiplexer |
| Reverse polarity protection | yes |
| HART signal channels | HART signal channels |
| Number of channels64 unbalanced signal loops | Number of channels64 unbalanced signal loops |
| Number of channels | 64 unbalanced signal loops |
| Supply | yes |
| HART signal channels | 30 V DC |
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Relative humidity | 5 ... 90 %, non-condensing |
| Core cross section | 2.5 mm2 (16 AWG) |
| Connection | HART loop interface: connectors depending on versionRS-485 interface: removable screw terminalspower: removable screw terminals |
| Mass | approx. 500 g |

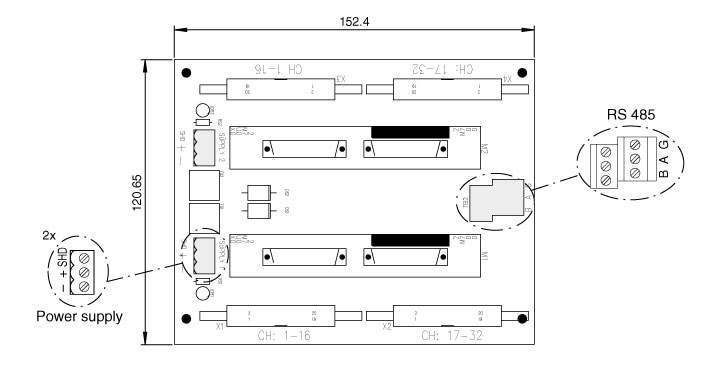

| Dimensions | 152 x 121 x 142 mm (6 x 4.75 x 5.6 inch) (W x H x D) , depth including module assembly with HiDMux2700 |
| Height121 mmWidth152 mmDepth142 mm | Height121 mmWidth152 mmDepth142 mm |
| Mounting | DIN rail mounting |
| Height | 121 mm |
| Width | 152 mm |
| Depth | 142 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
