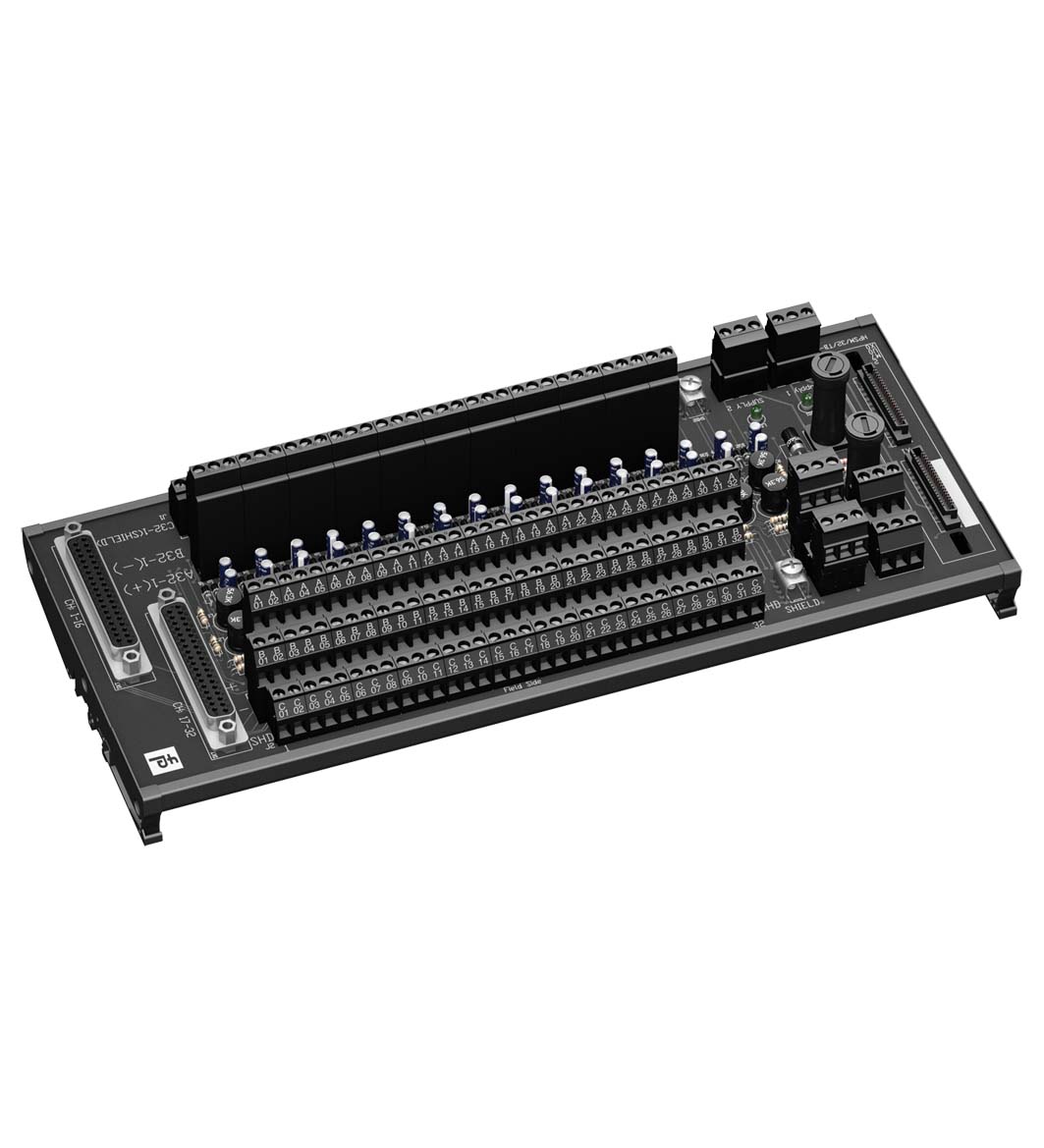

TECHNICAL DATA
规格参数
Supply

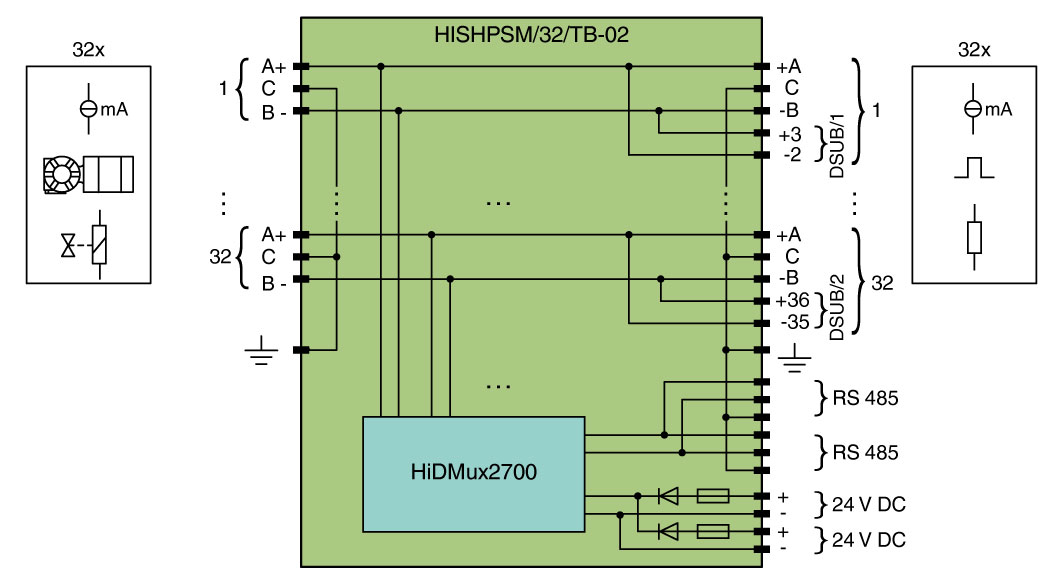

| Nominal voltage | 24 V DC |
|---|---|
| Fusing | 100 mA , 5 x 20 mm (0.2 x 0.8 inch) |
| Power dissipation | 0.7 W , with Multiplexer |
| Reverse polarity protection | yes |
| HART signal channels | HART signal channels |
| Number of channels32 unbalanced signal loops | Number of channels32 unbalanced signal loops |
| Number of channels | 32 unbalanced signal loops |
| Type/number | 2 x RS-485 |
| Supply | yes |
| HART signal channels | 30 V DC |
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Relative humidity | 5 ... 90 %, non-condensing |
| Core cross section | 2.5 mm2 (16 AWG) |
| Connection | field side: screw terminalscontrol side: screw terminals/Sub-D socket 2 x 37-pinRS 485 interface: removable screw terminalspower: removable screw terminals |
| Mass | approx. 700 g |
| Dimensions | 300 x 127 x 186 mm (11.8 x 5 x 7.3 inch) (W x H x D) , depth including module assembly with HiDMux2700 |
| Height127 mmWidth300 mmDepth186 mm | Height127 mmWidth300 mmDepth186 mm |
| Mounting | DIN rail mounting |
| Height | 127 mm |
| Width | 300 mm |
| Depth | 186 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
