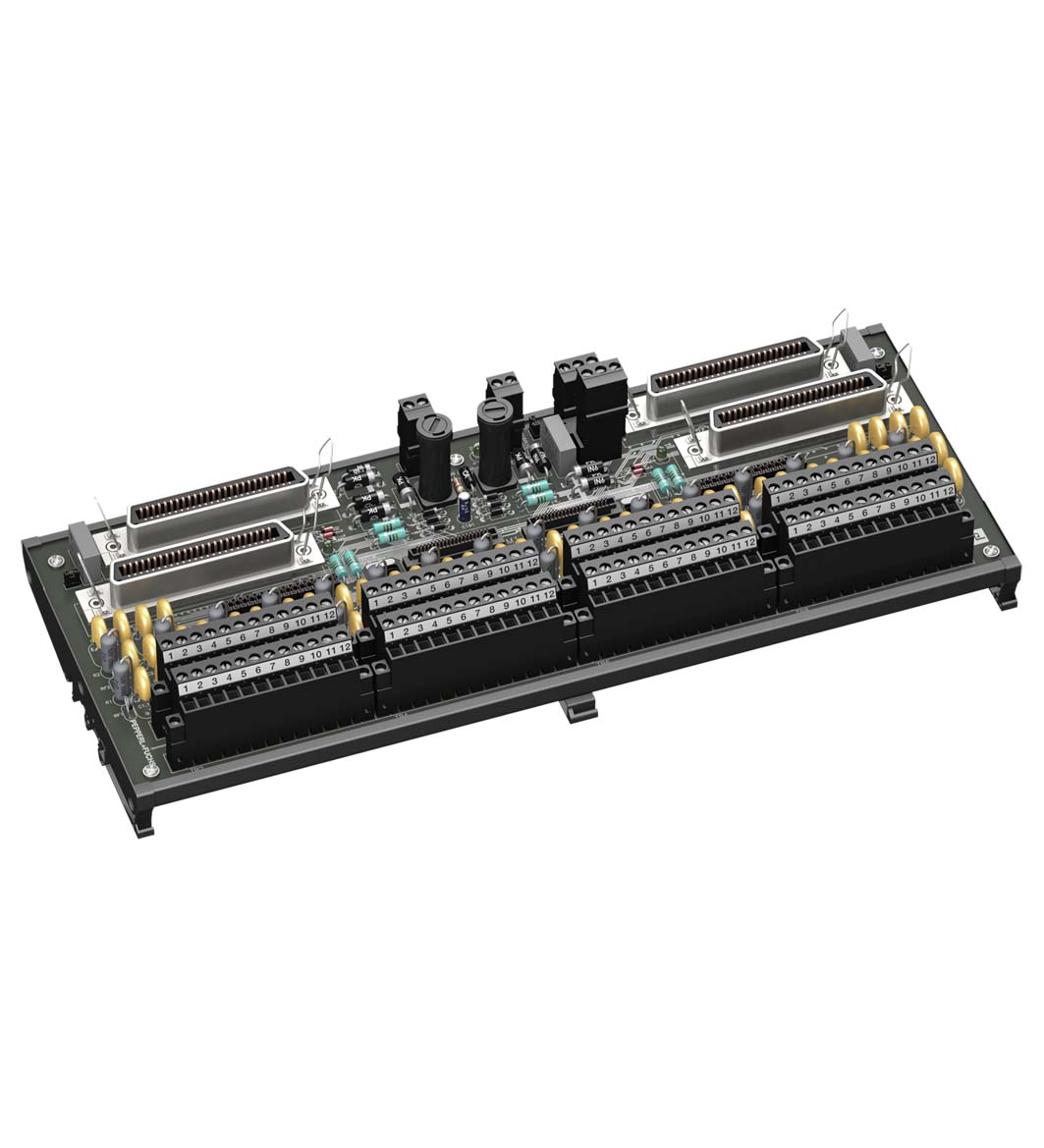

产品数据表
Datasheet
可下载打开资料
TECHNICAL DATA
规格参数
Supply
| Rated voltage | 20 ... 30 V DC |
|---|---|
| Fusing | 315 mA , 5 x 20 mm (0.2 x 0.8 inch) |
| Power dissipation | 0.7 W , with Multiplexer |
| Reverse polarity protection | yes |
| HART signal channels | HART signal channels |
| Number of channels32 unbalanced signal loops | Number of channels32 unbalanced signal loops |
| Number of channels | 32 unbalanced signal loops |
| Supply | yes |
| HART signal channels | 30 V DC |
| Ambient temperature | 0 ... 55 °C (32 ... 131 °F) |
| Relative humidity | 5 ... 90 %, non-condensing |
| Core cross section | 2.5 mm2 (16 AWG) |

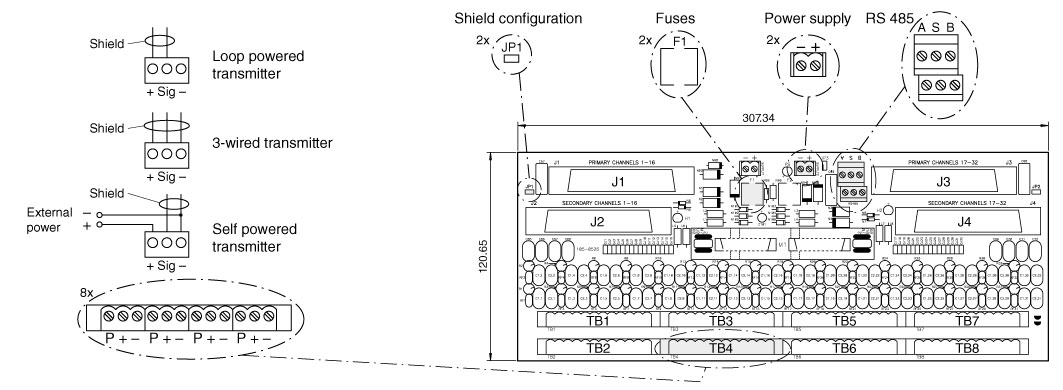

| Connection | field side: 5.08 mm removable screw terminalscontrol side: 50-pin Centronics plugRS-485 interface: 5.08 mm removable screw terminalspower: removable screw terminals |
| Mass | approx. 500 g |
| Dimensions | 307 x 120 x 190 mm (12.1 x 4.7 x 7.5 inch) (W x H x D) , depth including module assembly with HiDMux2700 |
| Height120 mmWidth307 mmDepth190 mm | Height120 mmWidth307 mmDepth190 mm |
| Mounting | DIN rail mounting |
| Height | 120 mm |
| Width | 307 mm |
| Depth | 190 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
