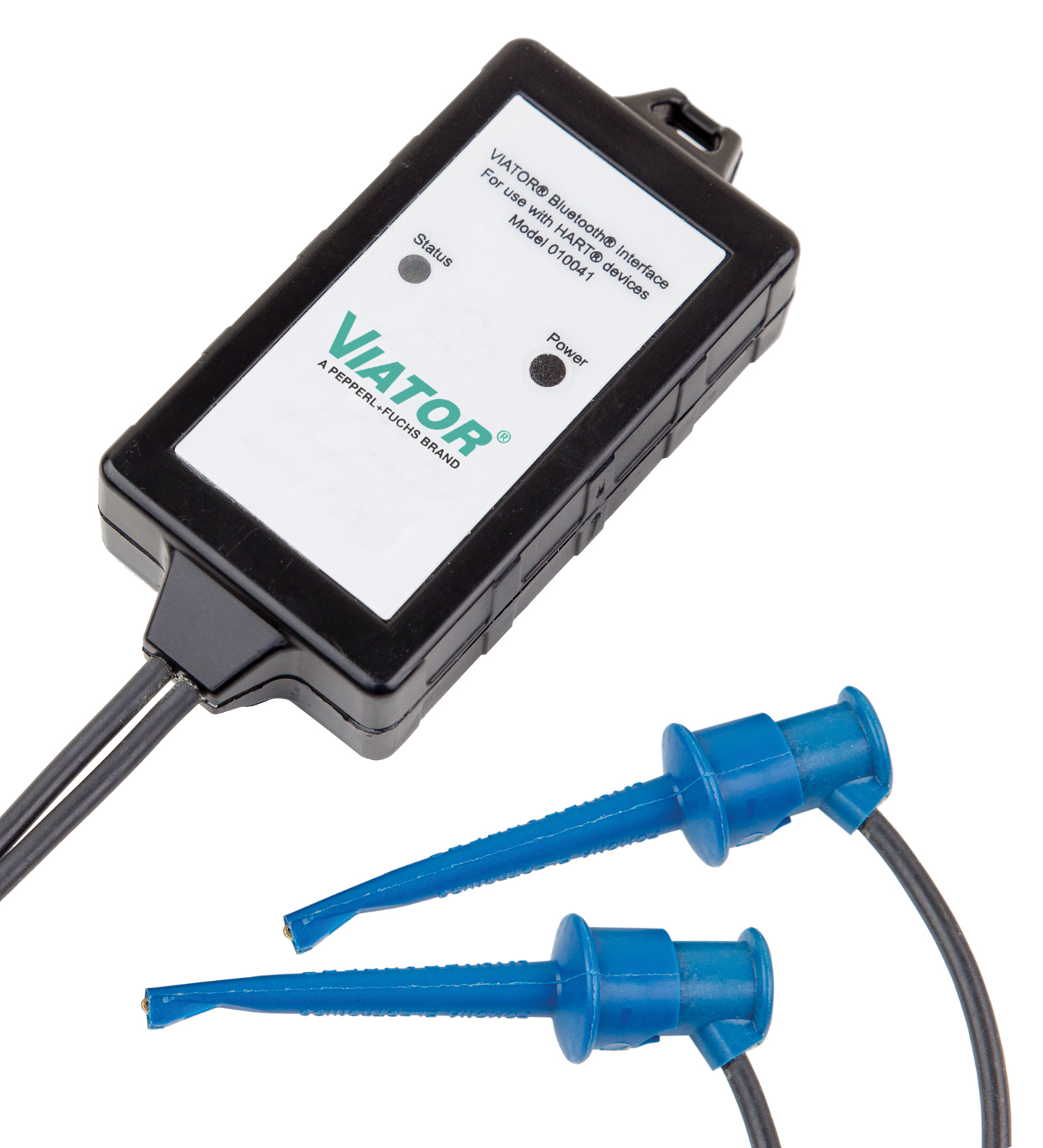

TECHNICAL DATA
规格参数
Electrical specifications
| Battery type | 3 x AAA-size batteries, 1.5 V DC, alkaline cells, type LR03, Energizer® EN92 |
|---|---|
| Operating duration | approx. 20 h (continuous operation) |
| Physical | Bluetooth v2.0, Class 1, EDR |
| Transmitter frequency | 2402 ... 2480 MHz (Bluetooth) |
| Transmitter radiated power | 18 dBm |
| Detection range | 100 m in air |
| Antenna | integrated omnidirectional |
| Signal | HART-compliant trapezoidal wave at 1200/2200 Hz |
| Radio and telecommunication terminal equipment | Radio and telecommunication terminal equipment |
| Directive 2014/53/EUEN 300 328 V2.1.1 , EN 301 489-17 V3.1.1 | Directive 2014/53/EUEN 300 328 V2.1.1 , EN 301 489-17 V3.1.1 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN 50581:2012 | Directive 2011/65/EU (RoHS)EN 50581:2012 |
| Directive 2014/53/EU | EN 300 328 V2.1.1 , EN 301 489-17 V3.1.1 |
| Directive 2011/65/EU (RoHS) | EN 50581:2012 |
| Hardware requirements | any PC, PDA, laptop, or other computer with Bluetooth capability |
| Operating system | Windows® , Windows Mobile® or any OS that supports Bluetooth COM port |
| FCC approval | FCC Part 15 B , FCC ID: T9J-RN41-3 |
| IC approval | ICES-003 , IC ID: 6514A-RN413 |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | 0 ... 95% , non-condensing |
| Degree of protection | IP20 |
| Connection | HART I/O Interface cable , 0.5 mm² (20 AWG) fine-strand , termination test clips |
| Material | Polycarbonate |
| Dimensions | 88 mm x 42 mm x 19 mm |
| Height19 mmWidth42 mmLength88 mm | Height19 mmWidth42 mmLength88 mm |
| Cable length | 0.5 m |
| Height | 19 mm |
| Width | 42 mm |
| Length | 88 mm |
| EU-type examination certificate | CML 16 ATEX 2379 |
| Marking II 1G Ex ia IIC T4 Ga , -20 °C ≤ Tamb ≤ 50 °C | Marking II 1G Ex ia IIC T4 Ga , -20 °C ≤ Tamb ≤ 50 °C |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012 / A11:2013 , EN 60079-11:2012 | Directive 2014/34/EUEN 60079-0:2012 / A11:2013 , EN 60079-11:2012 |
| Marking | II 1G Ex ia IIC T4 Ga , -20 °C ≤ Tamb ≤ 50 °C |
| Directive 2014/34/EU | EN 60079-0:2012 / A11:2013 , EN 60079-11:2012 |
| UL approval | E106378 |
| Approved forClass I, Div. 1 or Div. 2 Groups A, B, C, D T4 Class I, Zone 0, AEx ia IIC T4 Ga; Ex ia IIC T4 Ga | Approved forClass I, Div. 1 or Div. 2 Groups A, B, C, D T4 Class I, Zone 0, AEx ia IIC T4 Ga; Ex ia IIC T4 Ga |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx CML 16.0138IECEx markingEx ia IIC T4 Ga , -20 °C to +50 °C | IECEx certificateIECEx CML 16.0138IECEx markingEx ia IIC T4 Ga , -20 °C to +50 °C |
| Approved for | Class I, Div. 1 or Div. 2 Groups A, B, C, D T4 Class I, Zone 0, AEx ia IIC T4 Ga; Ex ia IIC T4 Ga |
| IECEx certificate | IECEx CML 16.0138 |
| IECEx marking | Ex ia IIC T4 Ga , -20 °C to +50 °C |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
