HOLDER-BRACKET-3200-IDMx61-B-N

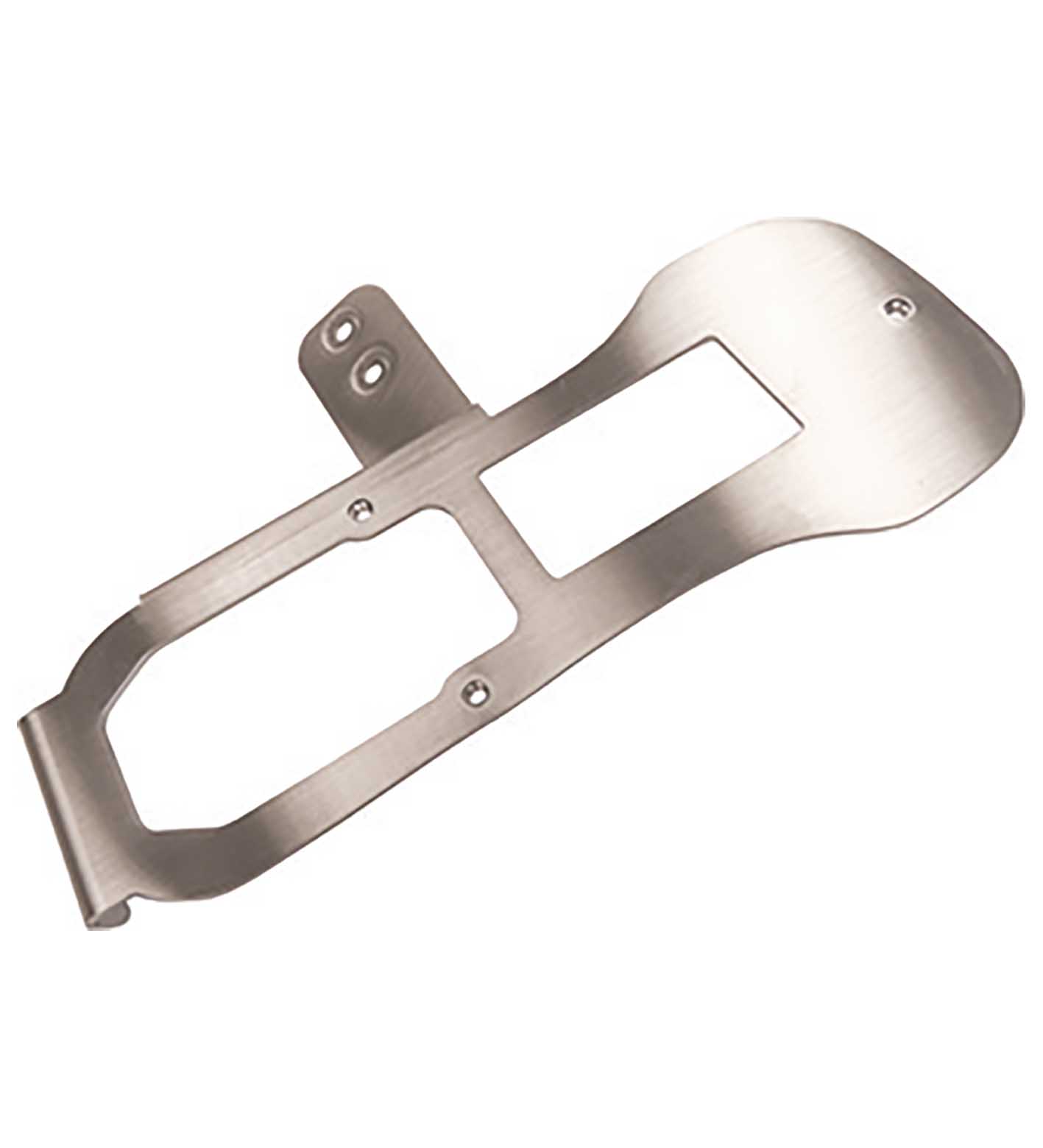

HOLDER-BRACKET-3200-IDMx61-B-N Bracket for 1-D/2-D code handheld readers for VisuNet FLX

Stainless steel bracket to mount IDM-Zx-x6x-B-Jx-BT-N0 base station to AG-3200 housing

TECHNICAL DATA

规格参数

Mechanical specifications

Material	1.4301 stainless steel
Mass	250 g

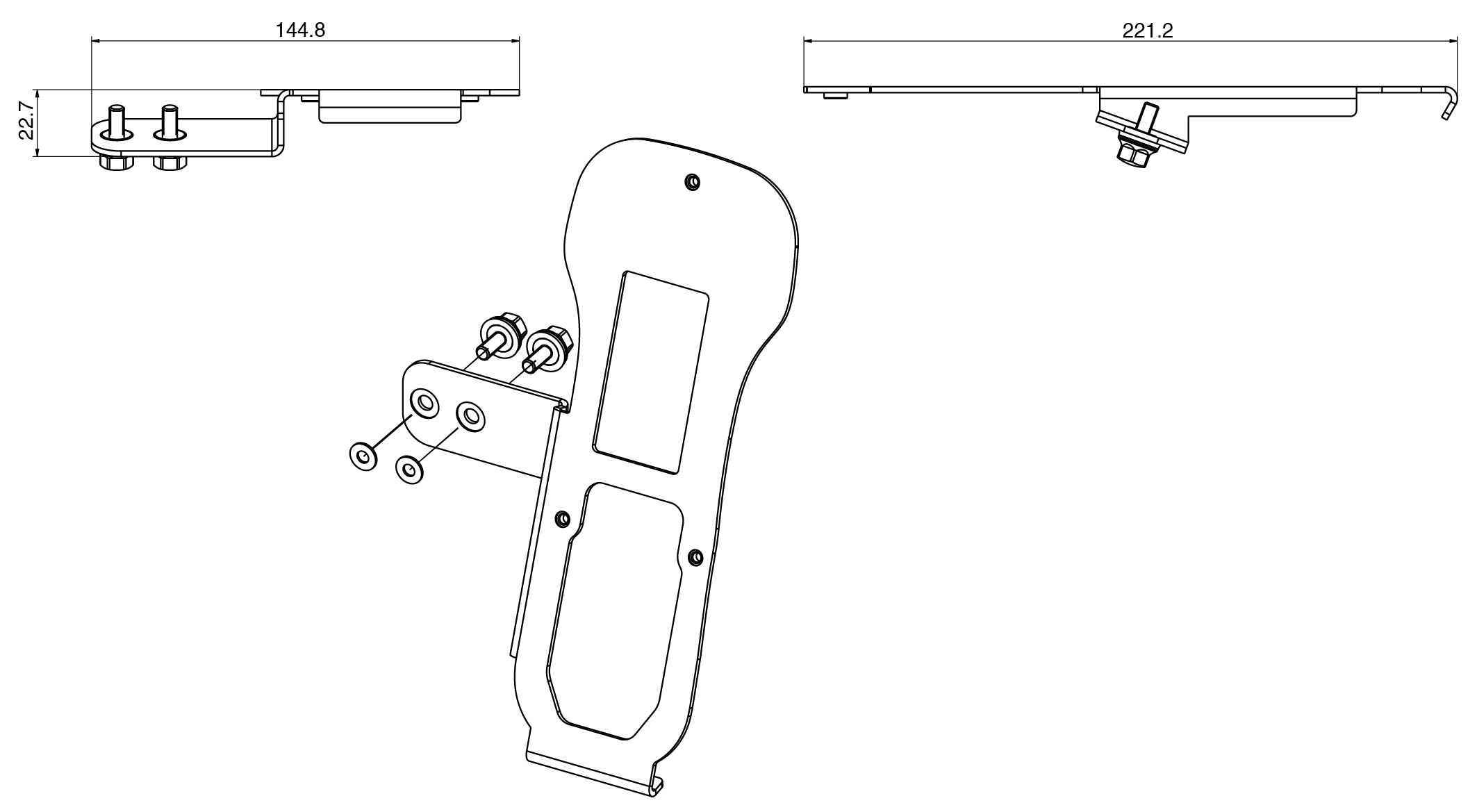

Mounting	Included in delivery: 2 x M5 screws and mounting adapter Tightening torque: 6 NmUse the enclosed 3 x M4 screws to tighten the base station to the holder bracket. Refer to the dimension drawing concerning the different lengths of screws. For more information, refer to the VisuNet FLX System manual.
