HOLDER-BRACKET-SK-IDM-Z2-N0

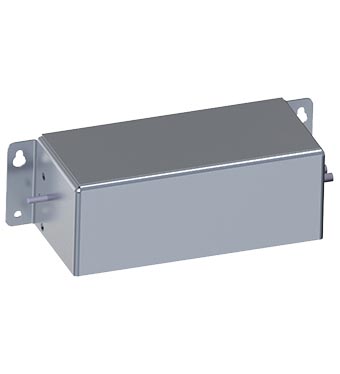

HOLDER-BRACKET-SK-IDM-Z2-N0 Accessory for IDM-Z2-*

Bracket for wall mounting of the SK-IDM-Z2-J2-* supply cable

TECHNICAL DATA

规格参数

Mechanical specifications

Material	AISI 304 1.4301 stainless steel
Mass	0.5 kg
Mounting	Suitable screws must be chosen by the installer.
Note	The SK-IDM-Z2-J2-* supply cables are not included and need to be ordered separately.
