HOLDER-BRACKET-XX00-IDMx61-B-N

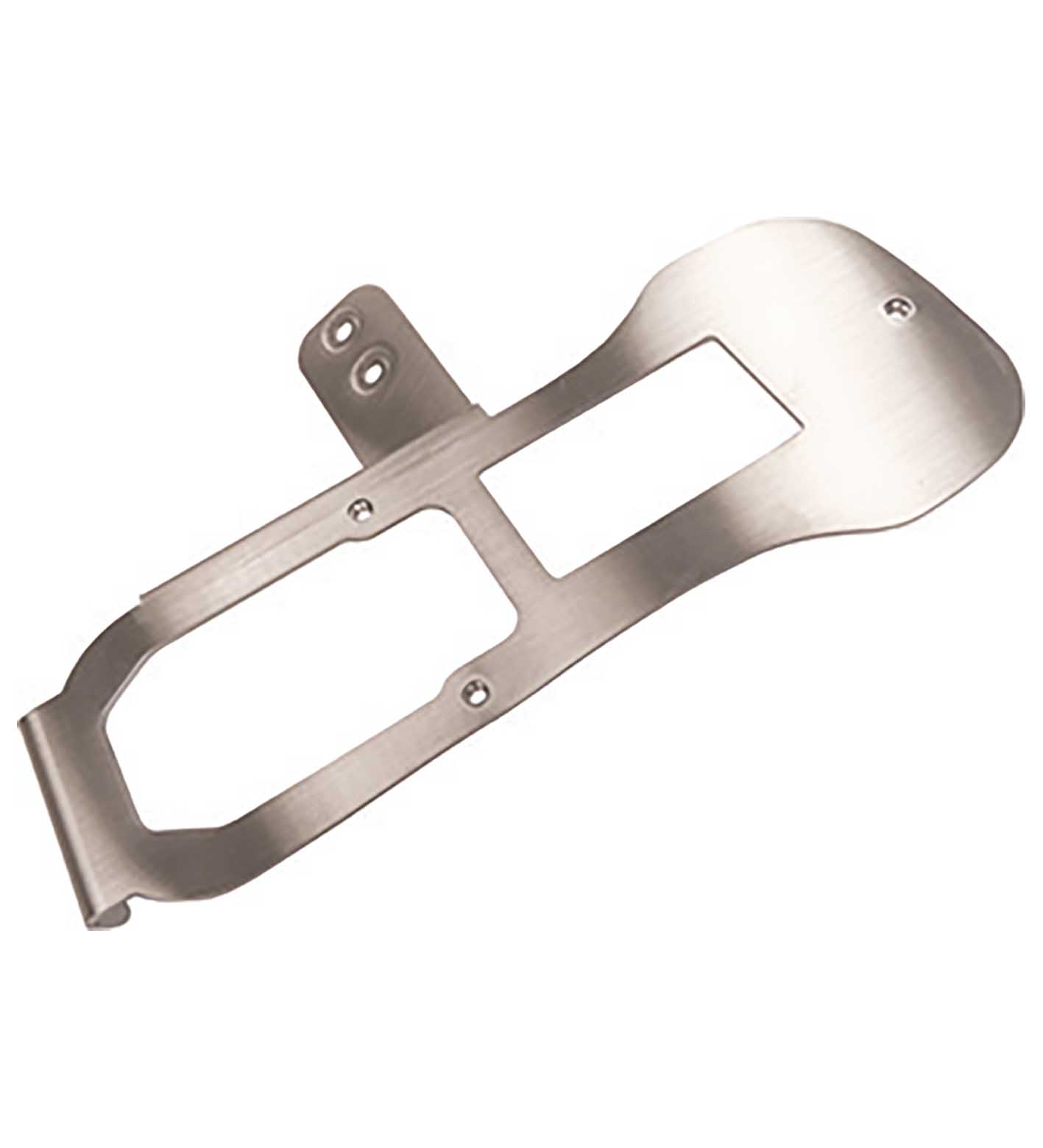

HOLDER-BRACKET-XX00-IDMx61-B-N Bracket for 1-D/2-D code handheld readers for VisuNet GXP 21.5"

Stainless steel bracket to mount IDM-Zx-x6x-B-Jx-BT-N0 base station to AG-XX00 housing

TECHNICAL DATA

规格参数

Mechanical specifications

Material	1.4301 stainless steel
Mass	250 g

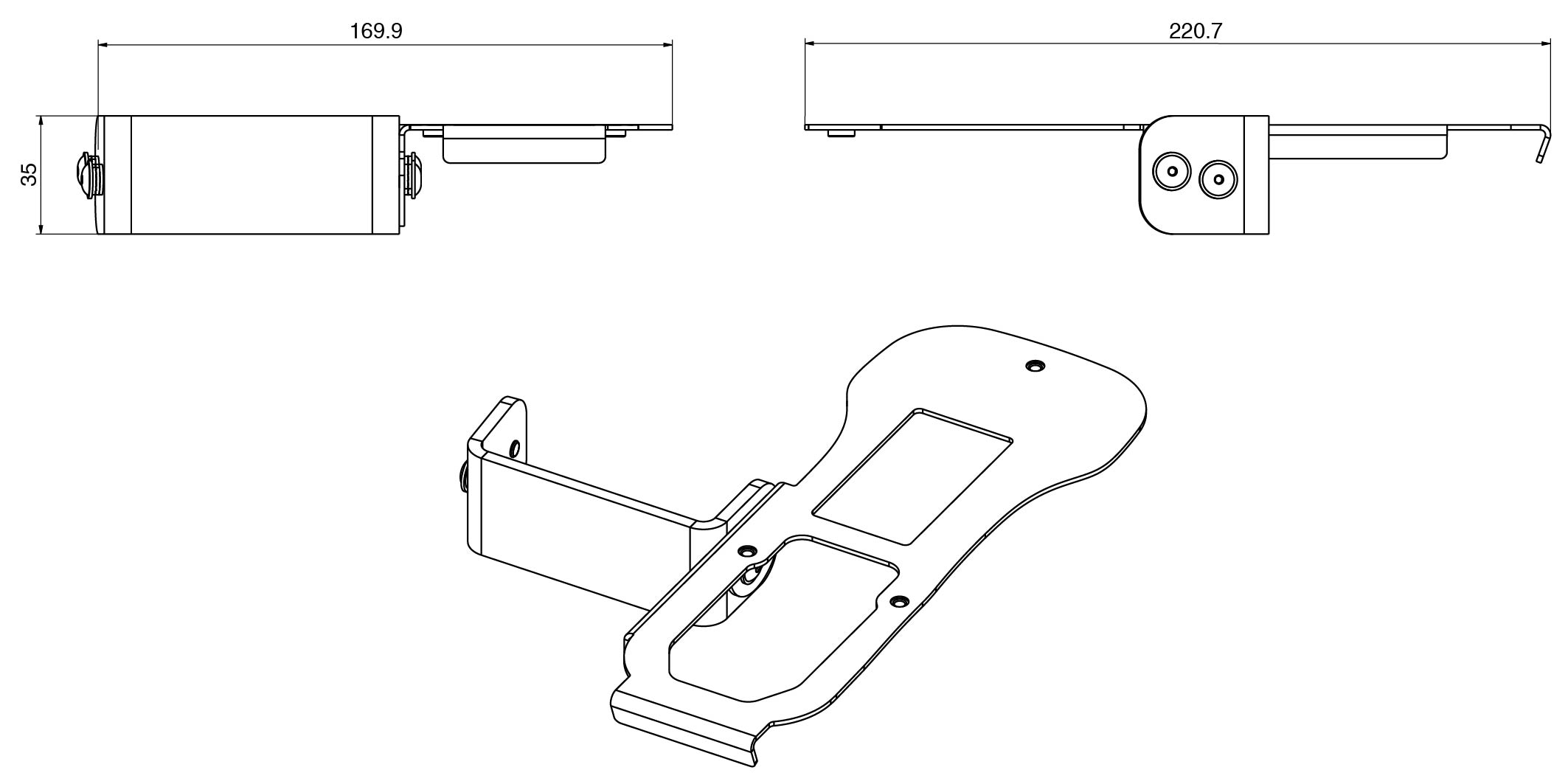

Mounting	Included in delivery: 2 x M5 screws and mounting adapter Tightening torque: 6 NmUse the enclosed 3 x M4 screws to tighten the base station to the holder bracket. Refer to the dimension drawing concerning the different lengths of screws. For more information, refer to the VisuNet GXP -22F system manual

DOCUMENTS & DOWNLOADS

产品数据表 Datasheet

语言：en

已就绪 · 可下载下载文件

暂无 STP 图纸。
