TECHNICAL DATA
规格参数
General specifications
| Equipment architecture | switching element: changeoverswitching on point: 15 mbar ± 3 mbar, switching off point: 9 mbar ± 3 mbarmax. hydrostatic pressure: 500 mbar |
|---|---|
| Series | HR-021**1 |
| Rated voltage | 253 V AC , 50/60 Hz |
| Current consumption | max. 1 A |
| Degree of protection | IEC 60529:2001 |
| Process conditions | Process conditions |
| Process temperature-20 ... 70 °C (-4 ... 158 °F) | Process temperature-20 ... 70 °C (-4 ... 158 °F) |
| Process temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Degree of protection | IP54 |
| Connection | flat plug 6.3 x 0.8 mm (0.25 x 0.03 inch), DIN 46244 |
| Material | housing: PApipe: stainless steel 1.4571/316Ti or PVC |

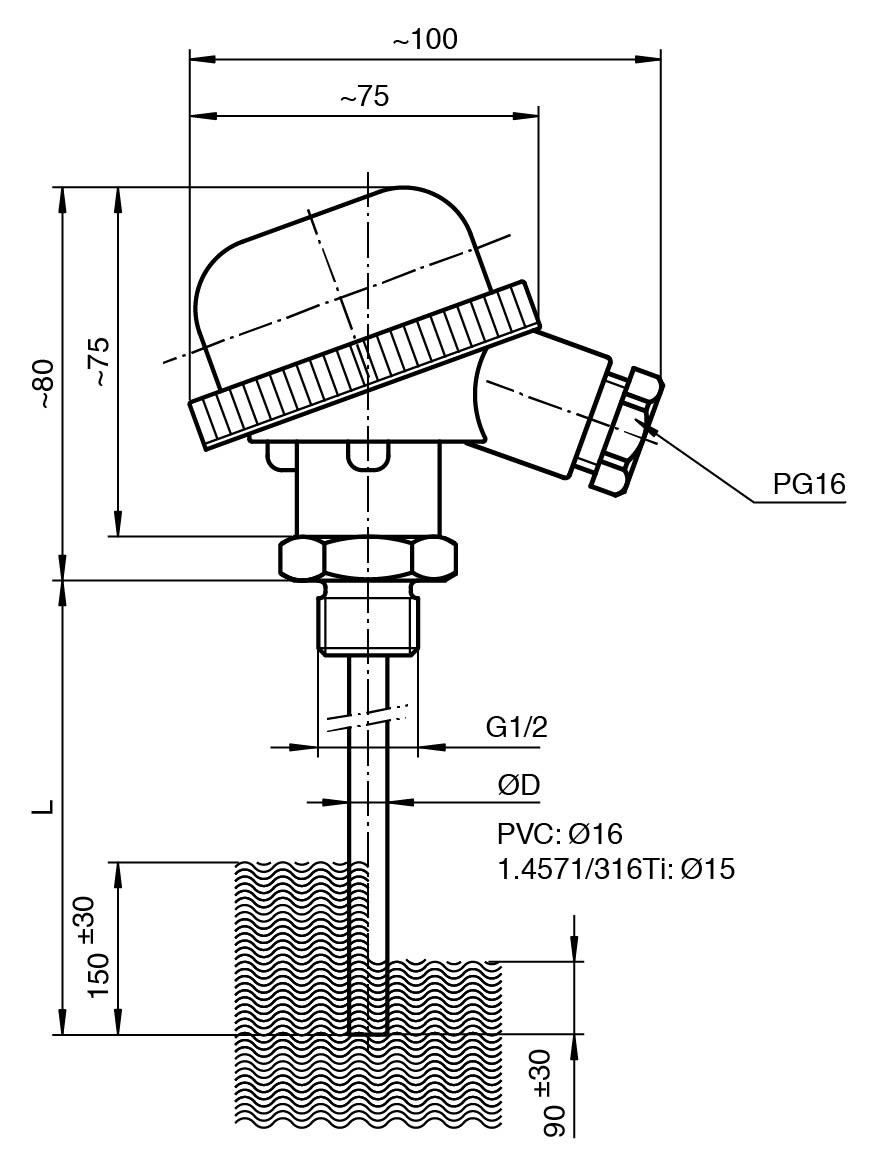

| Dimensions | housing: 100 x 75 x 80 mm (4 x 3 x 3.1 inch)pipe: length L 180 ... 5000 mm (0.6 ... 16.5 ft) |
| Process connection | thread G1/2 to ISO 228 |
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
