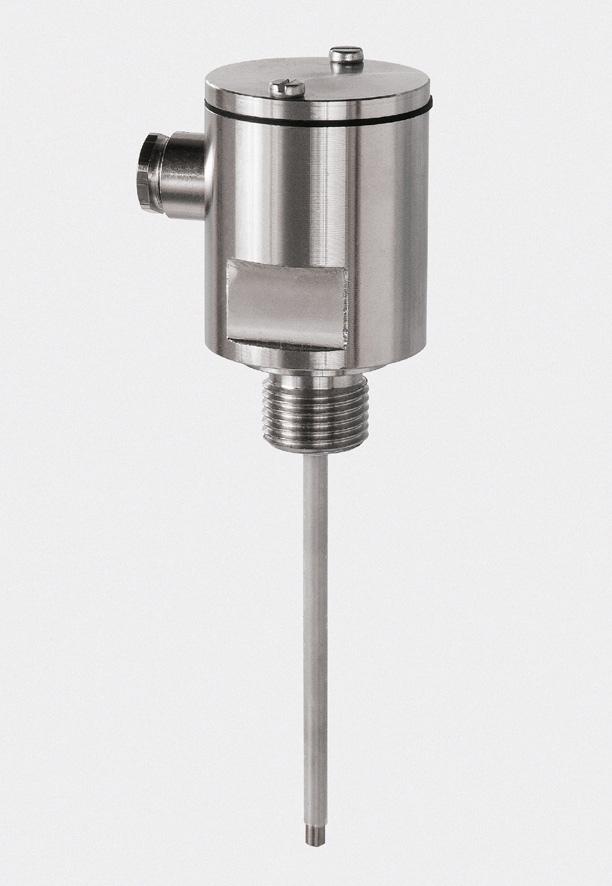

TECHNICAL DATA
规格参数
General specifications
| Type | sensor for conductive limit value detection |
|---|---|
| Equipment architecture | A measuring system consists of a rod electrode HR-6**1** with electrode relay KFA6-ER 1.6,KFD2-ER 1.6, KFD2-ER-Ex1.W.LB or KFA6-ER-Ex1.W.LB. |
| Series | HR-6**1** |
| Measured variable | measuring voltage directly from the electrode relay |
| Output signal | electrode relay creates switch signal corresponding to the selected responsiveness. |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2006 , EN 61326-2-3:2006 | Directive 2014/30/EUEN 61326-1:2006 , EN 61326-2-3:2006 |
| Directive 2014/30/EU | EN 61326-1:2006 , EN 61326-2-3:2006 |
| Degree of protection | IEC 60529:2001 |
| Process conditions | Process conditions |
| Process temperatureprocess connection 6: <= 150 °C (423 K)process connection 7: <= 90 °C (363 K)process connection 8: <= 150 °C (423 K)Process pressure (static pressure)process connection 6: ≤ 30 barprocess connection 7: ≤ 16 barprocess connection 8: ≤ 6 bar | Process temperatureprocess connection 6: <= 150 °C (423 K)process connection 7: <= 90 °C (363 K)process connection 8: <= 150 °C (423 K)Process pressure (static pressure)process connection 6: ≤ 30 barprocess connection 7: ≤ 16 barprocess connection 8: ≤ 6 bar |
| Process temperature | process connection 6: <= 150 °C (423 K)process connection 7: <= 90 °C (363 K)process connection 8: <= 150 °C (423 K) |
| Process pressure (static pressure) | process connection 6: ≤ 30 barprocess connection 7: ≤ 16 barprocess connection 8: ≤ 6 bar |
| Degree of protection | IP65 with terminal boxIP52 with plug connector |
| Connection | terminals in plug connector or in terminal boxplug connector: terminal, max. 1 mm2terminal box: terminal, max. 2.5 mm2 |
| Material | housing: stainless steel 1.4571/316Ti, PP or PTFEprocess connection: stainless steel 1.4571/316Ti, PP or PTFEelectrode rod: stainless steel 1.4571/316Ti, Hastelloy C, titanium or tantalum |

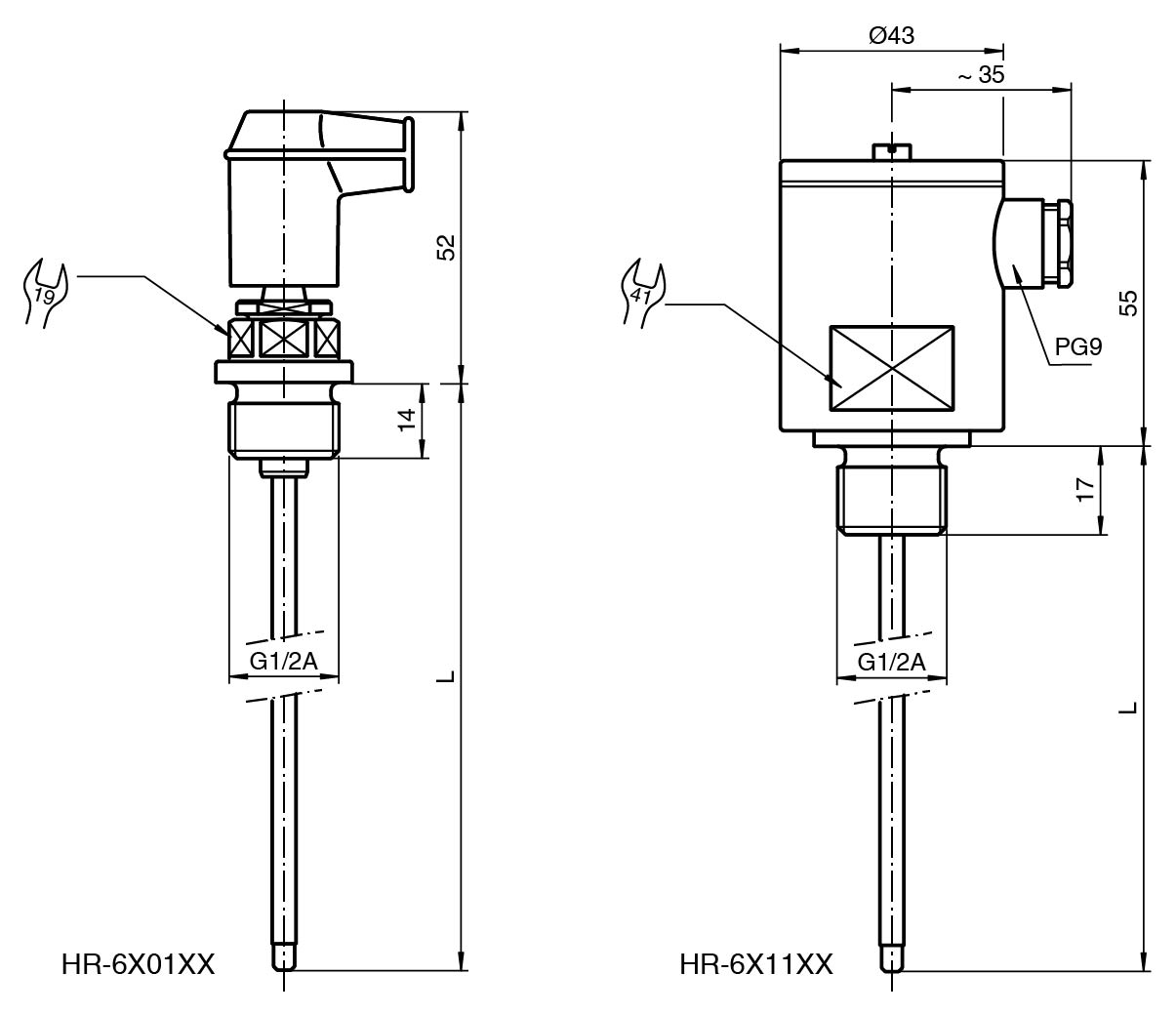

| Dimensions | housing: max. Ø43 mm (1.7 inch), height max. 55 mm (2.2 inch)rod: length L max. 3000 mm (10 foot) |
| Process connection | thread G1/2 to ISO 228 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
