TECHNICAL DATA
规格参数
General specifications
| Type | sensor for conductive limit value detection |
|---|---|
| Equipment architecture | A measuring system consists of a suspension electrode HR-690121 with electrode relay KFA6-ER 1.6,KFD2-ER 1.6, KFD2-ER-Ex1.W.LB or KFA6-ER-Ex1.W.LB. |
| Series | HR-690121 |
| Versions | HR-690121/05, suspension electrode, 5 m (5.5 yd) cable, PVCHR-690121/10, suspension electrode, 10 m (11 yd) cable, PVCHR-690121/20, suspension electrode, 20 m (22 yd) cable, PVC |
| Measured variable | measuring voltage directly from the electrode relay |
| Output signal | electrode relay creates switch signal corresponding to the selected responsiveness. |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2006 , EN 61326-2-3:2006 | Directive 2014/30/EUEN 61326-1:2006 , EN 61326-2-3:2006 |
| Directive 2014/30/EU | EN 61326-1:2006 , EN 61326-2-3:2006 |
| Degree of protection | IEC 60529:2001 |
| Process conditions | Process conditions |
| Process temperature-20 ... 60 °C (-4 ... 140 °F) | Process temperature-20 ... 60 °C (-4 ... 140 °F) |
| Process temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Material | thread, cable insulation and electrode: PVCelectrode tip: stainless steel 1.4571/316Ti |

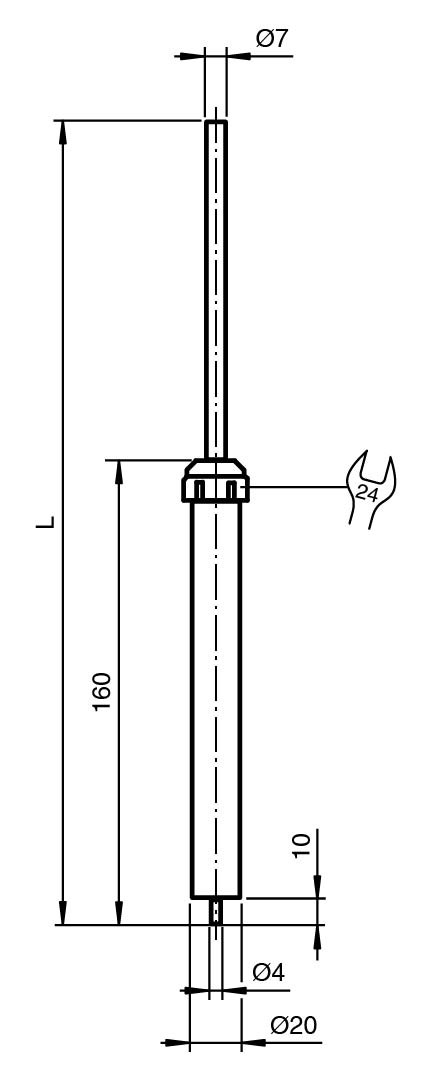

| Dimensions | electrode: Ø20 mm (0.8 inch), length 160 mm (6.3 inch)cable: length max. 20 m (21.9 yard) |
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
