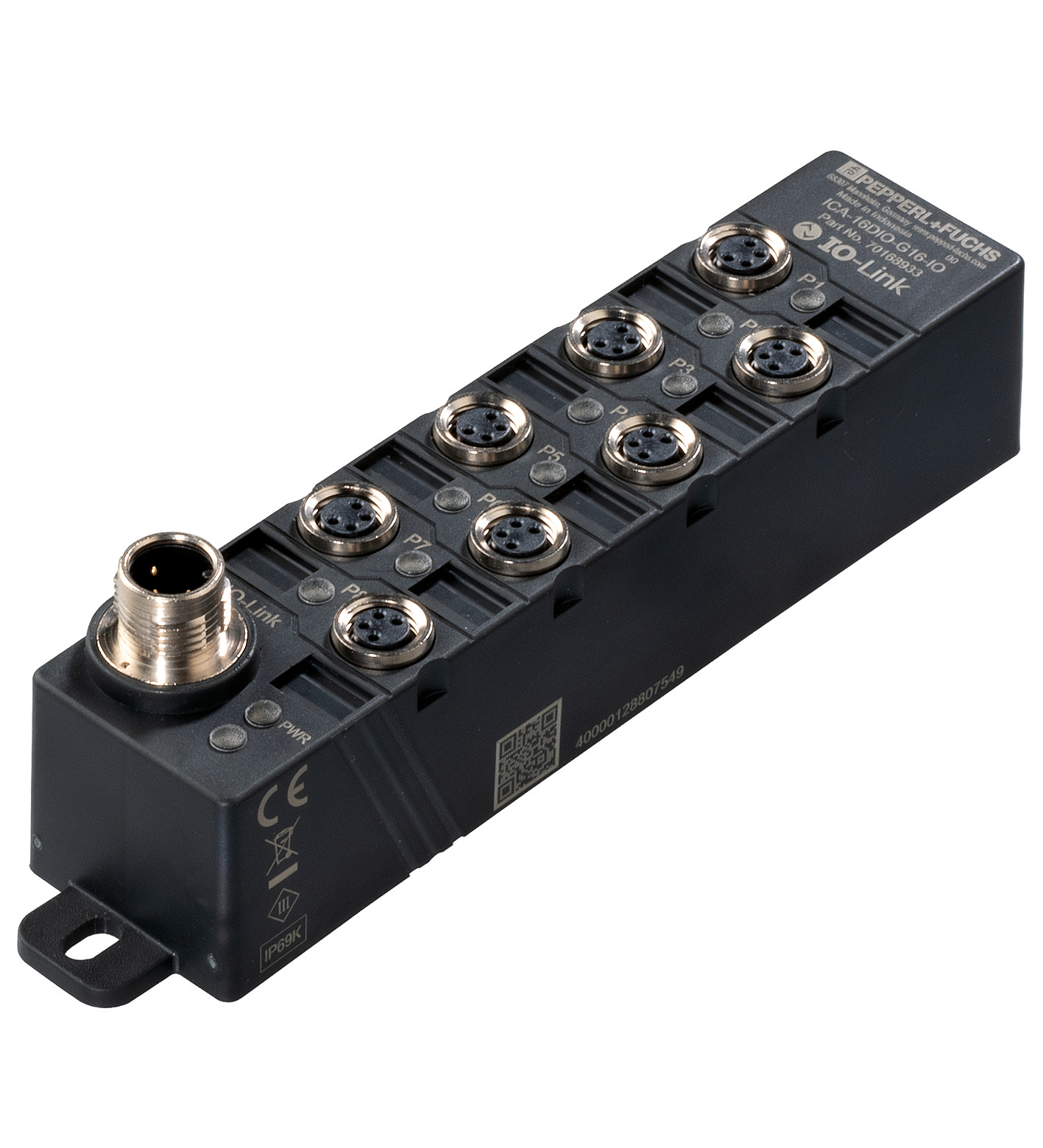

IO-Link Parameter Datasheet ICA-16DI-G16-IO
已就绪 · 可下载下载文件
TECHNICAL DATA
规格参数
General specifications
| MTBF | 172 a |
|---|---|
| LED PWR | LED green: flashing with short break (1 Hz) - IO-Link mode |
| LED IO | Switch state (IO); multicolor LEDyellow: only IO pin 4 is activeblue: only IO pin 2 is activegreen: both IO pin 4 and pin 2 are activered: overload at sensor supply or output |
| Operating voltage | 18 ... 30 V DC, PELV |
| No-load supply current | ≤ 30 mA |
| Operating current | Total current of all inputs max. 3A (limited by fuse) |
| Interface type | IO-Link |
| IO-Link revision | 1.1 |
| Device profile | Identification and Diagnosis - I&D Firmware update |
| Process data | Inputs 3 Byte - Input signals 16 Bit - diagnosis signals 5 Bit |
| Vendor ID | 1 (0x0001) |
| Device ID | 985857 (0x0F0B01) |
| Data transfer rate | COM3 (230.4 kbits/s) |
| Min. cycle time | 1 ms |
| SIO mode support | no |
| Compatible master port type | Class A |
| Number/Type | 16 Inputs for 3-wire sensors (PNP), DC (IN1 ... IN16) |
| Supply | from IO-Link |
| Current loading capacity | 180 mA , overload and short-circuit protected |
| Input current | ≤ 5 mA (limited internally) |
| Switching point | Type 3 according to IEC 61131-2 |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 EN 55011:2016 | Directive 2014/30/EUEN 61326-1:2013 EN 55011:2016 |
| Directive 2014/30/EU | EN 61326-1:2013 EN 55011:2016 |
| Degree of protection | EN 60529:2000 |
| Input | EN 61131-2:2007 |
| Communication interface | IEC 61131-9 / IO-Link V1.1.4 |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006 |
| UL approval | E223772 Power limitation by fuse in accordance with UL248-1, UL248-14, rated current 3 A. Protection of the personnel and the plant is not ensured if the product is not being used according to its intended use. Load specification DC General Use / DC Pilot Duty Degree of protection not tested by UL; tested by Pepperl+Fuchs SE Units shall be connected using CYJV or PVVA cord having suitable ratings min.50 V, min 4 A, min. 100 °C. The product must be installed in accordance with local laws. The device shall be installed on non-flammable, straight surface. |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 5000 m above MSL |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks |
| Vibration resistance | 0.35 mm / 5 g 5 ... 500 Hz |
| Pollution degree | 3 |
| Degree of protection | IP67 / IP68 / IP69k |

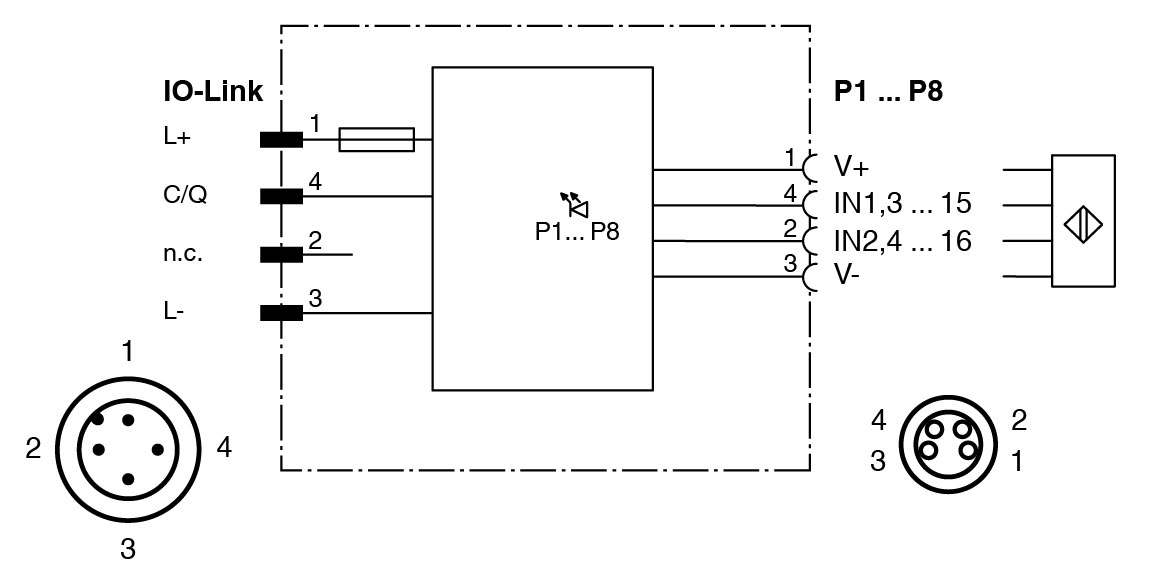

| Connection | IO-Link: M12 round plug connector in accordance with EN 61076-2-101, LM type (4-pin, connector contacts, screw-locking, A-coded)Female connector: LF type or similarIN: M8 round plug connector in accordance with EN 61076-2-104, LF type (4-pin, socket contacts, screw-locking, A-coded)Mating connector: LM type or similar |
| Material | Material |
| HousingPBT | HousingPBT |
| Mass | 110 g |
| Tightening torque, cable gland | 0.4 Nm (M12 connector),0.2 Nm (M8 connector) |

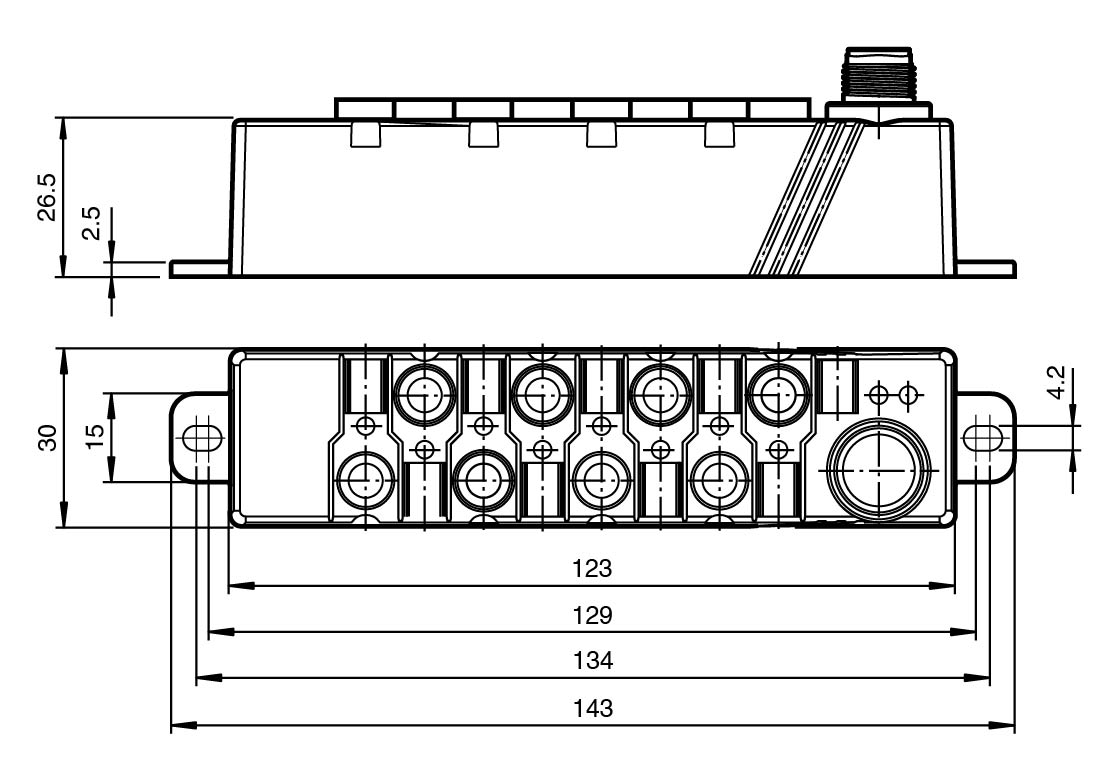

| Dimensions | Dimensions |
| Height29.35 mmWidth30 mmLength143 mm | Height29.35 mmWidth30 mmLength143 mm |
| Mounting | screw mounting |
| Housing | PBT |
| Height | 29.35 mm |
| Width | 30 mm |
| Length | 143 mm |
