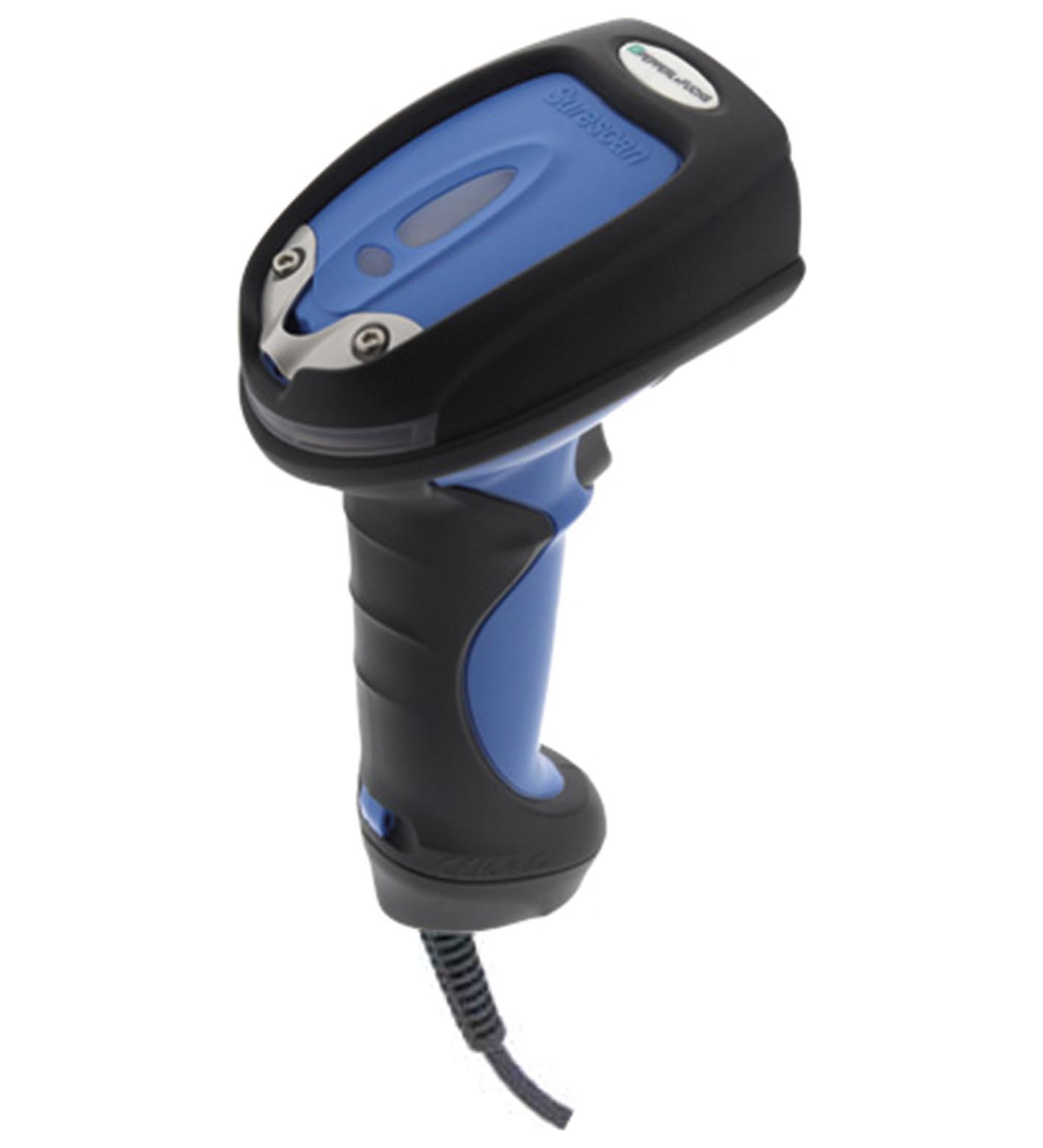

TECHNICAL DATA
规格参数
General specifications
| Type | scan frequency: 500 Hz (1-D models), 60 Hz (2-D model) |
|---|---|
| Light type | LED, visible red light (630 / 1310 nm) ambient light immunity 100 000 lx |
| Readable codes | barcode types: Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, UK/Plessey, IATA, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, Telepen, GS1 DataBar, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post stacked code types (depending on model selected): PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F 2-D code types (depending on model selected): Data Matrix, QR, MicroQR, Aztec, Maxicode |
| Read distance | 20 ... 850 mm (1-D model) 30 ... 400 mm (2-D model) |
| Resolution | ca. ≥ 0.76 mm (1-D models) ca. ≥ 0.13 mm (2-D model) |
| Indicators | 2 x LED (operating state) beeper/buzzer (can be switched off) |
| Interface type | RS-232, RS-422, and USB |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 | Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 |
| Low voltage | EN 60950-1:2006+A1:2010+A2:2013+A11:2009+A12:2011 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN 50581:2012 | Directive 2011/65/EU (RoHS)EN 50581:2012 |
| Directive 2014/30/EU | EN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 |
| Directive 2011/65/EU (RoHS) | EN 50581:2012 |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) (1-D model) -40 ... 70 °C (-40 ... 158 °F) (2-D model) |
| Relative humidity | 95 % non-condensing |
| Impact resistance | 50 fall tests from 2 m height onto concrete |
| Degree of protection | IP65 |
| Mass | approx. 200 g without cable |
| Dimensions | 104 mm x 185 mm x 76 mm |
| EU-type examination certificate | IBExU 18ATEX1049 IECEx IBE 18.0008 |
| Marking1-D model: II 2G Ex ib IIC T4 Gb [exsign] II 2D Ex ib IIIC T135°C Db2-D model:[exsign] II 2G Ex ib op is IIB T4 Gb [exsign] II 2D Ex ib op is IIIC T135°C Db | Marking1-D model: II 2G Ex ib IIC T4 Gb [exsign] II 2D Ex ib IIIC T135°C Db2-D model:[exsign] II 2G Ex ib op is IIB T4 Gb [exsign] II 2D Ex ib op is IIIC T135°C Db |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2018 EN 60079-11:2012 EN 60079-28:2015 | Directive 2014/34/EUEN 60079-0:2018 EN 60079-11:2012 EN 60079-28:2015 |
| Marking | 1-D model: II 2G Ex ib IIC T4 Gb [exsign] II 2D Ex ib IIIC T135°C Db2-D model:[exsign] II 2G Ex ib op is IIB T4 Gb [exsign] II 2D Ex ib op is IIIC T135°C Db |
| Directive 2014/34/EU | EN 60079-0:2018 EN 60079-11:2012 EN 60079-28:2015 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
