TECHNICAL DATA
规格参数

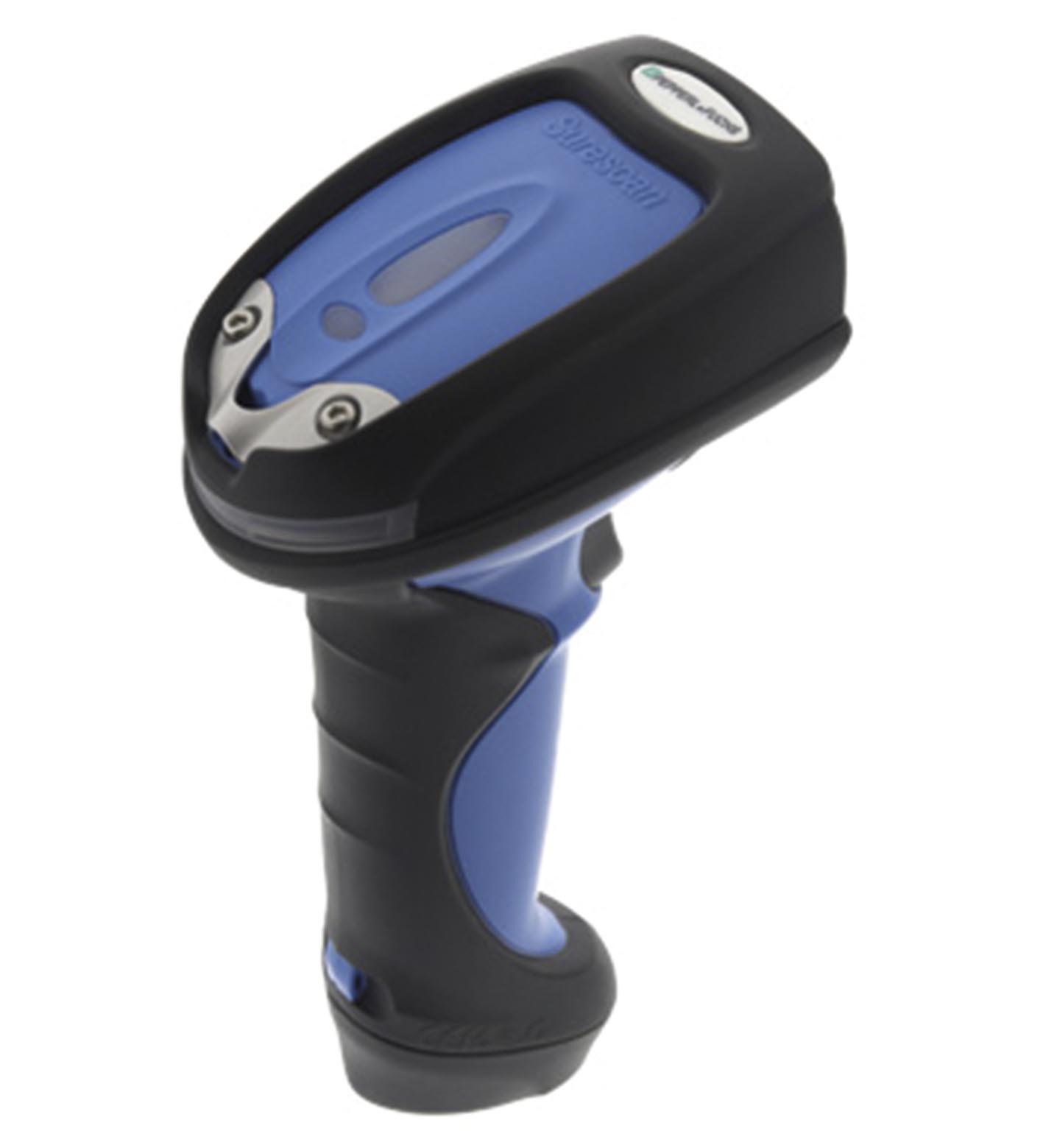

General specifications
| Radio distance (in open air) | 1-D model: max. 30 m2-D model: max. 100 m |
|---|---|
| Type | scan frequency: 500 Hz (1-D models), 60 Hz (2-D model) |
| Light type | LED, visible red light (630 / 1310 nm) ambient light immunity 100 000 lx |
| Readable codes | barcode types: Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, UK/Plessey, IATA, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, Telepen, GS1 DataBar, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post stacked code types (depending on model selected): PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F 2-D code types (depending on model selected): Data Matrix, QR, MicroQR, Aztec, Maxicode |
| Read distance | 50 ... 800 mm (1-D model) 30 ... 380 mm (2-D model) |
| Resolution | ca. ≥ 0.76 mm (1-D models) ca. ≥ 0.13 mm (2-D model) |
| Operating duration | up to 60 000 scans with fully charged battery |
| Indicators | 2 x LED (operating state) beeper/buzzer (can be switched off) |
| Battery type | lithium ion 3.6 V, smaller 3000 mAh |
| Current consumption | 330 mA standby: 80 ... 130 mA peak: 500 mA |
| Interface type | Bluetooth v4.0 EDR , Class 1 |
| Transmitter frequency | 2.4 ... 2.4835 GHz (ISM band) |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 | Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 |
| Explosion protection | Explosion protection |
| Directive 2014/34/EUEN 60079-0:2018 EN 60079-11:2012 | Directive 2014/34/EUEN 60079-0:2018 EN 60079-11:2012 |
| Radio and telecommunication terminal equipment | Radio and telecommunication terminal equipment |
| Directive 2014/53/EUEN 300328 V2.1.1:2016 , EN 301489-1 V2.2.0:2017 , EN 301489-17 V3.2.0:2017 | Directive 2014/53/EUEN 300328 V2.1.1:2016 , EN 301489-1 V2.2.0:2017 , EN 301489-17 V3.2.0:2017 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN 50581:2012 | Directive 2011/65/EU (RoHS)EN 50581:2012 |
| Directive 2014/30/EU | EN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011 |
| Directive 2014/34/EU | EN 60079-0:2018 EN 60079-11:2012 |
| Directive 2014/53/EU | EN 300328 V2.1.1:2016 , EN 301489-1 V2.2.0:2017 , EN 301489-17 V3.2.0:2017 |
| Directive 2011/65/EU (RoHS) | EN 50581:2012 |
| Supplementary standard conformity | EN 60950-1:2006+A1:2010+A2:2013+A11:2009+A12:2011 |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | 95 % non-condensing |
| Impact resistance | 50 fall tests from 2 m height onto concrete |
| Degree of protection | IP65 |
| Mass | approx. 220 g |
| Dimensions | (1-D model) 104 mm x 185 mm x 76 mm (2-D model) 104 mm x 185 mm x 76 mm |
| EU-type examination certificate | IBExU19ATEXB016XIECEx IBE 19.0026X |
| Marking II 3G Ex ic IIB T4 Gc[exsign] II 3D Ex ic IIIC T135°C Dc | Marking II 3G Ex ic IIB T4 Gc[exsign] II 3D Ex ic IIIC T135°C Dc |
| Marking | II 3G Ex ic IIB T4 Gc[exsign] II 3D Ex ic IIIC T135°C Dc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
