TECHNICAL DATA
规格参数
Supply
| Connection | loop powered |
|---|---|
| Control elements | slide switches |
| Configuration | via slide switches |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Degree of protection | IP20 |
| Mass | approx. 70 g |
| Dimensions | 40 x 130 x 25 mm (1.6 x 5.1 x 1 inch) |
| Height130 mmWidth40 mmLength25 mm | Height130 mmWidth40 mmLength25 mm |

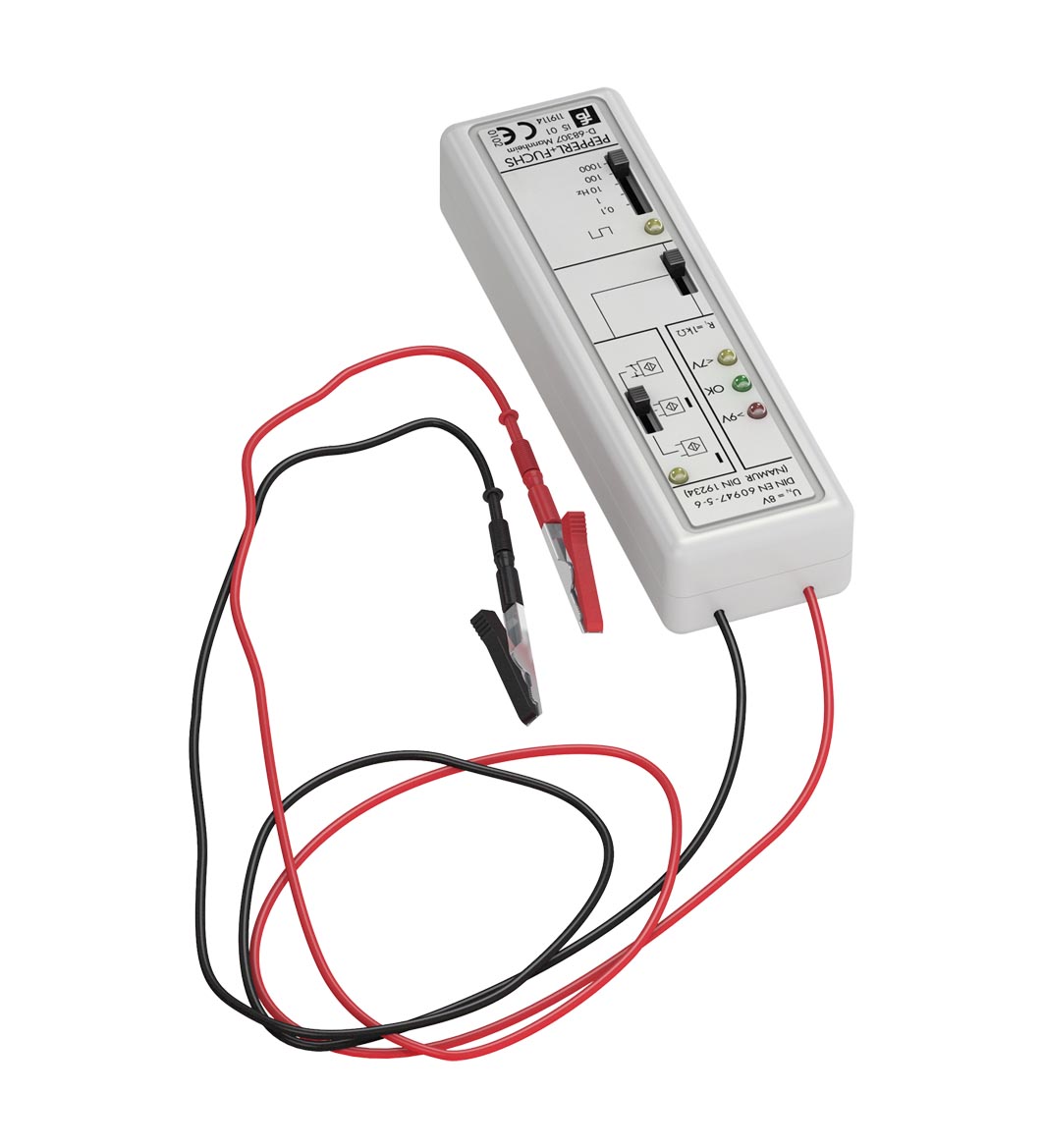

| Construction type | gray ABS handheld housing |
| Height | 130 mm |
| Width | 40 mm |
| Length | 25 mm |
| EU-type examination certificate | DMT 02 ATEX E 008 |
| Marking II 1G EEx ia IIB T4VoltageUi16 V DCCurrentIi55 mAPowerPi245 mW | Marking II 1G EEx ia IIB T4VoltageUi16 V DCCurrentIi55 mAPowerPi245 mW |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 | Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 |
| Marking | II 1G EEx ia IIB T4 |
| Voltage | 16 V DC |
| Current | 55 mA |
| Power | 245 mW |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-11:2012 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
