TECHNICAL DATA
规格参数
General specifications
| Number of pins | 3 |
|---|---|
| Core cross section | max. 2.5 mm2 |
| Material | Material |
| Colorblack | Colorblack |
| Mass | approx. 5 g |

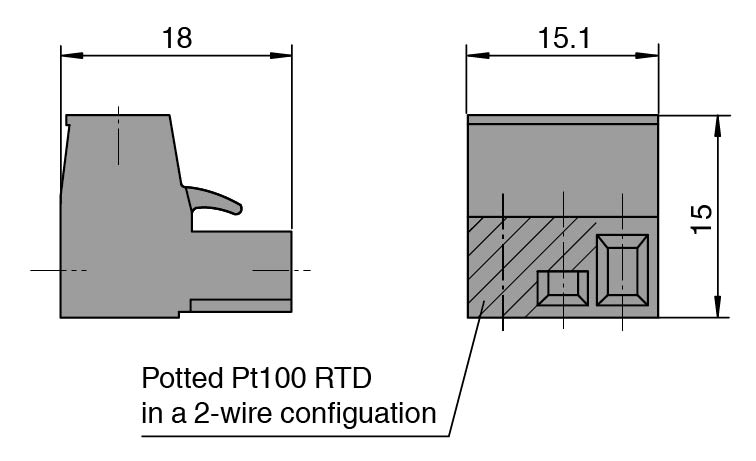

| Dimensions | 15.1 x 15 x 18 mm (0.6 x 0.6 x 0.7 inch) |

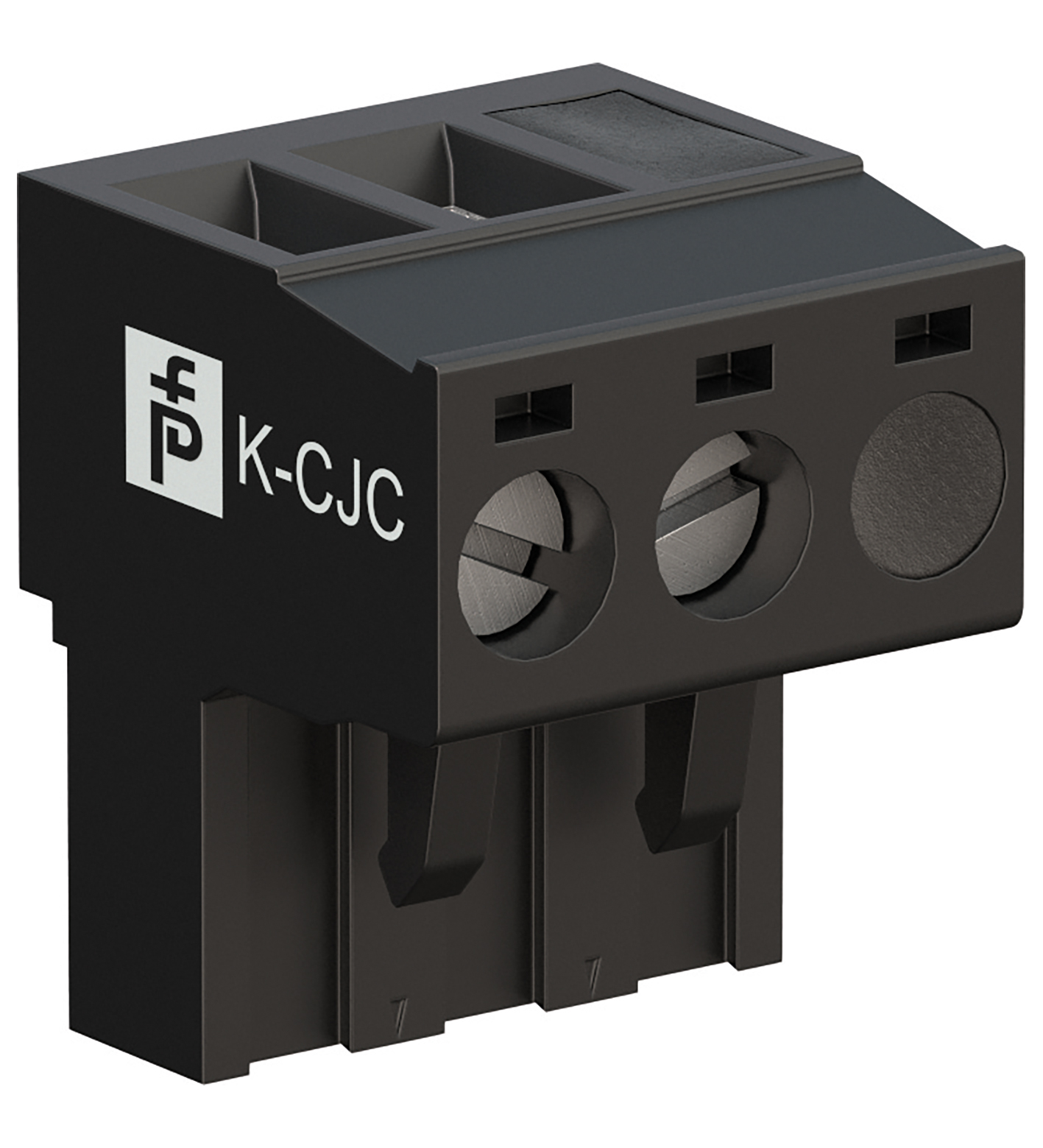

| Construction type | screw terminal with integrated Pt100 resistance thermometer , removable |
| Structure | single-row |
| Color | black |
| Packing unit | 1 item(s) |
