产品数据表
Datasheet
已就绪 · 可下载下载文件
TECHNICAL DATA
规格参数
Mechanical specifications
| Connection | 3 conductors |
|---|---|
| Field sidewiring comb , blueControl sidewiring comb , greySupply2 ConductorsFault output1 Conductors | Field sidewiring comb , blueControl sidewiring comb , greySupply2 ConductorsFault output1 Conductors |
| Material | profile rail: aluminumwiring comb: plastic |
| Mass | approx. 7.3 kg |

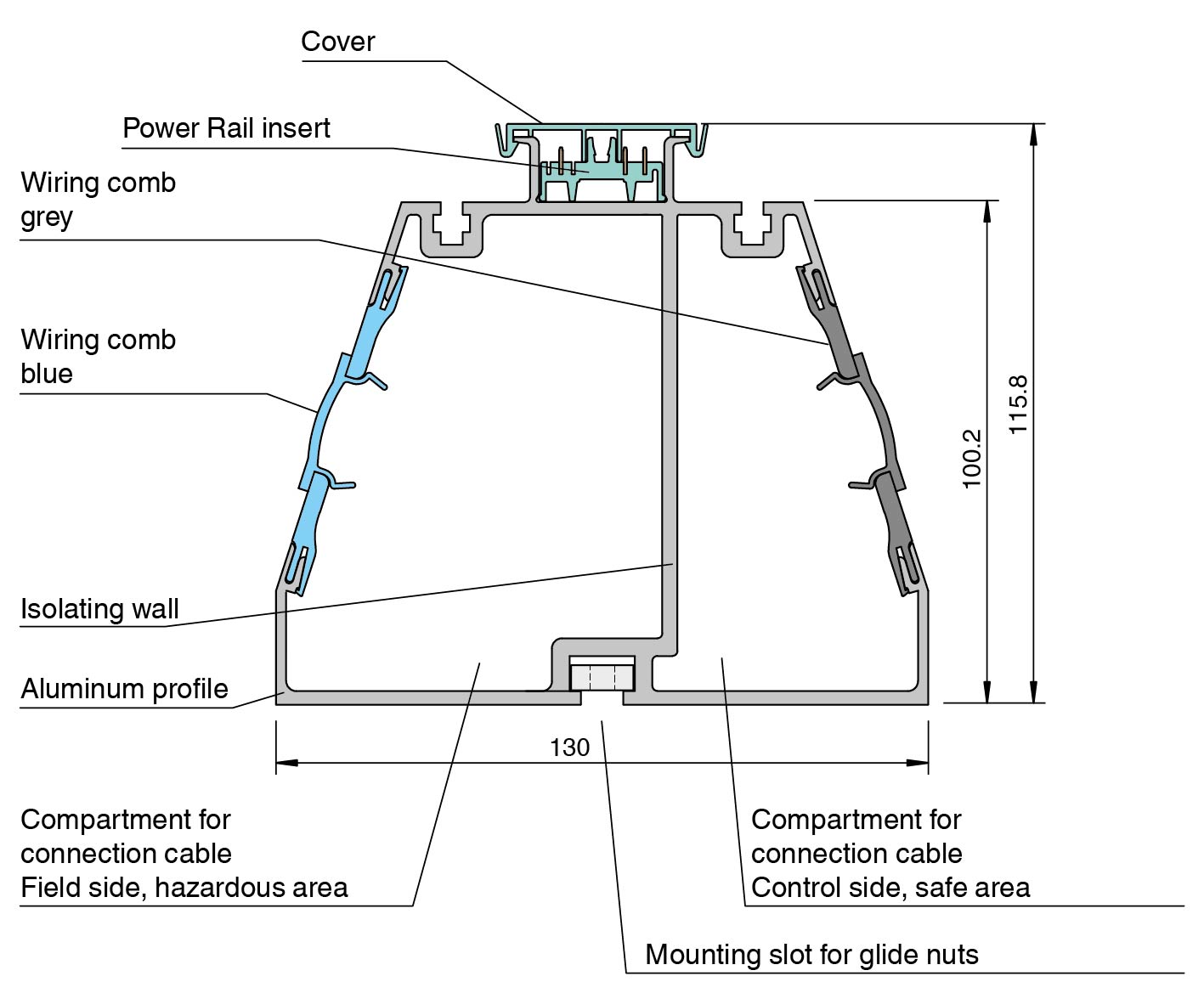

| Dimensions | 130 x 115.8 x 1800 mm (5 x 4.56 x 71 inch) |
| Height115.8 mmWidth130 mmLength1800 mm | Height115.8 mmWidth130 mmLength1800 mm |
| Field side | wiring comb , blue |
| Control side | wiring comb , grey |
| Supply | 2 Conductors |
| Fault output | 1 Conductors |
| Height | 115.8 mm |
| Width | 130 mm |
| Length | 1800 mm |
| Designation | provided accessories:- end caps UPR-E- cover- mounting aids (glide nuts and glide nut retainers) |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
