TECHNICAL DATA
规格参数
Mechanical specifications
| Connection | Connection |
|---|---|
| Field sidewiring comb , greyControl sidewiring comb , grey | Field sidewiring comb , greyControl sidewiring comb , grey |
| Material | profile rail: aluminumwiring comb: plastic |
| Mass | approx. 6.5 kg |

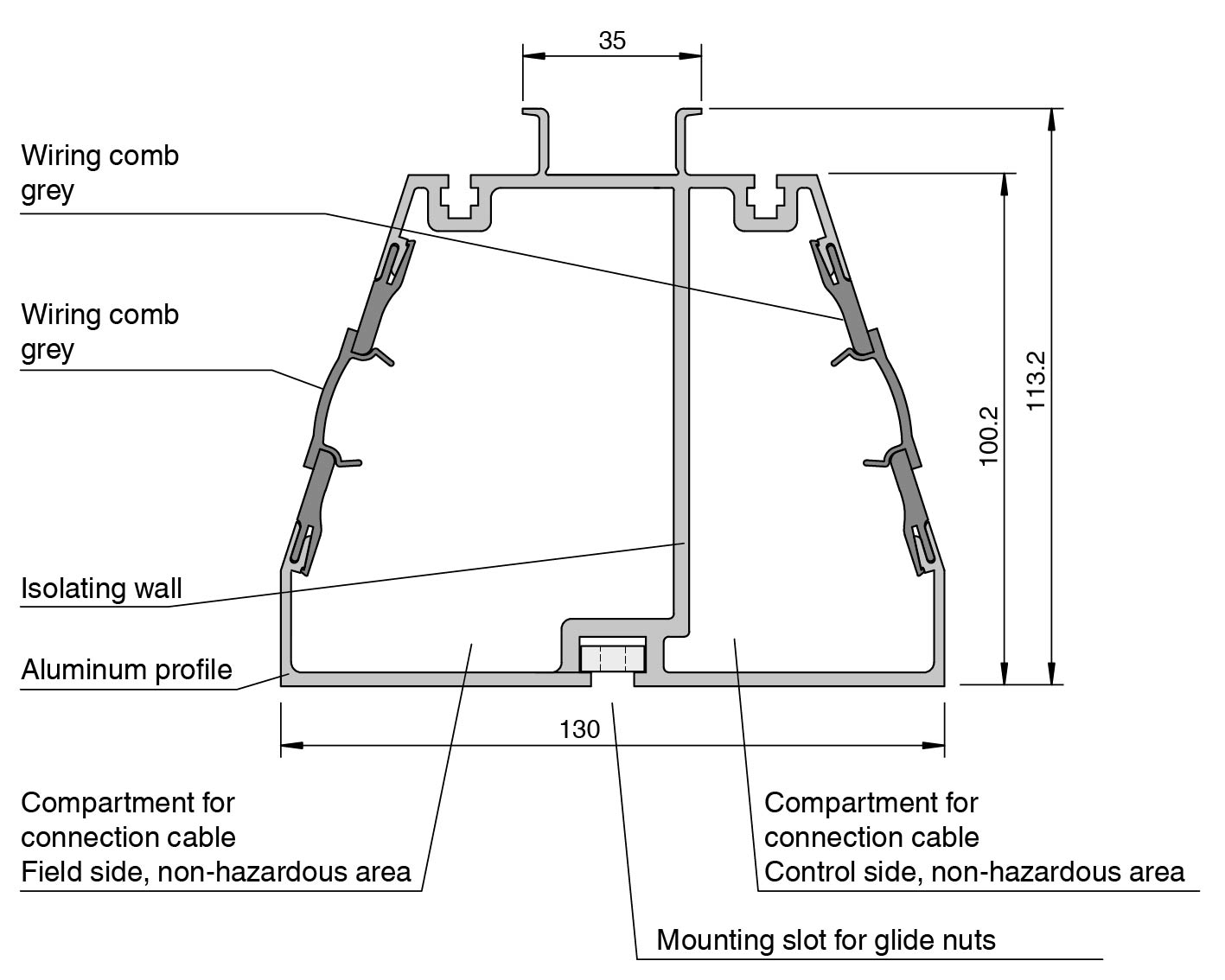

| Dimensions | 130 x 113.2 x 1800 mm (5 x 4.46 x 71 inch) |
| Height113.2 mmWidth130 mmLength1800 mm | Height113.2 mmWidth130 mmLength1800 mm |
| Field side | wiring comb , grey |
| Control side | wiring comb , grey |
| Height | 113.2 mm |
| Width | 130 mm |
| Length | 1800 mm |
| Designation | provided accessories: mounting aids (glide nuts and glide nut retainers) |
