TECHNICAL DATA
规格参数
Mechanical specifications
| Material | Polyamide PA 66 |
|---|---|
| Mass | approx. 30 g |

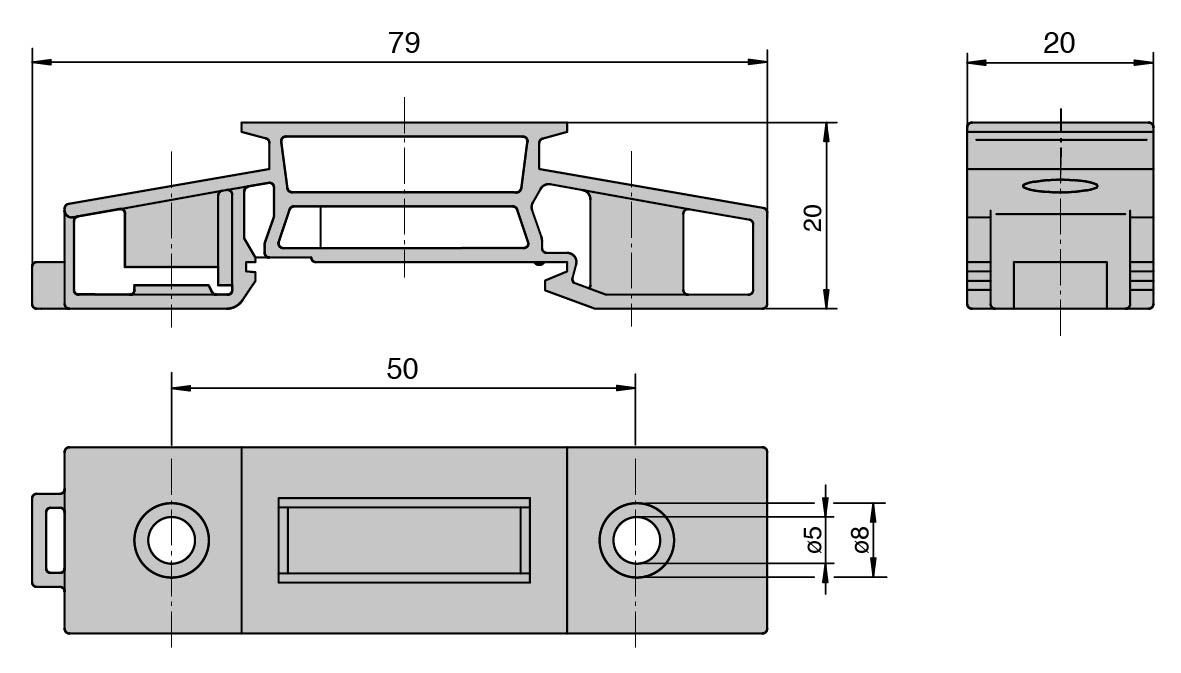

| Dimensions | 20 x 20 x 79 mm (0.8 x 0.8 x 3.1 inch) |
| Height20 mmWidth20 mmLength79 mm | Height20 mmWidth20 mmLength79 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Height | 20 mm |
| Width | 20 mm |
| Length | 79 mm |
