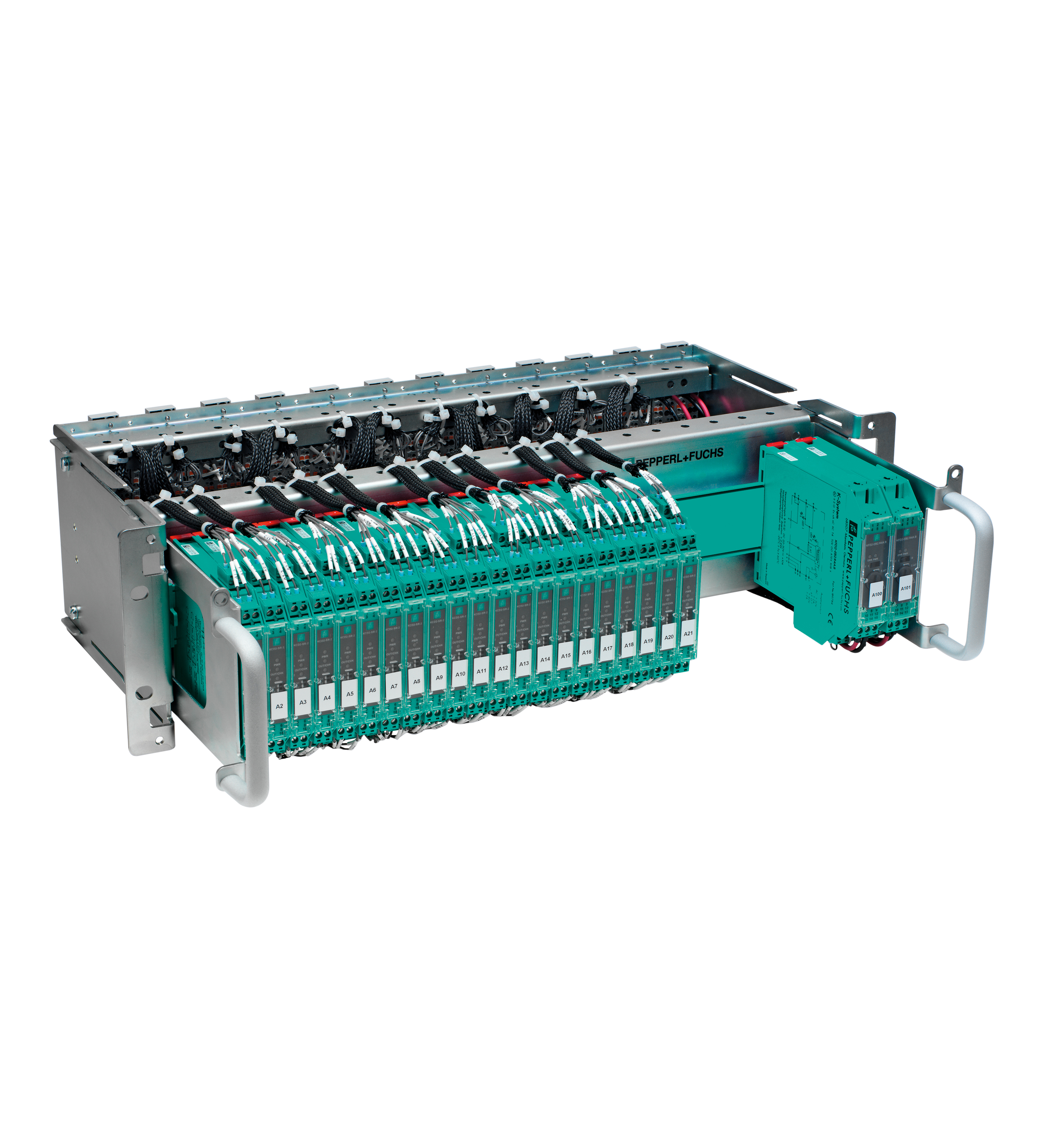

TECHNICAL DATA
规格参数
Slots
| Supply | max. 2 , see section application |
|---|---|
| Isolators | max. 33 , see section application |
| Connection | isolator power supply via marshalling patchboards or Power Rail |
| Nominal voltage | 24 V DC , in consideration of rated voltage of used isolators |
| Fusing | max. 4 A , in consideration of rated voltage of used isolators |
| Redundancy | redudnancy possible, depends on the used power feed module |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61439-1:2011 (J.9.4.2 b) , EN 61439-2:2011 | Directive 2014/30/EUEN 61439-1:2011 (J.9.4.2 b) , EN 61439-2:2011 |
| RoHS | RoHS |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS)EN IEC 63000:2018 |
| Directive 2014/30/EU | EN 61439-1:2011 (J.9.4.2 b) , EN 61439-2:2011 |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Connection | Connection |
| Field sidemarshalling patchboardsControl sidemarshalling patchboardsSupplymarshalling patchboards or Power Rail | Field sidemarshalling patchboardsControl sidemarshalling patchboardsSupplymarshalling patchboards or Power Rail |
| Core cross section | field side: max. 2.5 mm2 control side: max. 2.5 mm2 internal signal wiring: 0.25 mm2 supply: max. 1.5 mm2 |
| Material | Material |
| Housinggalvanized steelSurfacegalvanized , vibratory finishing | Housinggalvanized steelSurfacegalvanized , vibratory finishing |
| Mass | approx. 4 kg , without modules |

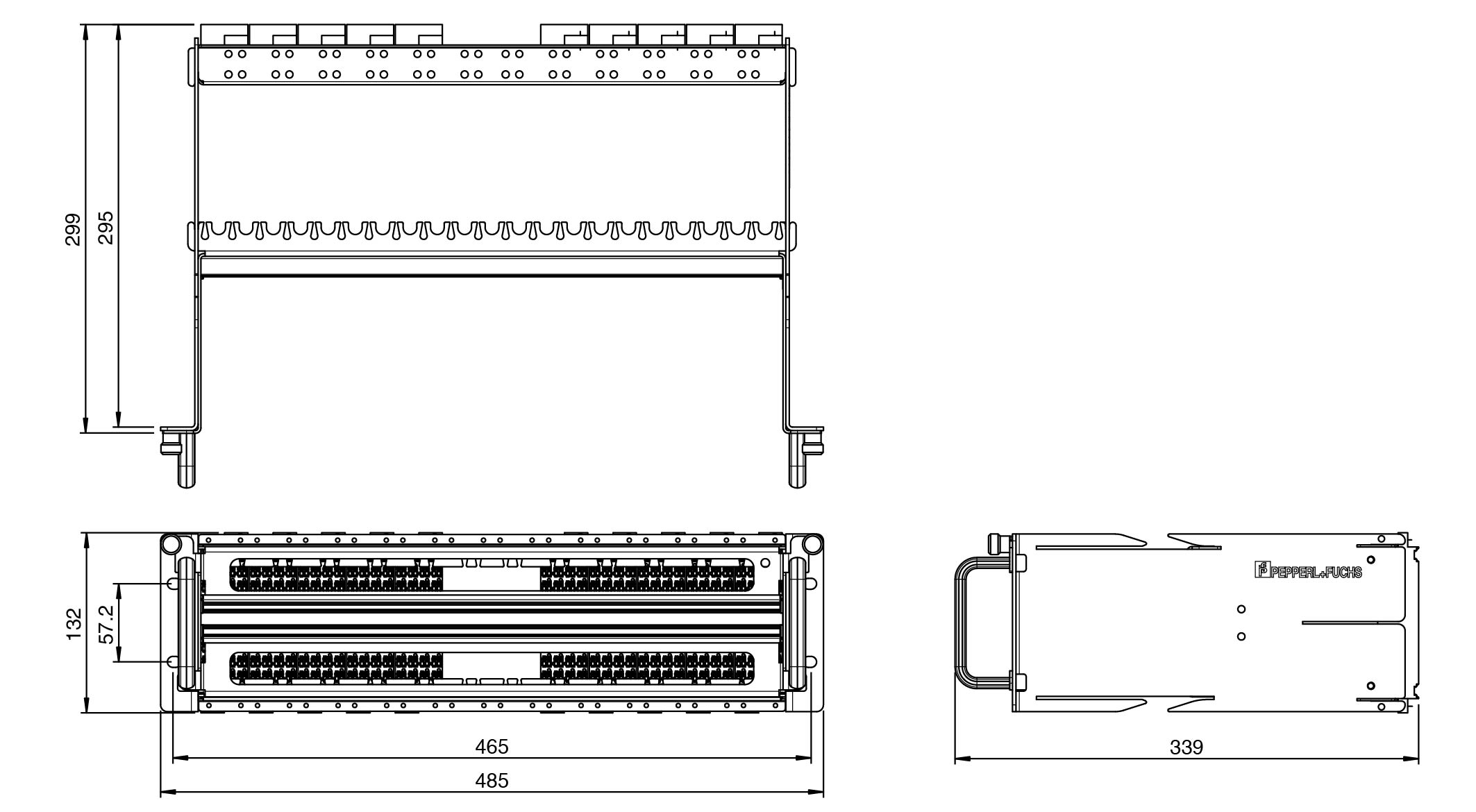

| Dimensions | 485 mm x 132 mm x 339 mm (W x H x D) |
| Height132 mmWidth485 mmDepth339 mm | Height132 mmWidth485 mmDepth339 mm |
| Mounting | slotted hole 8 x 10 mm |
| Grounding | via front fastening M8 , via lateral fastening on both sides M5 |
| Field side | marshalling patchboards |
| Control side | marshalling patchboards |
| Supply | marshalling patchboards or Power Rail |
| Housing | galvanized steel |
| Surface | galvanized , vibratory finishing |
| Height | 132 mm |
| Width | 485 mm |
| Depth | 339 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
